DPAN02A-05 DC/DC converter 9-18V:+/-5V 200mA 2W, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€8.21*
|
| To 99 |
€7.94*
|
| From 100 |
€7.53*
|
Available, delivery time: 1-3 days
| Product number: | 103900 |
|---|---|
| Manufacturer number: | DPAN02A-05 |
| EAN | 4021087046466 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

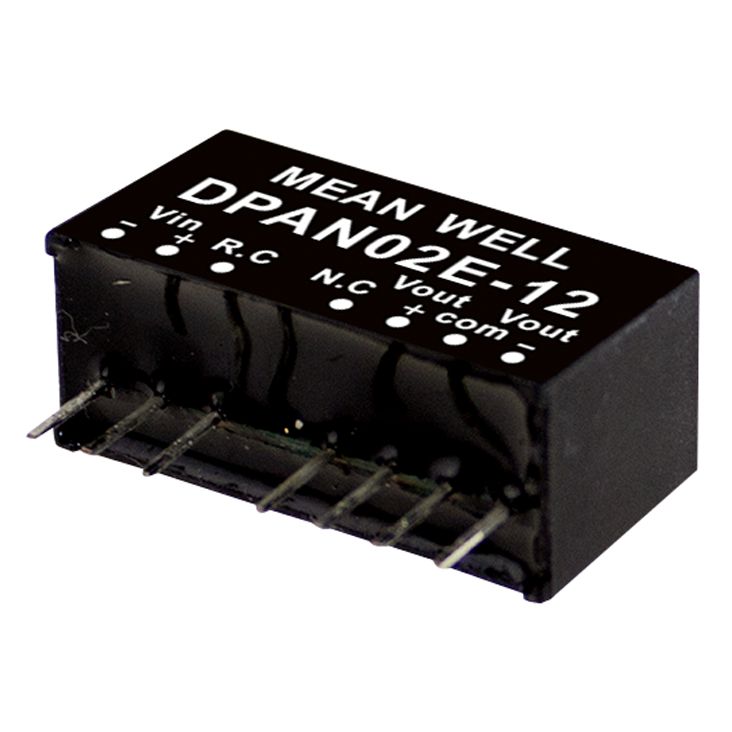

MEAN WELL DPAN02 DC/DC Converter Series Description:
The DPAN02 Series DC-DC converters are isolated and regulated 2W module DC-DC converters with a SIP8 case and industry standard pinout. They have an input voltage range of 2:1 and are suitable for direct PCB mounting. The operating temperature range is -40 ~ +90°C and there is no minimum load required. The remote ON/OFF control and isolation input/output 1500V DC are features of this product. Protection against short circuit (continuous) and overload is included, as well as compliance with EMC standards EN55032 Class A. These DC-DC converters have a high efficiency of up to 85%.MEAN WELL DPAN02 DC/DC Converter Series Features:
- SIP8 case with industry standard pinout.
- Work with different input voltages (4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range)
- Suitable for direct PCB mounting
- Operating temperature range -40 ~ +90°C
- No minimum load required
- Remote ON/OFF control
- Isolation input/output 1500V DC
- Protection: short circuit (continuous), overload
- EMC standards: EN55032 Class A
- High efficiency up to 85%
- Allow different output voltages (3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual output)
Technical data
| Product number: | 103900 |
|---|---|
| Size: | 21.8mm x 9.2mm x 11.1mm |
| Protection: | Short circuit protection SCP |
| Weight: | 0.0048kg |
| Installation: | Through Hole Technology / Durchsteckmontage (THT) |
| Number of Outputs: | 2 |
| Efficiency: | 79% |
| Output Current: | 0...200mA |
| Output Voltage: | 5V DC |
| Power: | 2W |
| Power Supply Characteristics: | Impulse |
| Series: | DPAN02 |
| Size: | 21.8mm x 9.2mm x 11.1mm |
| Weight: | 0.005kg |
Downloads
| Data Sheet: | meanwell-span02dpan02-spec-data-sheet1.pdf |
|---|
