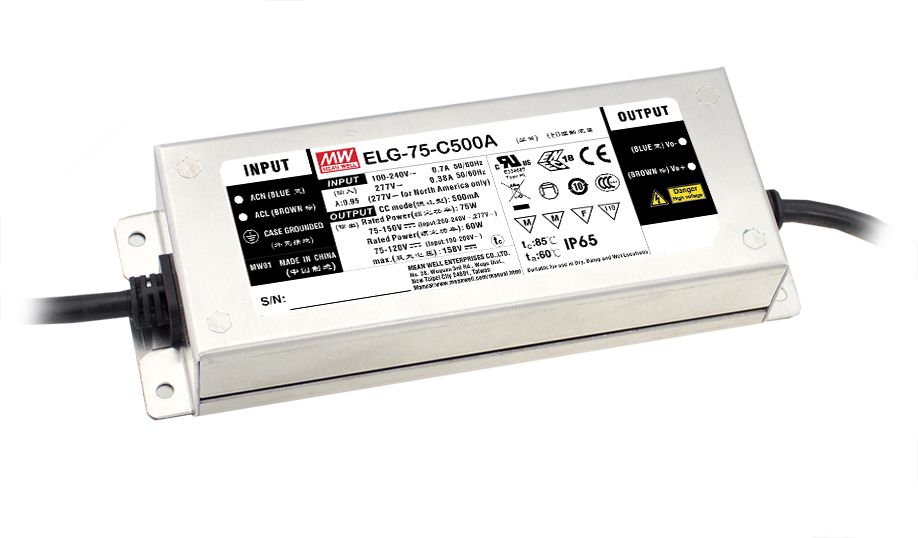

ELG-75-C500B-3Y Led driver, IP67 75W, 75-150V, 500mA CC dimmable + PE, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€31.70*
|
| To 99 |
€31.18*
|
| From 100 |
€30.14*
|
Available, delivery time: 1-3 days
| Product number: | 101559 |
|---|---|
| Manufacturer number: | ELG-75-C500B-3Y |
| EAN | 4021087037525 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL ELG-75-C LED Driver Series Description:
The ELG-75-C series consists of 75W AC/DC LED drivers with a constant current output. The ELG-75-C series is suitable for 100~305VAC operation and offers models with various output currents between 350mA and 1400mA. The models offer high efficiency of up to 90% and can operate in a temperature range of -40°C ~ +85°C thanks to fanless cooling by free air convection. Thanks to the metal housing and IP67/65 protection, the series is suitable for both indoor and outdoor applications.
MEAN WELL ELG-75-C LED Driver Series Features:
- Constant current output
- Independent power supply
- Metal housing with functional grounding
- Wide range input
- IP67/65 certification for indoor or outdoor installations
- Power consumption without load / standby <0.5W
- -overload protection by current limiting, auto recovery
- protected against short circuit, overload, overvoltage, overtemperature
- Very long lifetime > 50000 hours
- Built-in PFC circuit
- Suitable for LED lighting applications
- SELV Compliant
- Safety standards: EN61347-1, EN61347-2-13 and others
- EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
- Complies with 6kV Surge Immunity Level
- ELG-75: IP67, voltage and current fixed, not dimmable
- ELG-75-A: IP65, output voltage and current limit adjustable via internal potentiometer on bottom of housing, not dimmable
- ELG-75-B: IP67, dimming via control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-75-AB: IP65, output voltage and current limitation adjustable via internal potentiometer on the bottom of the housing, dimming via integrated control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-75-DA: IP67, DALI interface
- ELG-75-3Y: protective conductor integrated in the primary cable
MEAN WELL ELG-75-C LED Driver Series Application Examples:
- LED street lighting
- LED building lighting
- LED hall lighting
- LED floodlighting
Notice:
Power supply for the operation of LED light sources.
For detailed technical specifications, please check the data sheet in the "downloads" section.
| Series: | MEAN WELL ELG Series |
|---|
Technical data
| Product number: | 101559 |
|---|---|
| Size: | 180mm x 63mm x 35.5mm |
| Protection: | Short circuit protection SCP, overheating OTP, overvoltage OVP |
| Weight: | 0.8kg |
| Electrical Connection Type: | 300 mm Cables PE L N |
| Number of Outputs: | 1 |
| Efficiency: | 88% |
| Sealing Class: | IP67 |
| Output Current: | 500mA |
| Output Voltage: | 75...150V DC |
| Power: | 75W |
| Power Supply Characteristics: | DC current |
| Application: | LED |
| Series: | ELG-75-C |
| Note: | Stromversorgung für den Betrieb von LED-Lichtquellen. |
| Size: | 180mm x 63mm x 35.5mm |
| Weight: | 0.8kg |
Downloads
| Data Sheet: | meanwell-elg-75-c-spec-data-sheet.pdf |
|---|
