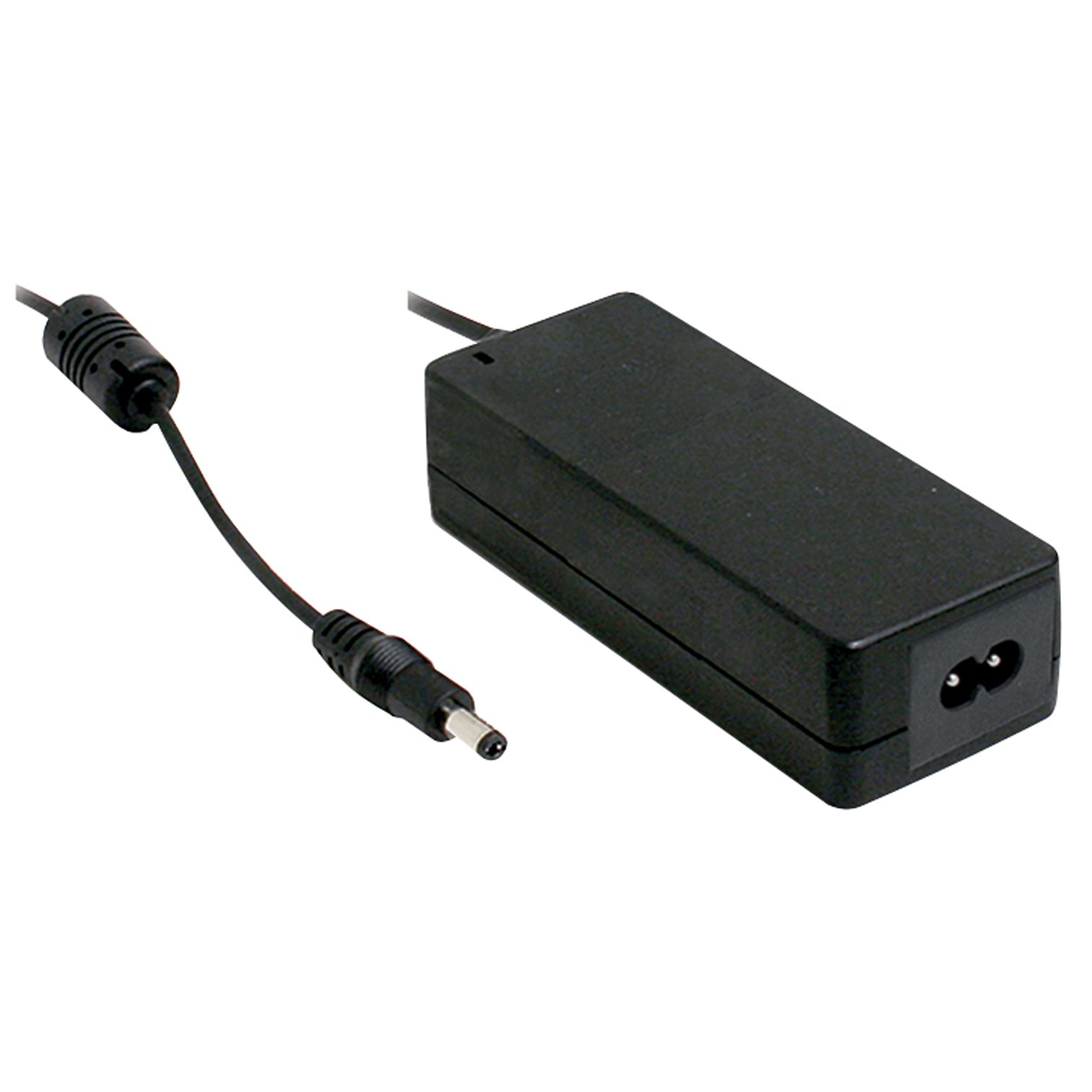

GSM60B12-P1J Switching power supply, external 60W, 12V, 5A medical,, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€21.40*
|
| To 99 |
€21.05*
|
| From 100 |
€20.35*
|
Available, delivery time: 1-3 days
| Product number: | 103564 |
|---|---|
| Manufacturer number: | GSM60B12-P1J |
| EAN | 4021087036788 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Meanwell GSM60B Desktop Power Supply Series Features:
- desktop power supply
- universal input
- protected against short circuit, overload, overvoltage
- insulation class II
- for medical applications EN60601-1 (2x MOPP level)
- 5V...9V: Energy efficiency level V
- 12V...48V: Energy efficiency level VI (DOE)
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 103564 |
|---|---|
| Size: | 125mm x 50mm x 31.5mm |
| Protection: | Short circuit protection SCP, overheating OTP, overcharging OPP, overvoltage OVP |
| Weight: | 0kg |
| Efficiency: | 88% |
| Case type: | Desktop |
| Output Voltage: | 12V DC |
| Power: | 60W |
| Power Supply Characteristics: | Constant voltage |
| Application: | medical applications |
| Series: | GSM60B |
| Size: | 125mm x 50mm x 31.5mm |
Downloads
| Data Sheet: | meanwell-gsm60b-spec-data-sheet.pdf |
|---|
