IRM-10-5 Switching power supply, module, 10W, 5V, 2A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€7.10
|
| To 99 |
€6.99
|
| From 100 |
€6.80
|
Available, delivery time: 1-3 days
| Product number: | 102908 |
|---|---|
| Manufacturer number: | IRM-10-5 |
| EAN | 4021087021432 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "IRM-10-5 Switching power supply, module, 10W, 5V, 2A, MEAN WELL"

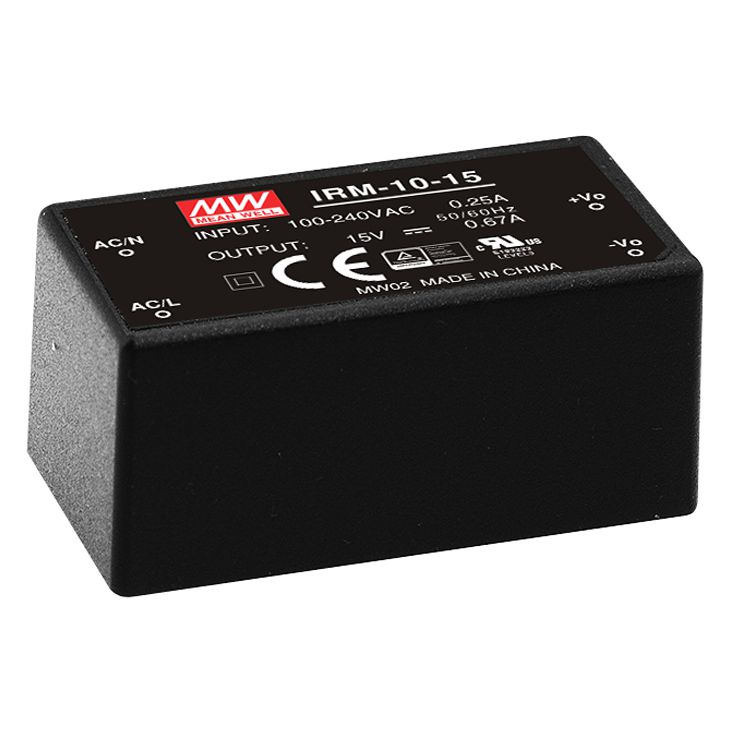

MEAN WELL IRM-10 Series Description:
IRM-10 is a 10W miniature power supply (45.7*25.4*21.5mm) with AC-DC modular design, which can be soldered on the PCB of various electronic instruments or industrial automation equipment. The power supply allows a universal input voltage range of 85~305VAC. The 94V-0 flameproof housing and fully potted silicone improve heat dissipation and meet vibration resistance requirements of up to 5G. In addition, the housing is dust and moisture proof. With high efficiency of up to 82% and ultra-low power consumption of less than 0.1W at idle, the IRM-10 series complies with the global low power consumption guideline for electronics. The entire series meets Class Il requirements (no FGpin) and features integrated EMI filter components, which in turn enable compliance with the EN55032 Class B standard. Thanks to the superior EMC characteristics of the series, the electronic terminals/products are protected from electromagnetic interference.
MEAN WELL IRM-10 Series Features:
- Enclosed design, PCB mounting
- universal input
- Power consumption at no load<0.1W
- Compact size
- protected against short circuit, overload and overtemperature
- cooling by free air convection
- insulation class II
- Safety standards: UL/EN 62368-1
- EMC standards: EN55032 Class B
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 102908 |
|---|---|
| Size: | 45.7mm x 25.4mm x 21.5mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.04kg |
| Electrical Connection Type: | THT |
| Installation: | PCB |
| Number of Outputs: | 1 |
| Efficiency: | 77% |
| Output Current: | 2A |
| Output Voltage: | 5V DC |
| Power: | 10W |
| Power Supply Characteristics: | Module |
| Series: | IRM-10 |
| Size: | 45.7mm x 25.4mm x 21.5mm |
| Weight: | 0.04kg |
Downloads
| Data Sheet: | meanwell-irm-10-spec-data-sheet.pdf |
|---|
