JOLLY LINE JL43703 DVB-T2 HD Decoder | Integrated HDMI Cable & TV USB Power
| Product number: | 700068 |
|---|---|
| Manufacturer number: | JL43703 |
| EAN | 8023389760725 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Produkt-Features
- Future-Proof DVB-T2 Reception: Receives all free-to-air HD channels thanks to the latest H.265 HEVC 10-Bit standard.

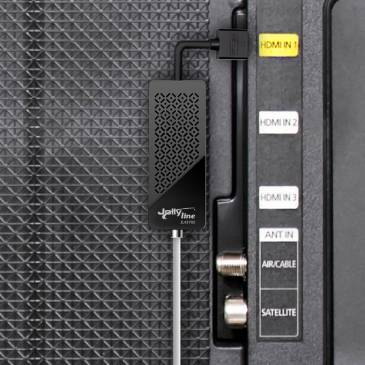

- Invisible Installation: Ultra-compact design with an integrated HDMI cable for direct and hidden mounting behind the television.
- Powered by TV's USB: No additional power adapter needed – the decoder is powered directly from a 5V USB port on your TV.
- 2-in-1 Universal Remote: Control both the decoder and the basic functions of your TV with a single, learnable remote control.
- USB Media Player: Play movies, pictures, and music directly from a USB stick or use the port for software updates.

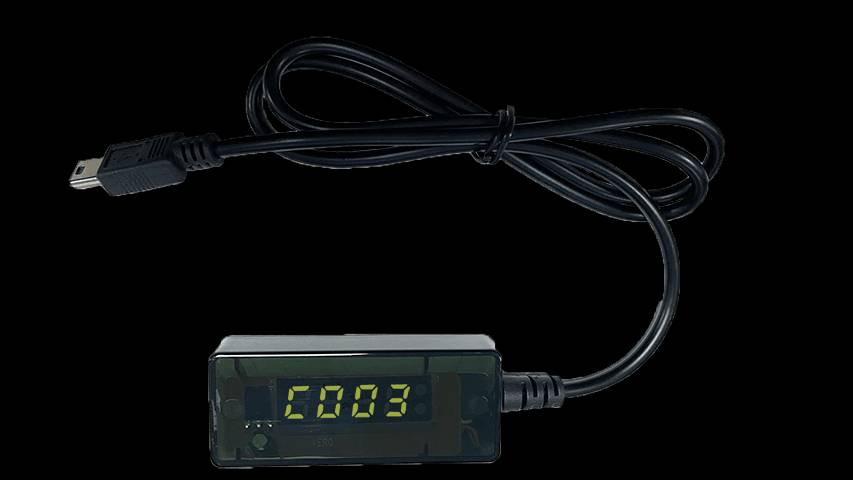

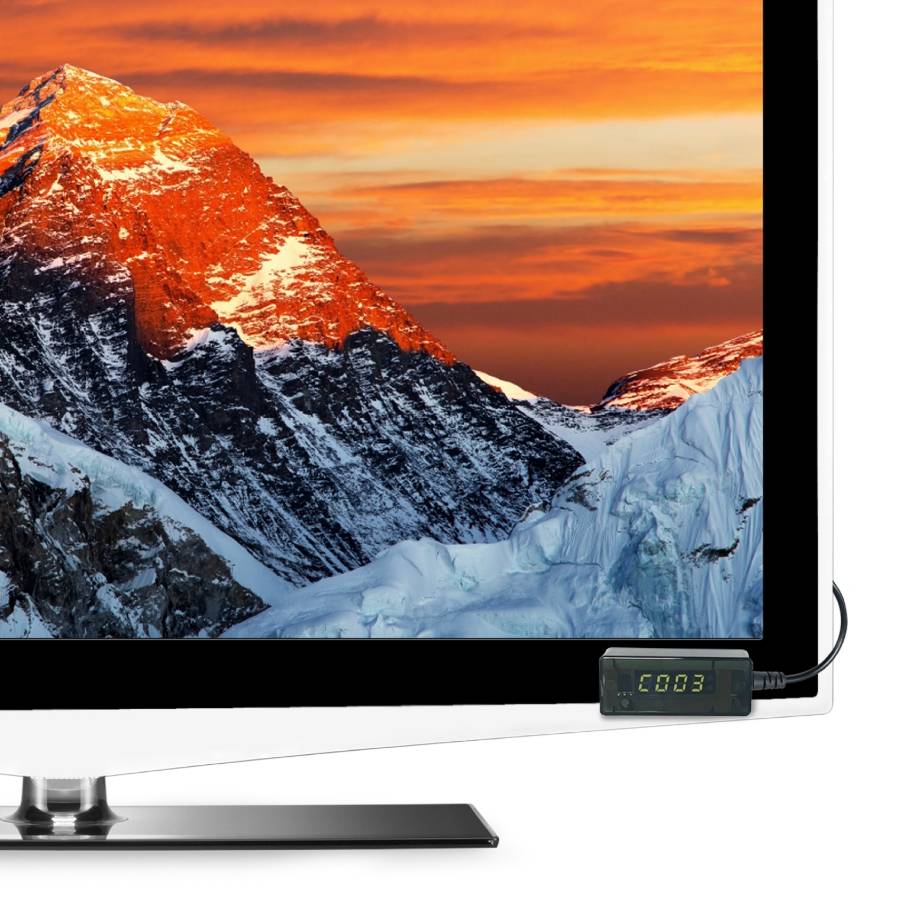

- External Display & IR Receiver: Maintain full control even with a hidden installation and see the current channel on the external display.
- Dolby Audio Quality: Enjoy first-class sound thanks to support for Dolby Digital Plus.
Transform Your TV into an HD Marvel
The Smartest Solution for Modern Television
Breathe new life into your trusted television! With the JOLLY LINE JL43703 DVB-T2 HD Decoder, you can upgrade any TV with an HDMI port to receive crystal-clear terrestrial television. Say goodbye to cable clutter and visible devices – this decoder is designed to disappear invisibly behind your TV, thanks to its integrated HDMI cable and the included stretch adhesive mount. Power is supplied simply via a free USB port on your TV, making an extra power adapter obsolete. As a fully EU-compliant and certified product for the European market, the JL43703 guarantees maximum safety, compatibility, and future-proof technology.
Technical Specifications in Detail
| Model | JL43703 |
| Brand | JOLLY LINE |
| Compatibility | DVB-T/T2, H.265 HEVC 10 Bit Standard, Free to Air |
| Video Coding | HEVC H.265 10Bit@60FPS, MPEG-2, MPEG-4, H.264 |
| Audio Coding | MPEG-1 Layer I/II, MPEG-2 Layer I/II, AAC, AAC+/HE-AAC/AC3, Dolby Plus |
| Audio Mode | Mono / Stereo |
| Number of Channels | 400 |
| Functions | LCN, TV Guide, Favorites List, Teletext, Subtitles, Parental Control |
| Inputs | Antenna (IEC female) |
| Outputs | HDMI (integrated cable) |
| USB Port | Yes, for multimedia player and software updates |
| Display | Yes, external, freely positionable |

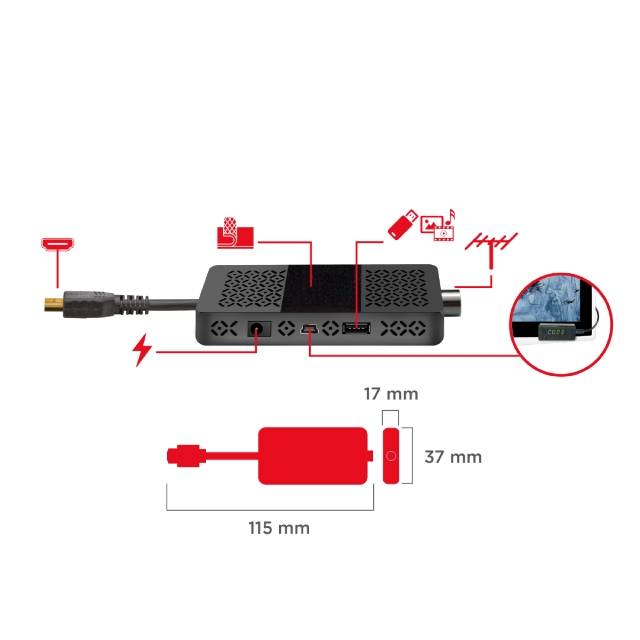

| Dimensions | 115 x 37 x 17 mm |
| Power Supply | 5.0V DC, 0.5A (via USB) |
| Material | Plastic |
| Remote Control | 2-in-1 with learning function (Decoder + TV) |
| Menu Languages | Italian, English, French, German, Spanish, Portuguese, Greek |
| Package Contents | Decoder, programmable remote, USB power cable, 2x AAA batteries, external display, stretch adhesive mount |
Frequently Asked Questions (FAQ)
Is the decoder compatible with the new DVB-T2 standard in Europe?
Yes, it supports the H.265 HEVC 10-Bit standard, making it fully compatible and future-proof for receiving all free-to-air DVB-T2 HD channels across Europe.
How is the decoder powered?
Simply via a free 5V USB port on your television. A separate power adapter is not required, which makes for a clean and straightforward installation.
Can I control my TV with the included remote?
Yes, the supplied 2-in-1 remote control features a convenient learning function, allowing you to program the most important buttons of your TV's remote (e.g., power, volume, source).
Can I play my own movies or pictures?
Yes, the USB port serves not only for software updates but also as a full-fledged media player. Just connect a USB stick to enjoy your videos, photos, and music on the big screen.
| Product number: | 700068 |
|---|

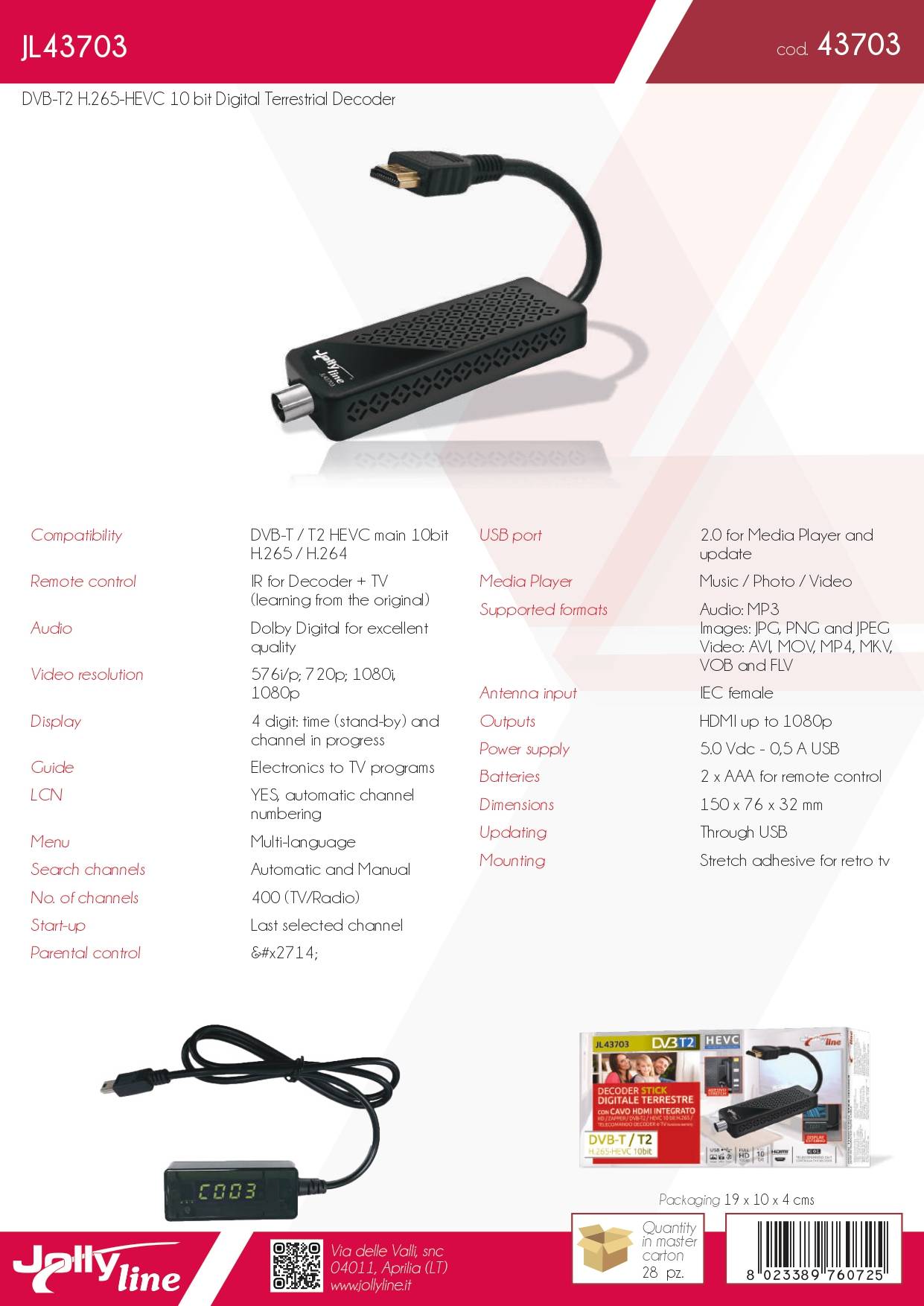

| Flyer: | jl43703-datenblatt-datasheet.pdf |
|---|---|
| Manual: | jl43703-anleitung-deutsch.pdf |
| Other documents: | English Manual JL43703.pdf |
