KB 2 rot / red
€1.86
Currently not available (delivery time on request)
| Product number: | 201642 |
|---|---|
| Manufacturer number: | 930584101 |
| EAN | 4250260211999 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "KB 2 rot / red"
KB 2 rot / red (930584101)

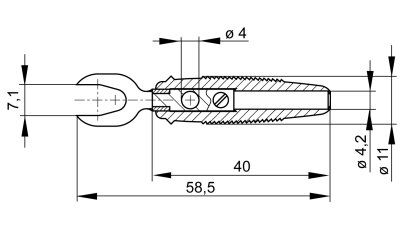

Cable lug with shatter-proof, flexible insulated sleeve with 4 mm diameter transverse hole. Screw connection up to a maximum of 1.5 mm². For connection to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.
Technical data |
|
| connection | screw terminal |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
30 A |
| material plug | brass, nickel plated |
| housing material | PVC-P |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| Product number: | 201642 |
|---|
