KLEPS 1600 schwarz / black
€7.87
Available, delivery time: 1-3 days
| Product number: | 202430 |
|---|---|
| Manufacturer number: | 975106100 |
| EAN | 4250260225996 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "KLEPS 1600 schwarz / black"
KLEPS 1600 schwarz / black (975106100)

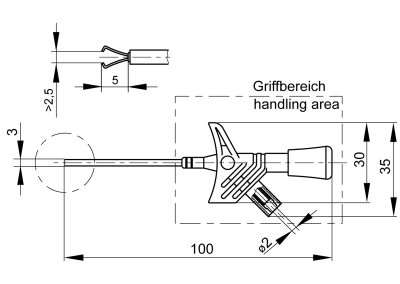

Safety clamp-type test probe with rotating grip jaws and flexible shaft. Wires and pins up to a maximum diameter of 3 mm can be clamped thanks to the special form of the grip jaws. Ø 2 mm sockets-connection of brass gold-plated.
Technical data |
|
| connection | unsprung socket 2 mm |
| rated voltage | AC/DC 1000 V |
| measurement cat. acc. to IEC 61010 | CAT II |
| rated current (consider derating curve) |
3 A |
| material socket | brass, gold plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| clamp type | rotating grip jaws, tin plated |
| clamping range | 3 mm |
| Product number: | 202430 |
|---|
