KUN 10 rot / red
€1.26
Currently not available (delivery time on request)
| Product number: | 201600 |
|---|---|
| Manufacturer number: | 930189101 |
| EAN | 4250260205707 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "KUN 10 rot / red"
KUN 10 rot / red (930189101)

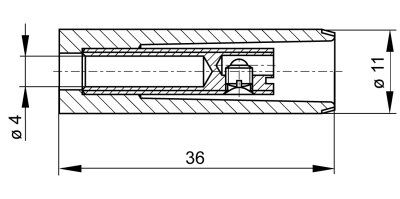

Insulated coupling for a 4 mm diameter plug and screw connection up to cable cross-section of 1.5 mm². Tin-plated brass socket. The socket is screwed into the insulated handle.
Technical data |
|
| connection | screw terminal |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
16 A |
| material socket | brass, tin plated |
| housing material | PS |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| Product number: | 201600 |
|---|
