KUN 30 schwarz / black
| Product number: | 201694 |
|---|---|
| Manufacturer number: | 931804100 |
| EAN | 4250260206254 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
KUN 30 schwarz / black (931804100)

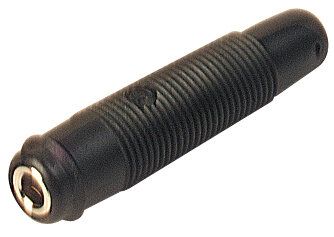

Shatter-proof, flexible, insulated coupling for a 4 mm diameter plug and solder connection up to a cable cross-section of 2.5 mm². Nickel-plated brass socket.
Technical data |
|
| connection | solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
16 A |
| material socket | brass, nickel plated |
| housing material | PVC-P |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
Technical data
| Product number: | 201694 |
|---|
