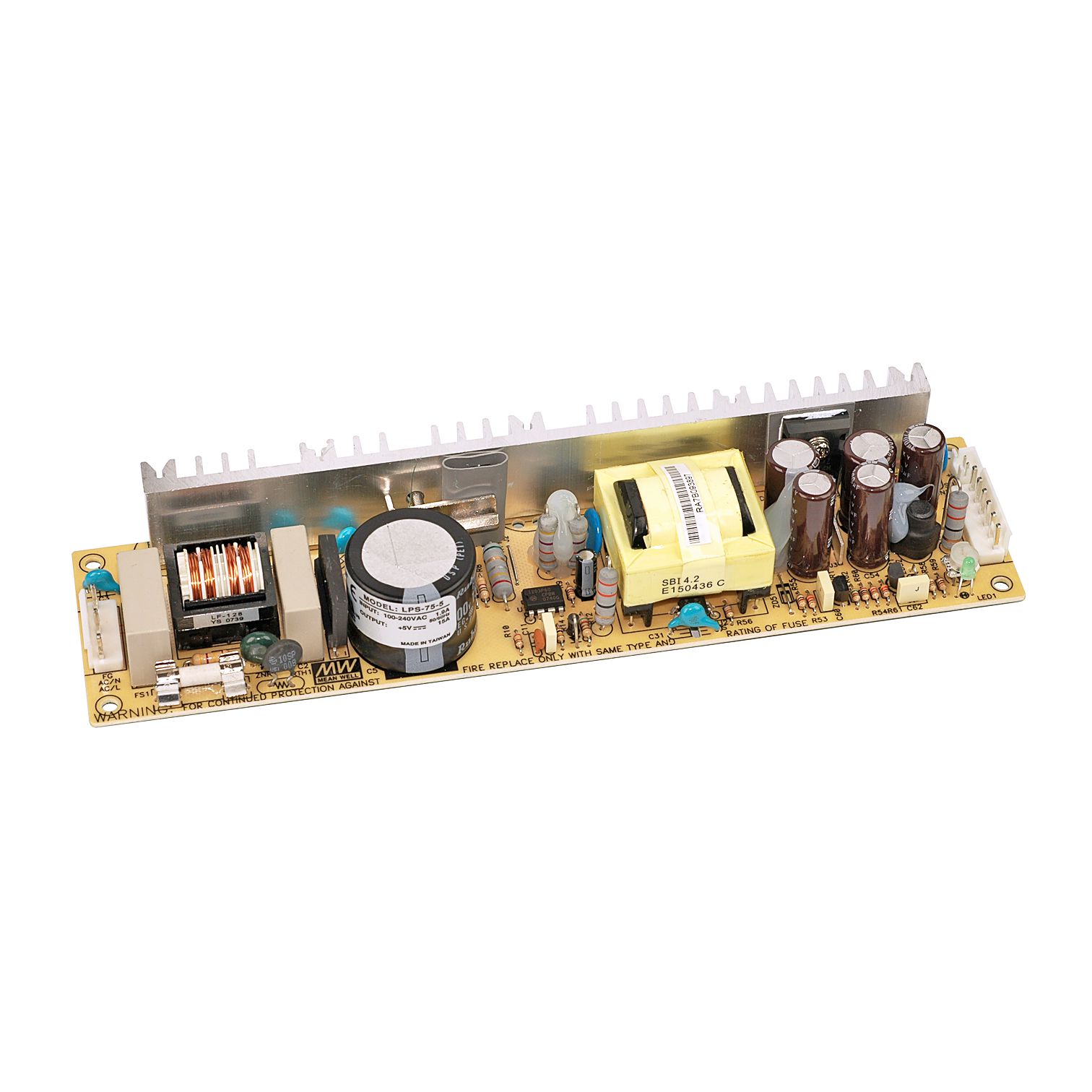

LPS-75-12 Switching power supply, open-frame, 74W, 12V, 6,2A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€19.00*
|
| To 99 |
€18.69*
|
| From 100 |
€18.06*
|
Available, delivery time: 1-3 days
| Product number: | 103089 |
|---|---|
| Manufacturer number: | LPS-75-12 |
| EAN | 4021087021081 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL LPS-75 Open-Frame Power Supply Series Features
- open-frame design
- male terminals for nylon crimp connectors
- universal input
- overload protection by shutdown, auto recovery
- protected against short circuit, overload, overvoltage
- output voltage switching on and off via remote signal
- Peak load function
Notice
The power supply is designed for installation in final equipment.
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 103089 |
|---|---|
| Size: | 222mm x 55mm x 30mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.3kg |
| Electrical Connection Type: | Raster plug 3,96mm |
| Installation: | Mounting |
| Number of Outputs: | 1 |
| Efficiency: | 80% |
| Output Current: | 6.2A |
| Output Voltage Range: | 11...13.5V DC |
| Output Voltage: | 12V DC |
| Power: | 74.4W |
| Power Supply Characteristics: | open |
| Series: | LPS-75 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 222mm x 55mm x 30mm |
| Weight: | 0.3kg |
Downloads
| Data Sheet: | meanwell-lps-75-spec-data-sheet.pdf |
|---|
