MBI 1 schwarz / black
€0.87
Available, delivery time: 1-3 days
| Product number: | 201605 |
|---|---|
| Manufacturer number: | 930308100 |
| EAN | 4002044217594 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "MBI 1 schwarz / black"
MBI 1 schwarz / black (930308100)

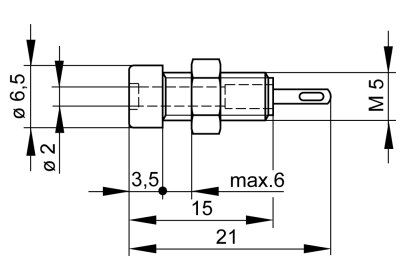

2 mm diameter miniature socket, insulated, tin-plated copper beryllium contact (spring-loaded), with solder connection. Suitable for installation in equipment chassis and switch panels up to a maximum wall thickness of 5 mm.
Technical data |
|
| connection | solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
6 A |
| material socket | contact spring: copper - beryllium |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -20 °C to +60 °C |
| Product number: | 201605 |
|---|
