MDR-20-5 DIN rail power supply, 15W, 5V, 3A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€13.70*
|
| To 99 |
€13.48*
|
| From 100 |
€13.14*
|
Available, delivery time: 1-3 days
| Product number: | 100720 |
|---|---|
| Manufacturer number: | MDR-20-5 |
| EAN | 4021087020923 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

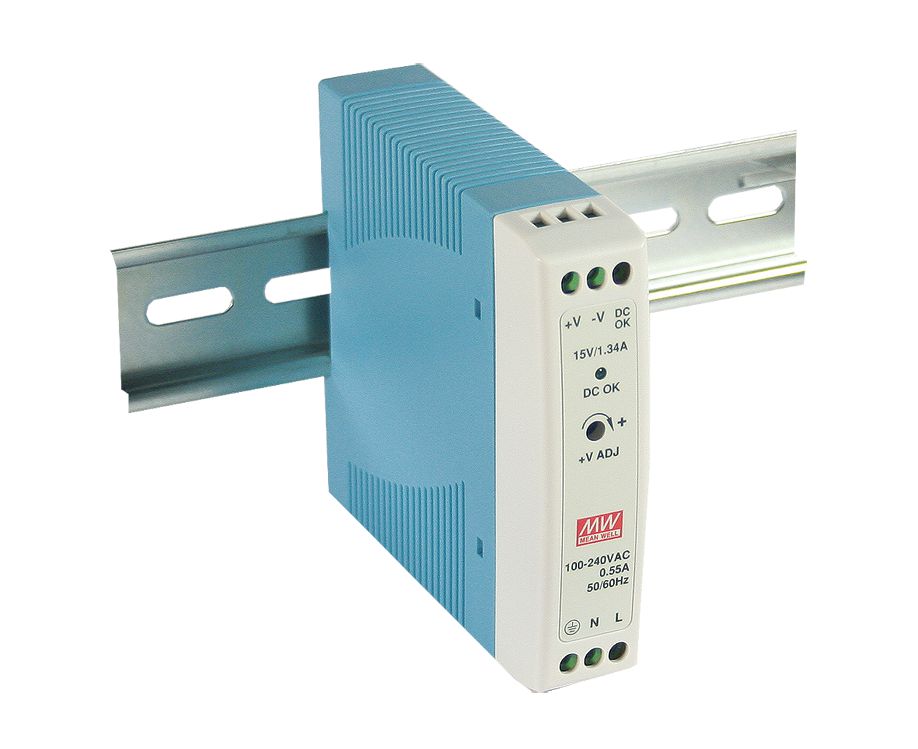

MEAN WELL MDR-20 DIN Rail Power Supply Series Description
The MDR-20 Series of DIN Rail Power Supplies from renown manufacturer MEAN WELL are the perfect solution for your power needs. They are directly DIN rail mountable and feature a closed design with touch-protected screw terminals for increased safety. They have universal input and are protected against short circuit and overvoltage. The power supplies are equipped with a LED indicator that shows if the power is on and the device is working. Due to its low no-load power, the MDR-20 series is highly efficient.MEAN WELL MDR-20 DIN Rail Power Supply Series Features
- direct DIN rail mountable
- closed design, touch-protected screw terminals
- universal input
- overload protection by current limiting, auto recovery
- protected against short circuit, overload, overvoltage
- LED indicator for power-on
- low no-load power
- DC-OK relay output
Notice
The power supply is designed for installation in final equipment.For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 100720 |
|---|---|
| Size: | 22.5mm x 90mm x 100mm |
| Protection: | Short circuit protection SCP, overheating OTP, overcharging OPP, overvoltage OVP |
| Weight: | 0.19kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | DIN |
| Number of Outputs: | 1 |
| Efficiency: | 76% |
| Output Current: | 3A |
| Output Voltage: | 5V DC |
| Power: | 15W |
| Power Supply Characteristics: | Impulse |
| Series: | MDR-20 |
| Size: | 22.5mm x 90mm x 100mm |
| Weight: | 0.19kg |
Downloads
| Data Sheet: | meanwell-mdr-20-spec-data-sheet.pdf |
|---|
