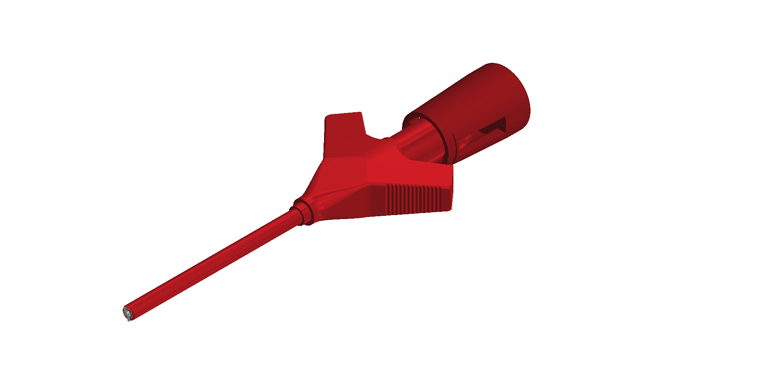

MICRO-KLEPS rot / red
| Product number: | 202400 |
|---|---|
| Manufacturer number: | 973972101 |
| EAN | 4250260210275 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MICRO-KLEPS rot / red (973972101)
Miniature clamp-type test probe with rotating grip jaws (SMD technology). The insulated shaft can be bent up to 35º. Suitable for very thin wires and densely packed contact points (1.27 mm IC spacing pitch). Connects with MKL... and MAL...
Technical data |
|
| connection | 2 x unsprung pin Ø 0.64 mm |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
2 A |
| material plug | brass, gold plated |
| housing material | PBT |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| clamp type | rotating grip jaws, tin plated |
| clamping range | 1,6 mm |
Technical data
| Product number: | 202400 |
|---|
