MLB 100/1 V rot / red
€9.63
Available, delivery time: 1-3 days
| Product number: | 202379 |
|---|---|
| Manufacturer number: | 973646101 |
| EAN | 4099891077211 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "MLB 100/1 V rot / red"
MLB 100/1 V rot / red (973646101)

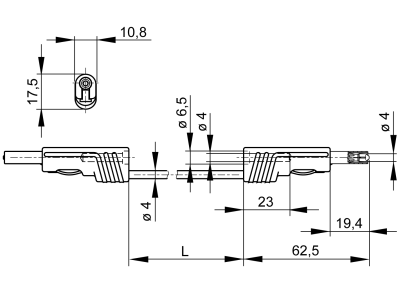

Contact protected test lead on both sides sprung plug Ø 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket Ø 4 mm to the far pluginess.
Highly flexible, double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.
Technical data |
|
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
16 A |
| material socket | contact pin: brass contact spring: copper - beryllium |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -15 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| cable length | 100 cm |
| conductor size | 1 mm² |
| cable material | PVC |
| Product number: | 202379 |
|---|
Manufacturer
Company Name
SKS Kontakttechnik GmbH
Address
Neue Schichtstraße 14, 09366 Niederdorf, Germany
Phone
+49 37296 930 300
EU Responsible Person
Company Name
SKS Kontakttechnik GmbH
Address
Neue Schichtstraße 14, 09366 Niederdorf, Germany
Phone
+49 37296 930 300
