MPB 1 rot / red
€0.71
Available, delivery time: 1-3 days
| Product number: | 201602 |
|---|---|
| Manufacturer number: | 930224101 |
| EAN | 4250260205745 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "MPB 1 rot / red"
MPB 1 rot / red (930224101)

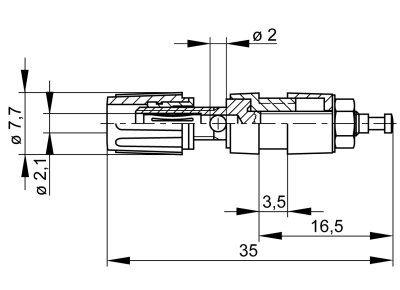

2 mm diameter miniature test socket, dimensions complying with DIN 41649. Suitable for measuring and testing printed circuits during operation. Tin-plated sprung bronze contact spring. Test socket with horizontal and vertical connections.
Technical data |
|
| connection | solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
6 A |
| material socket | contact spring: bronze |
| housing material | PC |
| temperature range acc. To IEC61010(1) | -20 °C to +60 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| Product number: | 201602 |
|---|
