MPS 1 schwarz / black
€3.33
Available, delivery time: 1-3 days
| Product number: | 202340 |
|---|---|
| Manufacturer number: | 973531100 |
| EAN | 4250260209330 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "MPS 1 schwarz / black"
MPS 1 schwarz / black (973531100)

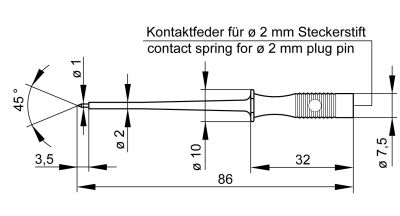

Miniature test probe for sampling very small measuring points. The nickel-plated stainless steel tip easily penetrates insulation and oxide layers. Spring-loaded 2 mm socket connection with gold-plated contact spring.
Technical data |
|
| connection | spring loaded socket 2 mm |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
1 A |
| material socket | brass, nickel plated |
| housing material | PE |
| temperature range acc. To IEC61010(1) | -25 °C to +60 °C |
| Product number: | 202340 |
|---|
