MZS 4 schwarz / black
€2.95
Currently not available (delivery time on request)
| Product number: | 202359 |
|---|---|
| Manufacturer number: | 973599100 |
| EAN | 4250260204168 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "MZS 4 schwarz / black"
MZS 4 schwarz / black (973599100)

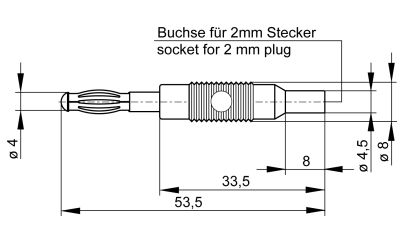

Injection-moulded adapter plug from 4 mm diameter plug to 2 mm diameter socket. This adapter plug enables the use of unsprung plugs from 2 mm system and sockets from 4 mm system.
Technical data |
|
| connection | spring loaded socket 2 mm |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
6 A |
| material plug | brass, nickel plated |
| housing material | PP |
| temperature range acc. To IEC61010(1) | -20 °C to +60 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| Product number: | 202359 |
|---|
Manufacturer
Company Name
SKS Kontakttechnik GmbH
Address
Neue Schichtstraße 14, 09366 Niederdorf, Germany
Phone
+49 37296 930 300
EU Responsible Person
Company Name
SKS Kontakttechnik GmbH
Address
Neue Schichtstraße 14, 09366 Niederdorf, Germany
Phone
+49 37296 930 300
