PKI 10 A rot / red Au
€5.10
Currently not available (delivery time on request)
| Product number: | 201505 |
|---|---|
| Manufacturer number: | 930103701 |
| EAN | 4250260216888 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "PKI 10 A rot / red Au"
PKI 10 A rot / red Au (930103701)

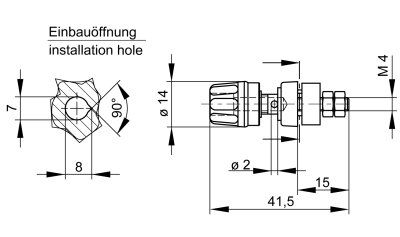

Pole terminal with claw edge and captive insulated head and insulated ring. 4 mm diameter gold -plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switchpanels with a wall thickness.
Technical data |
|
| connection | M4 thread |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
35 A |
| material socket | brass, gold plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -25 °C to +100 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| Product number: | 201505 |
|---|
