PKN 10 B rot / red
€4.73
Available, delivery time: 1-3 days
| Product number: | 201519 |
|---|---|
| Manufacturer number: | 930117101 |
| EAN | 2050001012852 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "PKN 10 B rot / red"
PKN 10 B rot / red (930117101)

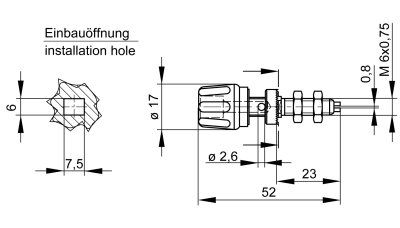

Pole terminal with claw edge and captive insulated head. 6 mm diameter nickel-plated brass threaded bolt with 2.6 mm diameter transverse hole. For non-rotating installation in equipment chassis and switchpanels.
Technical data |
|
| connection | M6 thread, solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
63 A |
| material socket | brass, nickel plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -25 °C to +100 °C |
| Product number: | 201519 |
|---|
