PKNI 10 B blau / blue
€5.12
Available, delivery time: 1-3 days
| Product number: | 201529 |
|---|---|
| Manufacturer number: | 930136102 |
| EAN | 4250260226016 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "PKNI 10 B blau / blue"
PKNI 10 B blau / blue (930136102)

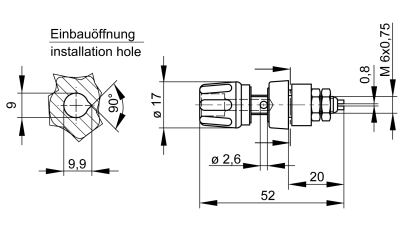

Pole terminal with claw edge, captive insulated head and insulated ring. 6 mm diameter nickel-plated brass threaded bolt with 2.6 mm diameter transverse hole. For insulated non-rotating installation in equipment chassis and switch panels up to 3.5 mm wall thickness.
Technical data |
|
| connection | M6 thread, solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
63 A |
| material socket | brass, nickel plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -25 °C to +100 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| Product number: | 201529 |
|---|
