PRUEF 2700 rot / red
€5.22
Currently not available (delivery time on request)
| Product number: | 202202 |
|---|---|
| Manufacturer number: | 972319101 |
| EAN | 4250260203901 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "PRUEF 2700 rot / red"

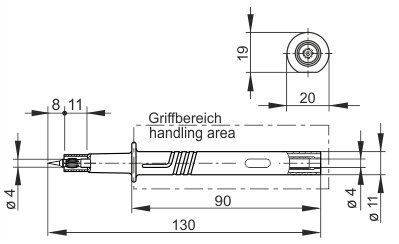

PRUEF 2700 rot / red (972319101)
Safety test probe with dual function. Tip for penetrating oxide layers and 4 mm diameter pin for insertion in sockets. 4 mm diameter brass socket connection. Connects with safety measuring leads.
Technical data |
|
| connection | unsprung socket 4 mm |
| rated voltage | AC/DC 1000 V |
| measurement cat. acc. to IEC 61010 | CAT II |
| rated current (consider derating curve) |
32 A |
| material socket | brass, nickel plated |
| housing material | PP |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
HB |
| Product number: | 202202 |
|---|
