PT-45B Switching power supply, open-frame, 43W, 5/12/-12V, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€17.40*
|
| To 99 |
€17.11*
|
| From 100 |
€16.55*
|
Available, delivery time: 1-3 days
| Product number: | 103193 |
|---|---|
| Manufacturer number: | PT-45B |
| EAN | 4021087024327 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

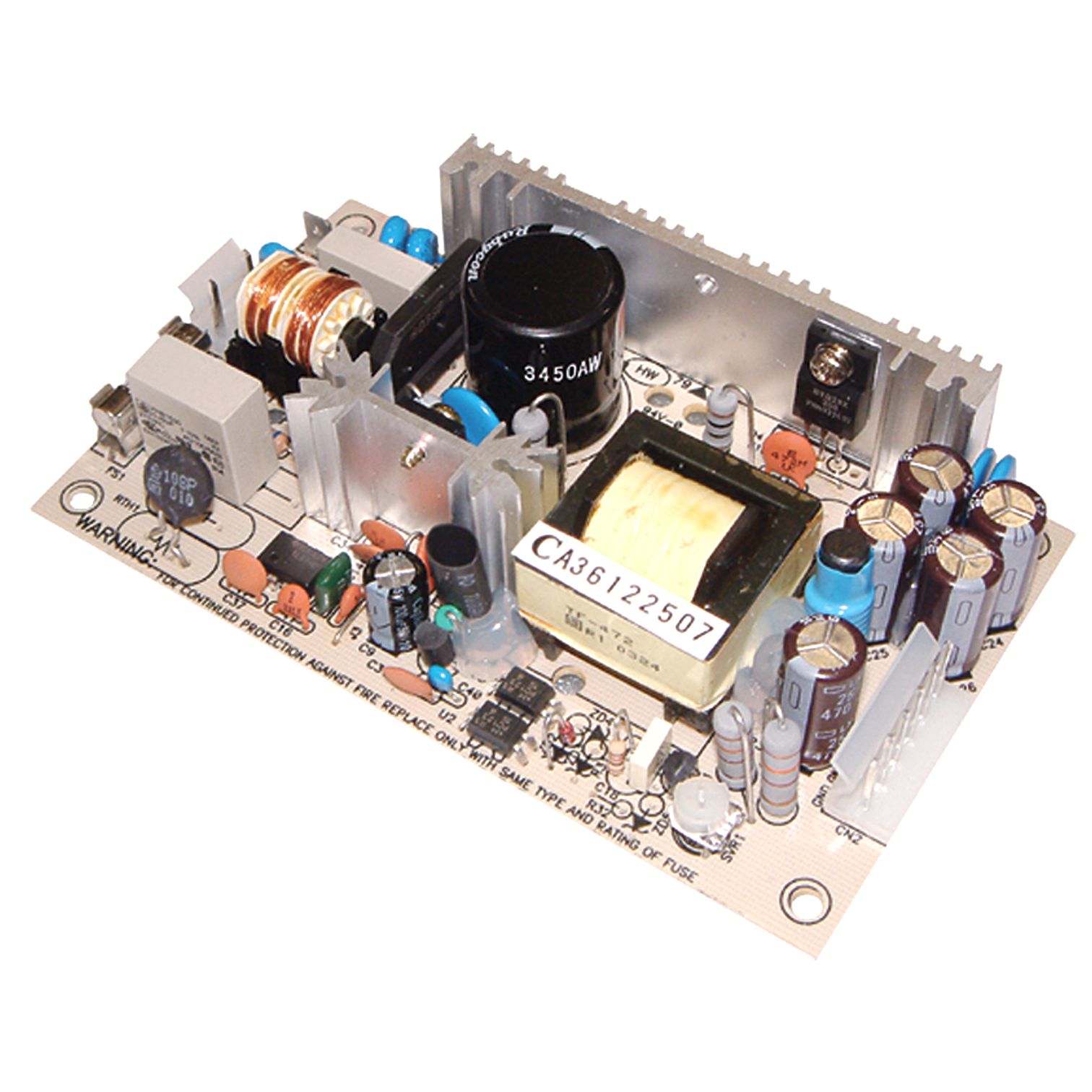

MEAN WELL PT-45 Open-Frame Power Supply Series Features:
- open-frame design
- pin header connections for nylon crimp connectors
- universal input
- overload protection by shutdown, auto recovery
- protected against short circuit, overload, overvoltage
Notice:
This product is intended for installation in terminal equipment.
For detailed technical specifications, please refer to the data sheet in the "Downloads" tab.
Technical data
| Product number: | 103193 |
|---|---|
| Size: | 127mm x 76.2mm x 28mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.21kg |
| Electrical Connection Type: | Raster plug 3,96mm |
| Installation: | Mounting |
| Number of Outputs: | 3 |
| Efficiency: | 75% |
| Output Current: | 3 (0.4...5)A |
| Output Voltage: | 5V DC |
| Power: | 42.6W |
| Power Supply Characteristics: | open |
| Series: | PT-45 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 127mm x 76.2mm x 28mm |
| Weight: | 0.21kg |
Downloads
| Data Sheet: | meanwell-pt-45-spec-data-sheet.pdf |
|---|
