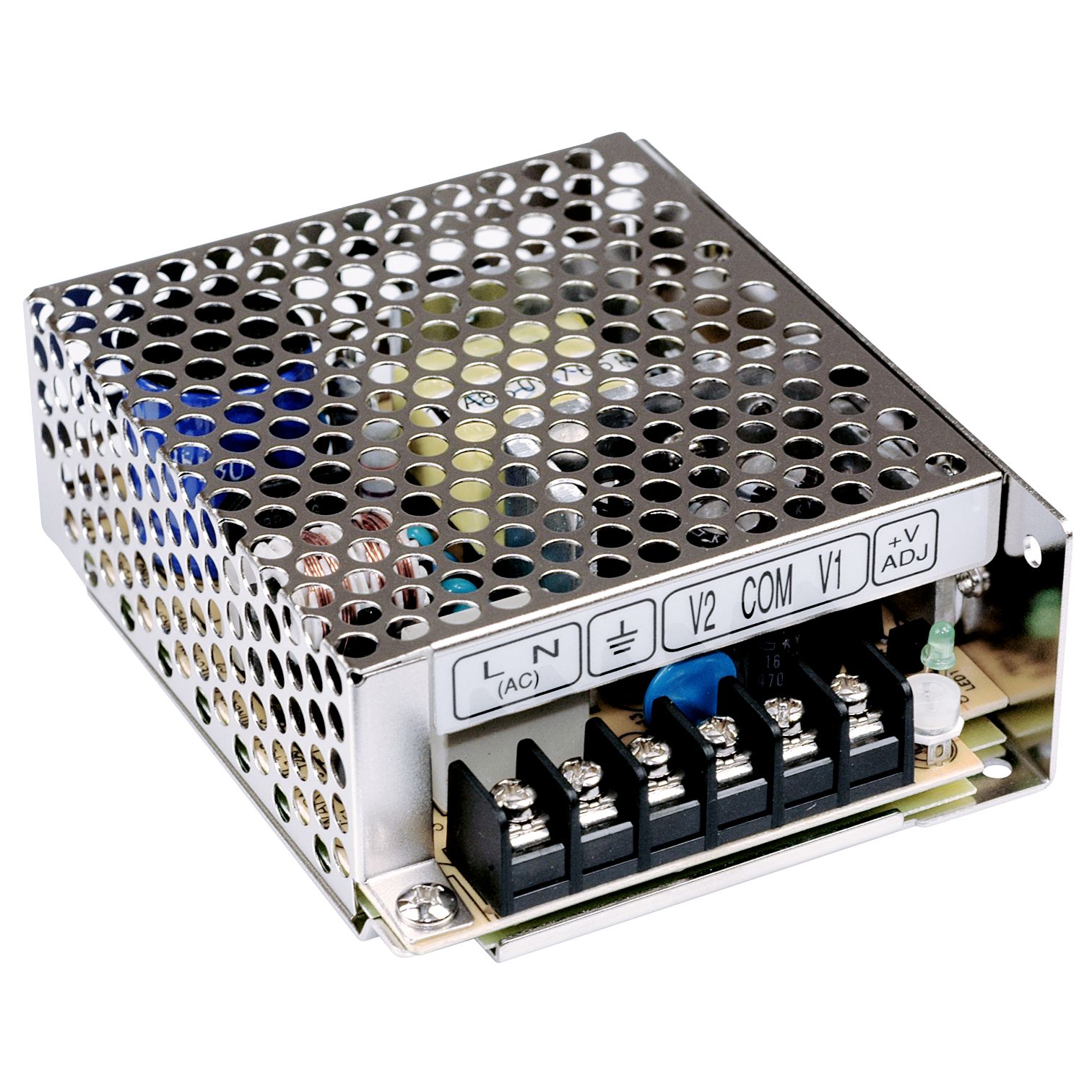

RD-35B Switching power supply, closed, 35W, +5/+24V, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€14.80
|
| To 99 |
€14.56
|
| From 100 |
€14.07
|
Available, delivery time: 1-3 days
| Product number: | 100143 |
|---|---|
| Manufacturer number: | RD-35B |
| EAN | 4021087014939 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "RD-35B Switching power supply, closed, 35W, +5/+24V, MEAN WELL"
Meanwell RD-35 Switching Power Supply Series Features:
- closed design (case), screw terminals
- universal input
- overload protection by shutdown, auto recovery
- protected against short circuit and overvoltage
- Long Life 105°C electrolytic capacitors
Notice:
This product is intended for installation in terminal equipment.
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 100143 |
|---|---|
| Size: | 99mm x 82mm x 36mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.3kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 2 |
| Efficiency: | 82% |
| Case type: | 0932A |
| Output Current: | 2.2 (0.3...4)A |
| Output Voltage: | 5V DC |
| Power: | 35W |
| Power Supply Characteristics: | Module |
| Series: | RD-35 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 99mm x 82mm x 36mm |
| Weight: | 0.3kg |
Downloads
| Data Sheet: | meanwell-rd-35-spec-data-sheet-1.pdf |
|---|
