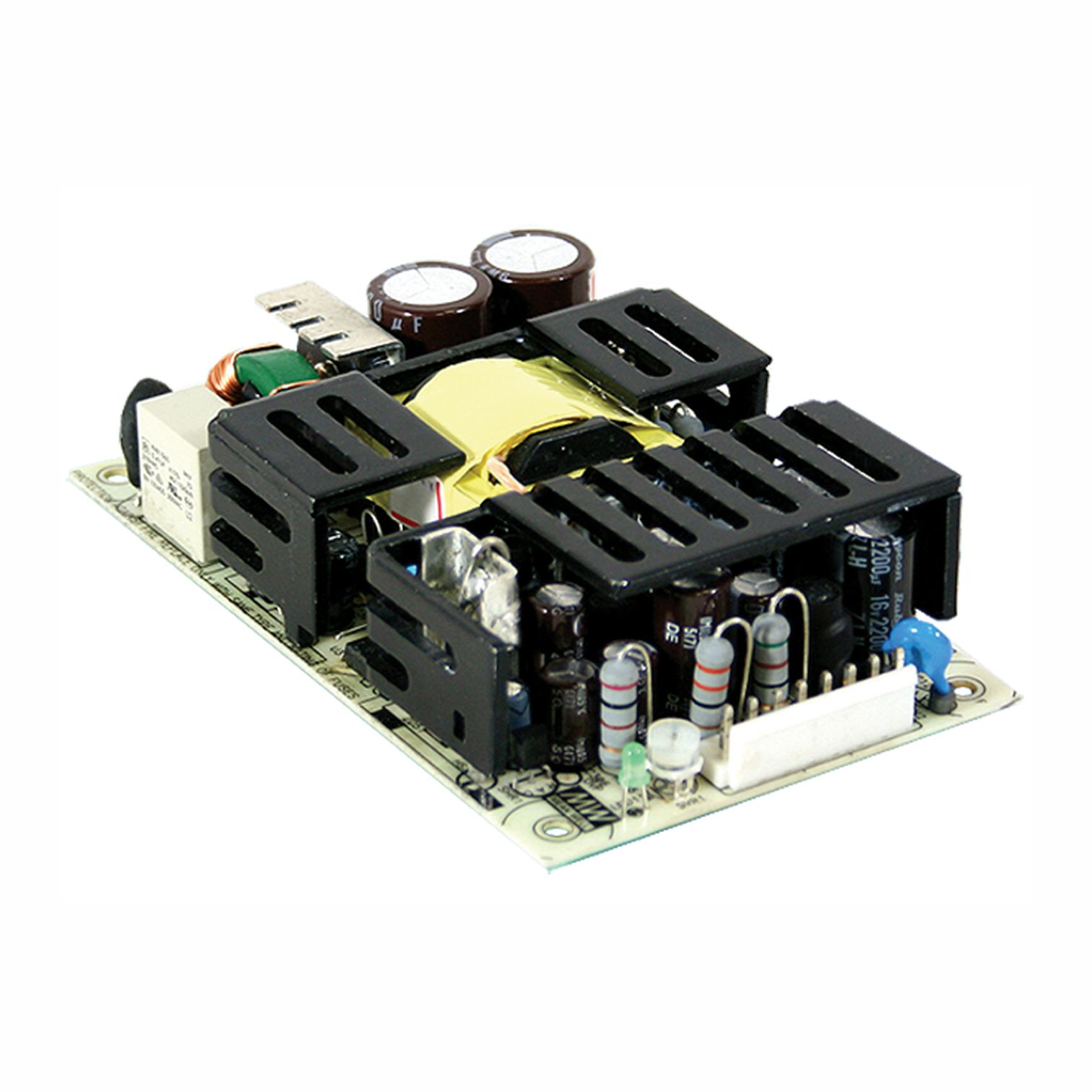

RPT-75C switching power supply, medical, 72W, 5/15/-15V, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€26.20*
|
| To 99 |
€25.76*
|
| From 100 |
€25.10*
|
Available, delivery time: 1-3 days
| Product number: | 102735 |
|---|---|
| Manufacturer number: | RPT-75C |
| EAN | 4021087048446 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL RPT-75 Open Frame Power Supply Series Description:
The RPT-75 power supply series is an ideal solution for various applications. With an open frame design, these power supplies are easy to install and use. Additionally, their universal input means they can be used with many different types of power sources. Plus, they are protected against short circuit, overload, and overvoltage.
MEAN WELL RPT-75 Open Frame Power Supply Series Features:
- open-frame design
- compact design, 5" x 3"
- pin header connections for nylon crimp connectors
- universal input
- overload protection by shutdown, auto recovery
- protected against short circuit, overload, overvoltage
- Safety standards: EN60601-1 (2x MOPP)
- EMC standards: EN55011 class B and others
- 3 years manufacturer warranty
Notice:
This product is intended for installation in terminal equipment.
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 102735 |
|---|---|
| Size: | 127mm x 76.2mm x 31mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.26kg |
| Electrical Connection Type: | Raster plug 3,96mm |
| Installation: | Mounting |
| Number of Outputs: | 3 |
| Efficiency: | 77% |
| Output Current: | 6A |
| Output Voltage: | 5V DC |
| Power: | 72W |
| Power Supply Characteristics: | open |
| Application: | medical applications |
| Series: | RPT-75 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 127mm x 76.2mm x 31mm |
| Weight: | 0.26kg |
Downloads
| Data Sheet: | meanwell-rpt-75-spec-data-sheet.pdf |
|---|
