RS-100-15 Switching power supply, closed, 105W, 15V, 7A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€23.20
|
| To 99 |
€22.82
|
| From 100 |
€22.06
|
Available, delivery time: 1-3 days
| Product number: | 100122 |
|---|---|
| Manufacturer number: | RS-100-15 |
| EAN | 4021087014830 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "RS-100-15 Switching power supply, closed, 105W, 15V, 7A, MEAN WELL"
MEAN WELL RS-100 Switching Power Supply Series Features:
- closed design (case), screw terminals
- universal AC input
- overload protection by shutdown, auto recovery
- protected against: short circuit / overload / overvoltage
- cooling by free air convection
- 105°C long-life electrolytic capacitors
- withstands 300VAC overvoltage for 5 seconds
- high operating temperatures up to 70°C
- withstands 5G vibration test
- high efficiency, long life and high reliability
- 3 years manufacturer warranty
Notice:
This product is intended for installation in end devices.
For detailed technical data please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100122 |
|---|---|
| Size: | 159mm x 97mm x 38mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.6kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 1 |
| Efficiency: | 82% |
| Case type: | 901C |
| Output Current: | 7A |
| Output Voltage: | 15V DC |
| Power: | 105W |
| Power Supply Characteristics: | Module |
| Series: | RS-100 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 159mm x 97mm x 38mm |
| Weight: | 0.6kg |
Downloads

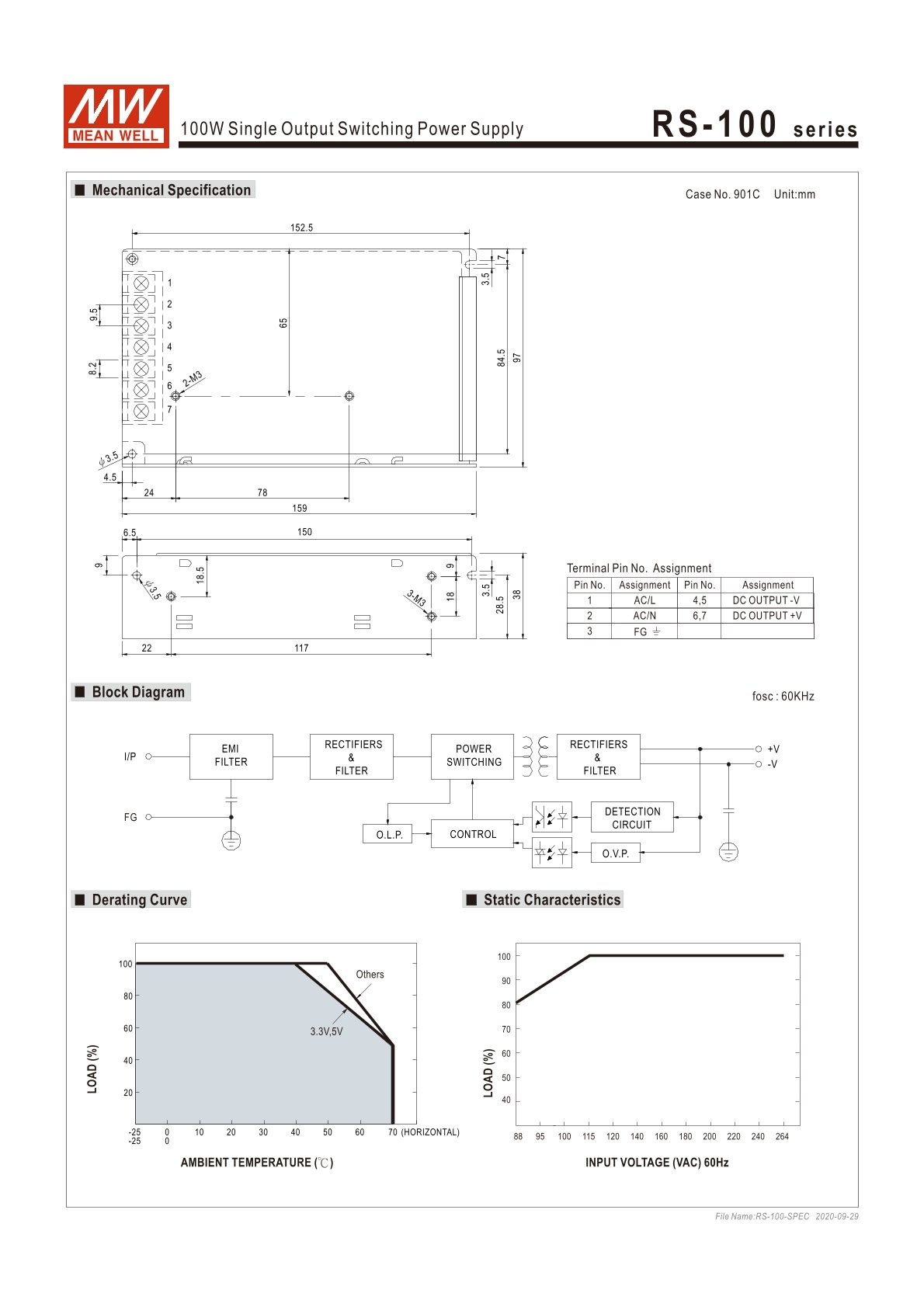

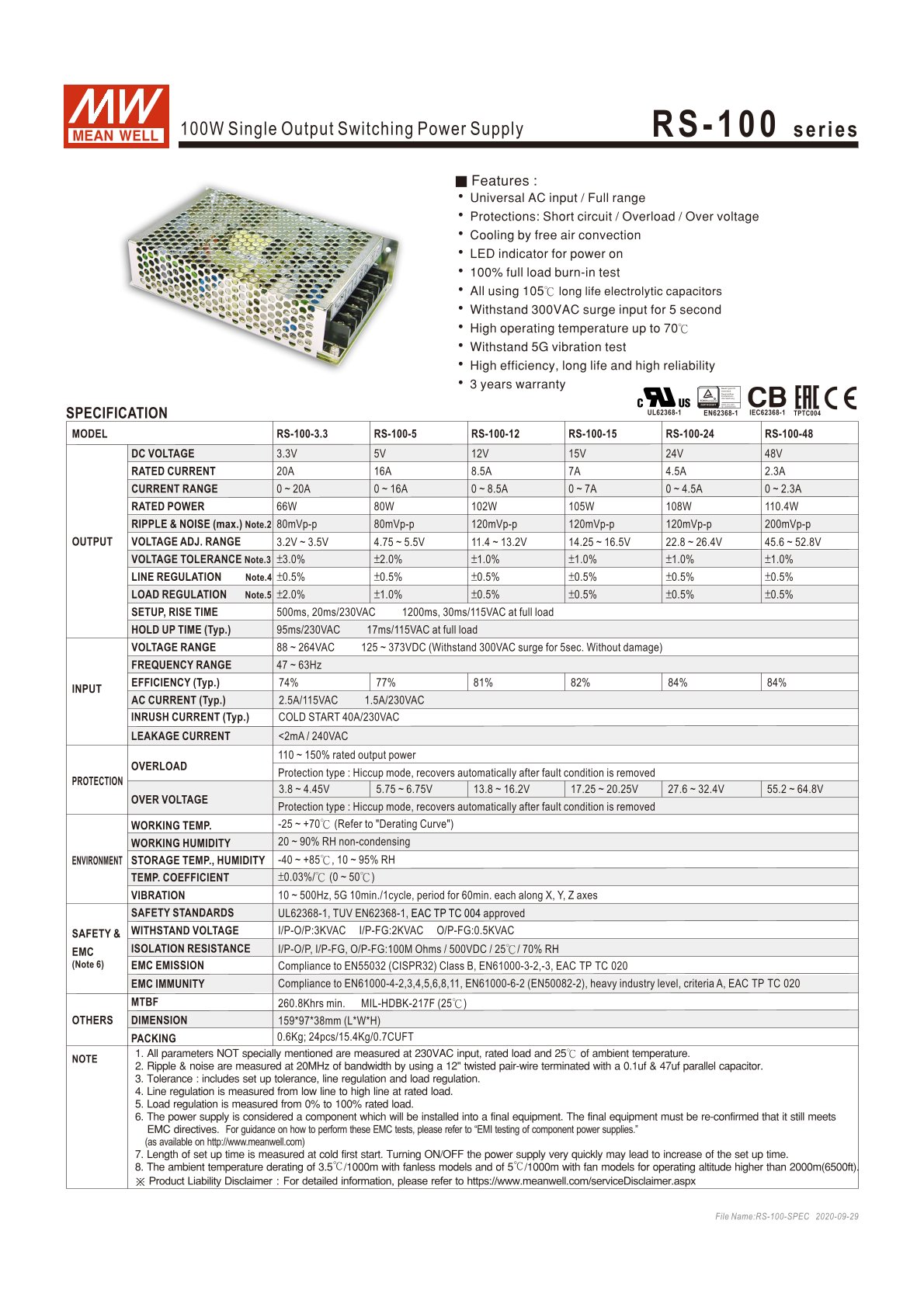

| Data Sheet: | meanwell-rs-100-spec-data-sheet.pdf |
|---|
Manufacturer
Company Name
MEAN WELL ENTERPRISES CO., LTD.
Address
No.28, Wuquan 3rd Rd., Wugu Dist., New Taipei City, 24891, TW
E-Mail
Phone
+886-2-2299-6100
EU Responsible Person
Company Name
MEAN WELL EUROPE N.V.
Address
Langs de Werf 8, Amstelveen, 1185XT, NL
E-Mail
Phone
+31-20-758-6000
