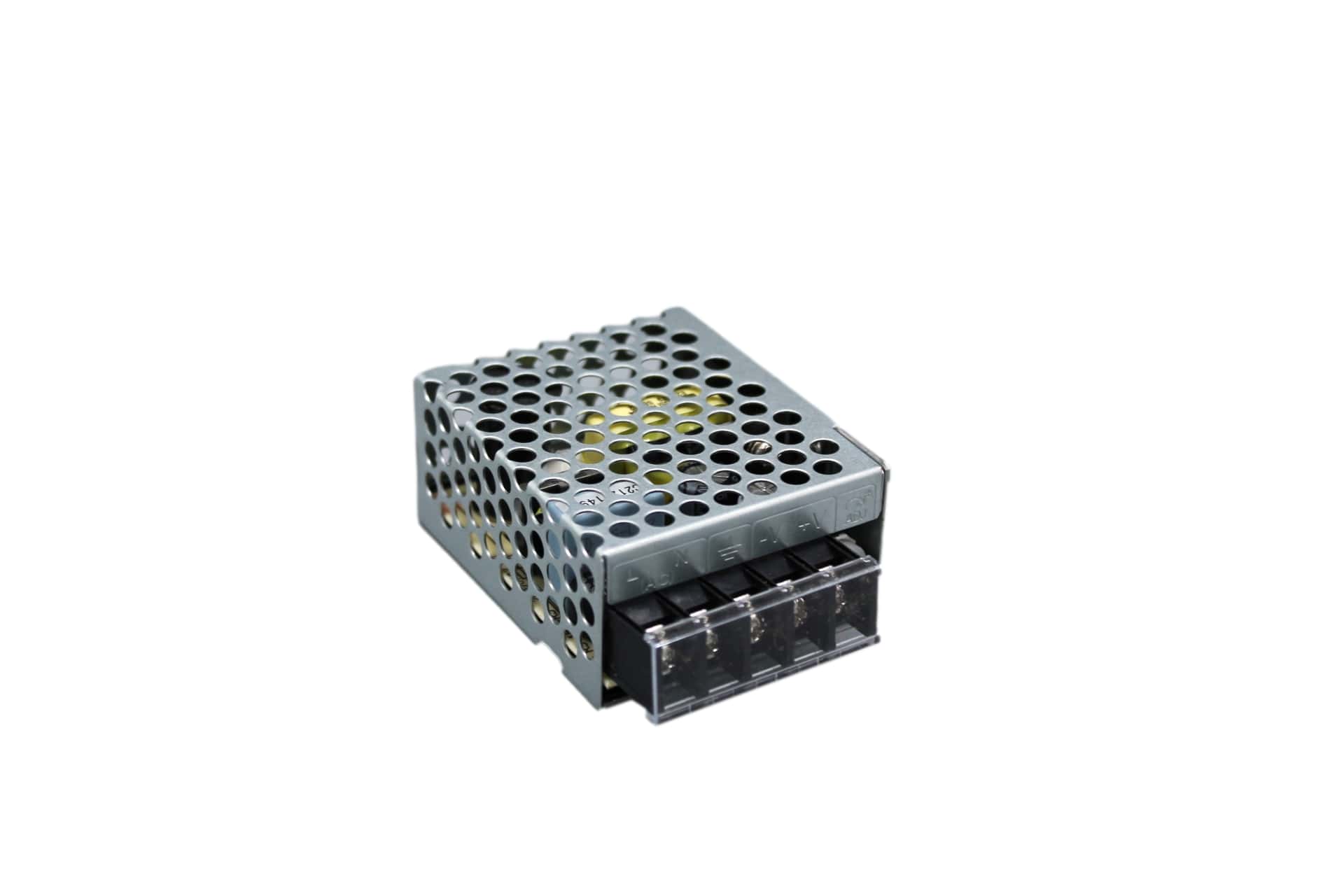

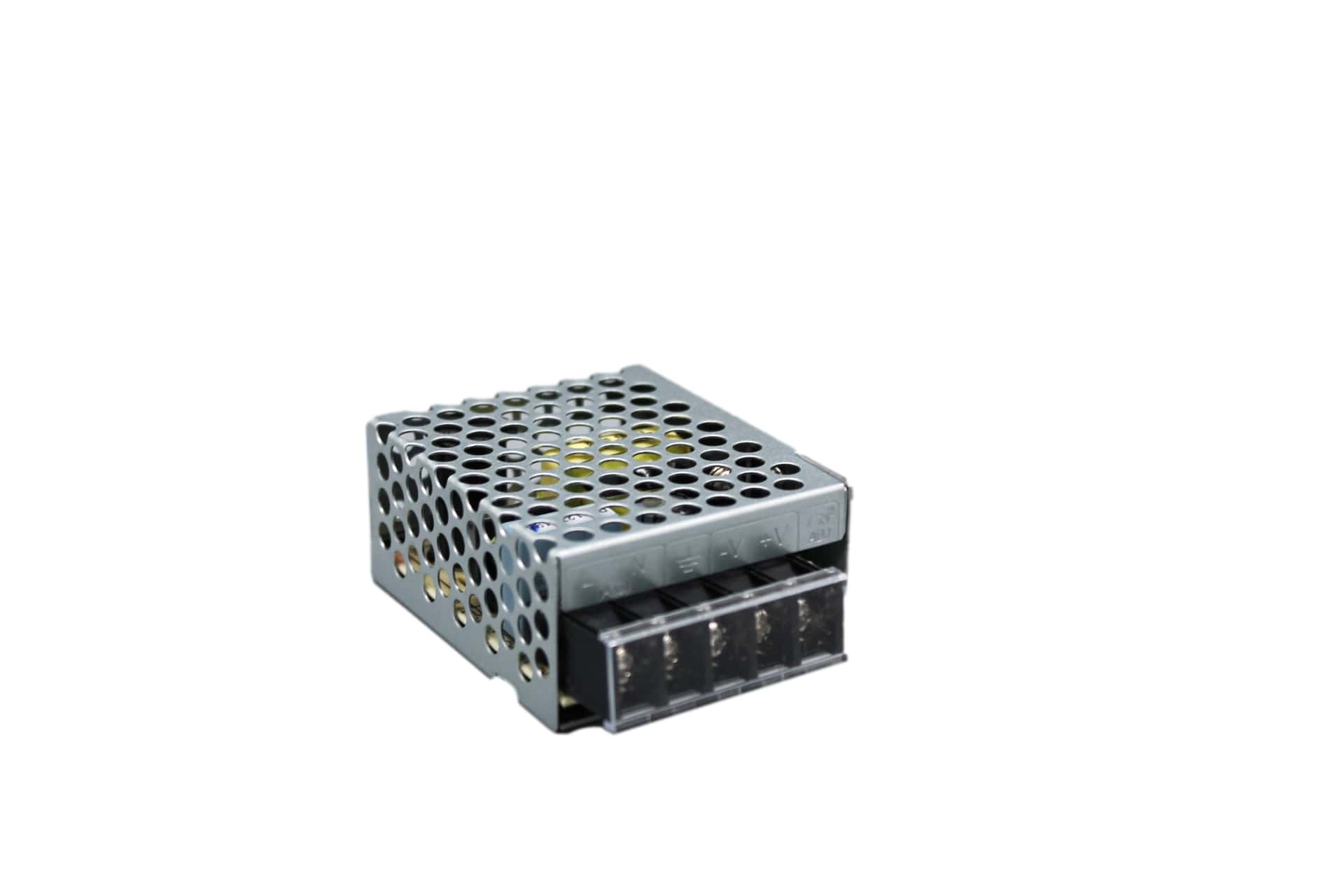

RS-15-5 Switching power supply, closed, 15W, 5V, 3A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€6.90*
|
| To 99 |
€6.78*
|
| From 100 |
€6.55*
|
Available, delivery time: 1-3 days
| Product number: | 100064 |
|---|---|
| Manufacturer number: | RS-15-5 |
| EAN | 4021087014731 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL RS-15 Switching Power Supply Series Features:
- Closed design (case), screw terminals
- Universal AC input
- overload protection by shutdown, auto recovery
- protected against: short circuit / overload / overvoltage
- Cooling by free air convection
- 105°C long-life electrolytic capacitors
- Withstands 300VAC overvoltage for 5 seconds
- High operating temperatures up to 70°C
- Withstands 5G vibration test
- High efficiency, long life and high reliability
- 3 years manufacturer warranty
Notice:
This product is intended for installation in end devices.
For detailed technical data, please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100064 |
|---|---|
| Size: | 62.5mm x 51mm x 28mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.13kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 1 |
| Efficiency: | 77% |
| Case type: | 971A |
| Output Current: | 3A |
| Output Voltage: | 5V DC |
| Power: | 15W |
| Power Supply Characteristics: | Module |
| Series: | RS-15 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 62.5mm x 51mm x 28mm |
| Weight: | 0.13kg |
Downloads
| Data Sheet: | meanwell-rs-15-spec-data-sheet.pdf |
|---|
