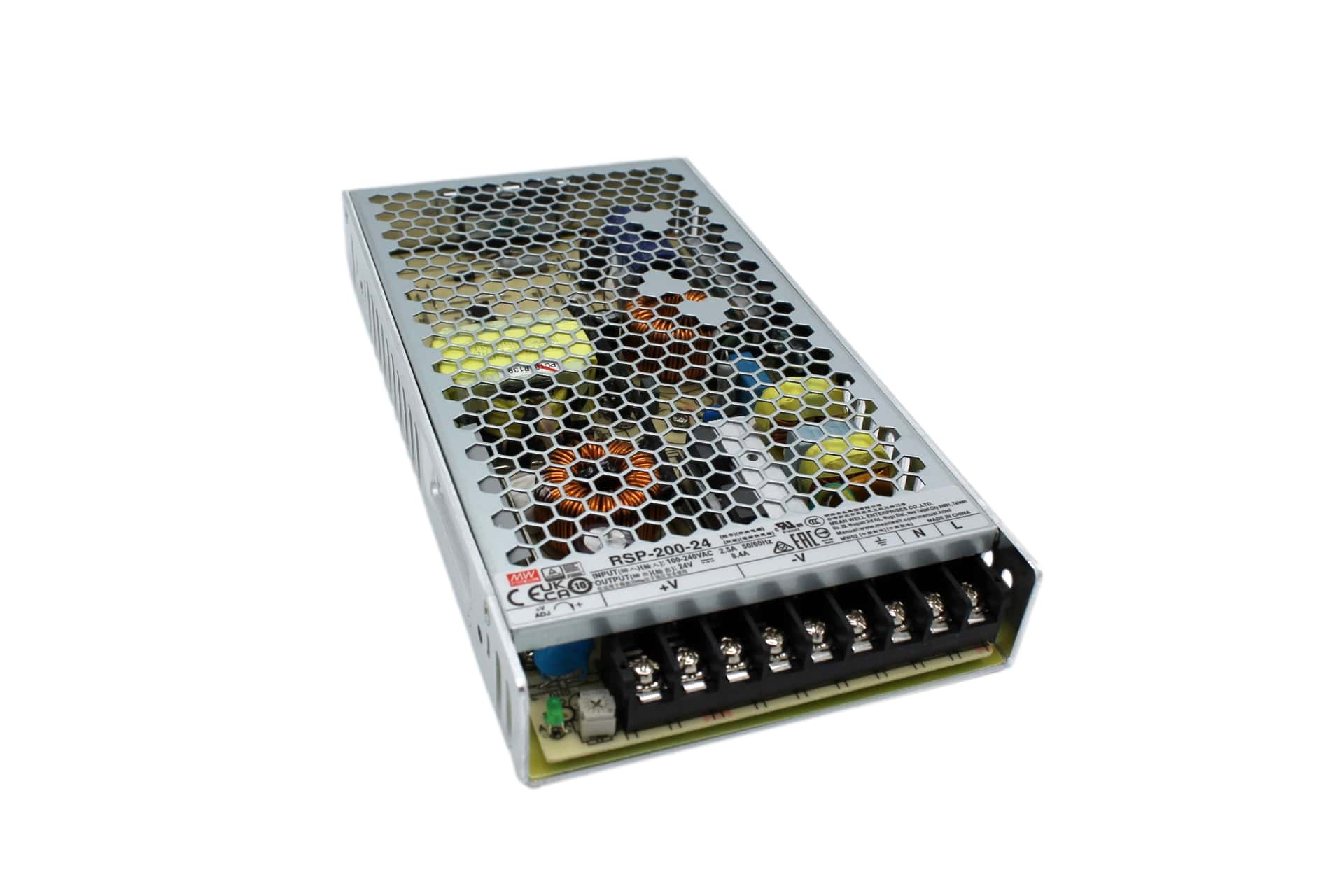

RSP-200-24 Switching power supply, closed, 201W, 24V, 8,4A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€40.00
|
| To 99 |
€39.33
|
| From 100 |
€38.32
|
Available, delivery time: 1-3 days
| Product number: | 100445 |
|---|---|
| Manufacturer number: | RSP-200-24 |
| EAN | 4021087014069 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "RSP-200-24 Switching power supply, closed, 201W, 24V, 8,4A, MEAN WELL"
MEAN WELL RSP-200 Switching Power Supply Series Description:
RSP-200 is a closed loop AC/DC power supply with 200W single output. This series operates from an input voltage of 85~264VAC and offers models with a DC output, which are primarily required for industrial applications. Each model is cooled by free air convection and is suitable for temperatures up to 70°C.
MEAN WELL RSP-200 Switching Power Supply Series Features:
- closed design (case), screw terminals
- universal input
- overload protection by shutdown, auto recovery
- protected against short circuit, overload, overvoltage
- built-in PFC circuit
- low height
Notice:
This product is intended for installation in terminal equipment.
For detailed technical data, please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100445 |
|---|---|
| Size: | 215mm x 115mm x 30mm |
| Protection: | Short circuit protection SCP, overheating OTP, overcharging OPP, overvoltage OVP |
| Weight: | 0.72kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 1 |
| Efficiency: | 89,5% |
| Case type: | 207B |
| Output Current: | 8.4A |
| Output Voltage Range: | 20...26.4V DC |
| Output Voltage: | 24V DC |
| Power: | 201.6W |
| Power Supply Characteristics: | Module |
| Series: | RSP-200 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 215mm x 115mm x 30mm |
| Weight: | 0.72kg |
Downloads
| Data Sheet: | meanwell-rsp-200-spec-data-sheet.pdf |
|---|
