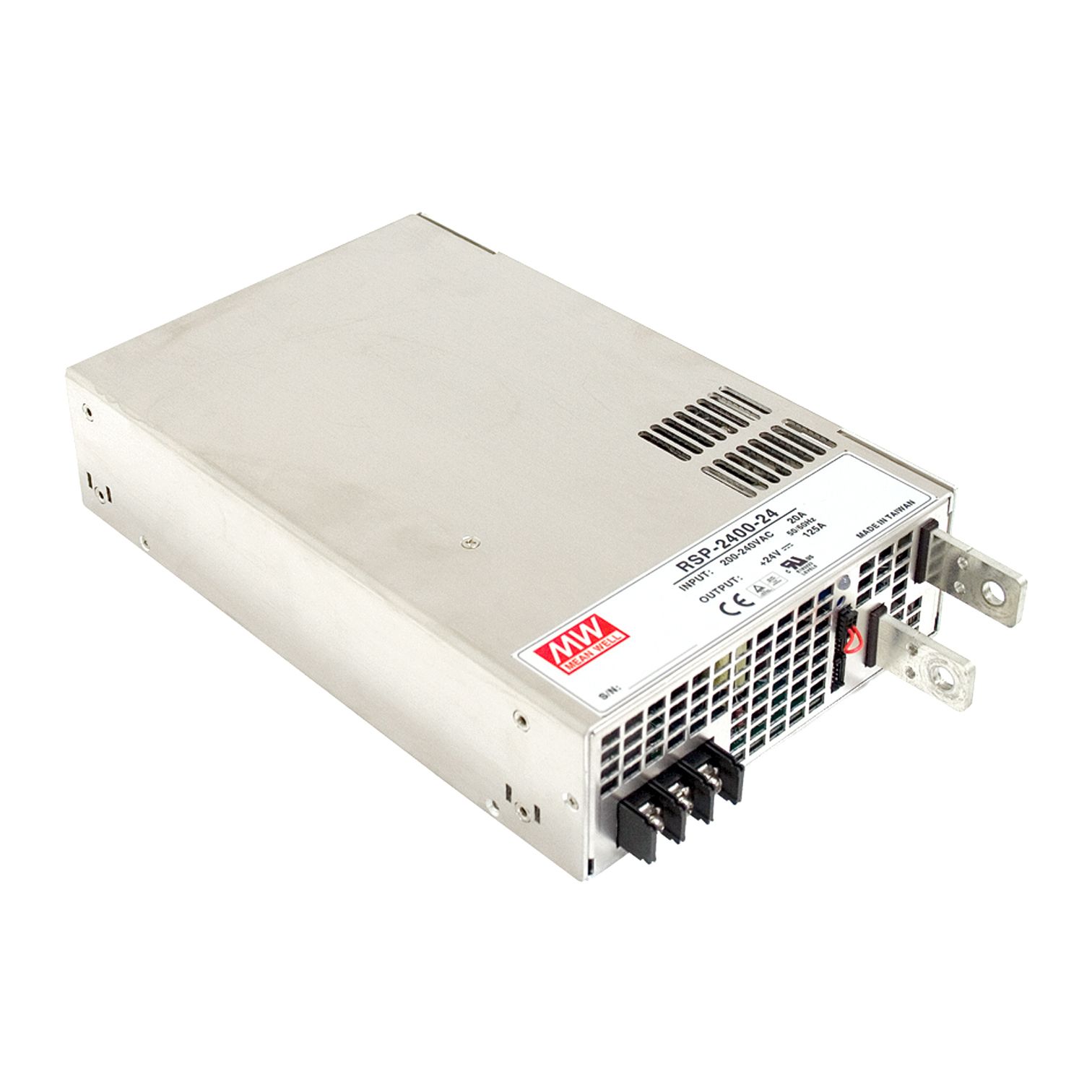

RSP-2400-24 Switching power supply, closed, 2400W, 24V, 100A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€438.10*
|
| To 99 |
€430.73*
|
| From 100 |
€419.69*
|
Currently not available (delivery time on request)
| Product number: | 100657 |
|---|---|
| Manufacturer number: | RSP-2400-24 |
| EAN | 4021087013925 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL RSP-2400 Switching Power Supply Series Description:
RSP-2400 series consists of closed AC/DC power supplies with 2400W single output. This series operates with an input voltage of 180~264VAC and offers models with a DC output, which are mainly needed for industrial applications. Each model is cooled by a temperature controlled fan and is suitable for temperatures up to 70°C.
MEAN WELL RSP-2400 Switching Power Supply Series Features:
- closed design (case) with fan, screw terminals
- overload protection by current limiting, shutdown after 5s, re-power-on
- protected against short circuit, overload, overvoltage
- built-in PFC circuit
- low no-load consumption
- parallel function
- active AC input
- current limiting
- active current sharing up to 7200W (2+1 power supplies)
- switching on and off of output voltage via remote signal
- power fail signal
- sensor connection for correct voltage at the load
- internal auxiliary voltage 12V/0,1A
- EMC: conducted emission according to EN55032/EN55011 class B, radiated emission according to EN55032/EN55011 class A
Notice:
This product is intended for installation in terminal equipment.
For detailed technical data, please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100657 |
|---|---|
| Size: | 278mm x 177.8mm x 63.5mm |
| Protection: | Short circuit protection SCP, overheating OTP, overcharging OPP, overvoltage OVP |
| Weight: | 3.3kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 1 |
| Efficiency: | 90% |
| Output Current: | 100A |
| Output Voltage Range: | 22...28V DC |
| Output Voltage: | 24V DC |
| Power: | 2400W |
| Power Supply Characteristics: | Module |
| Series: | RSP-2400 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 278mm x 177.8mm x 63.5mm |
| Weight: | 44,623kg |
Downloads
| Data Sheet: | meanwell-rsp-2400-spec-data-sheet.pdf |
|---|
