SCWN03C-15 DC/DC Converter 36-72V:+15V 200mA 3W, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€8.57*
|
| To 99 |
€8.28*
|
| From 100 |
€7.87*
|
Available, delivery time: 1-3 days
| Product number: | 103947 |
|---|---|
| Manufacturer number: | SCWN03C-15 |
| EAN | 4021087041799 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

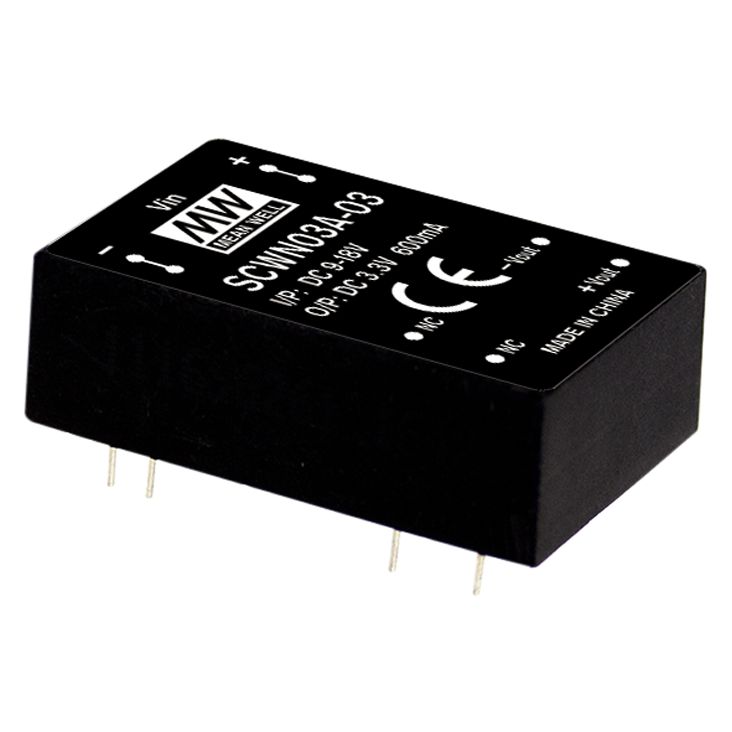

Meanwell SCWN03 DC/DC Converter Series Features:
- DIP24/DIL24 package
- for direct PCB mounting
- input voltage ratio: 2:1
- no minimum load required
- input/output isolation 3000V
- regulated output voltage
- according to EN55032 radiated class A without additional components
- efficiency up to 87%
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 103947 |
|---|---|
| Size: | 31.8mm x 20.3mm x 10.2mm |
| Protection: | Short circuit protection SCP, overcharge OPP, undervoltage UVP |
| Weight: | 0.0125kg |
| Installation: | Through Hole Technology / Durchsteckmontage (THT) |
| Number of Outputs: | 1 |
| Efficiency: | 87% |
| Output Current: | 200mA |
| Output Voltage: | 15V DC |
| Power: | 3W |
| Series: | SCWN03 |
| Size: | 31.8mm x 20.3mm x 10.2mm |
| Weight: | 44,693kg |
Downloads
| Data Sheet: | meanwell-scwn03dcwn03-spec-data-sheet.pdf |
|---|
