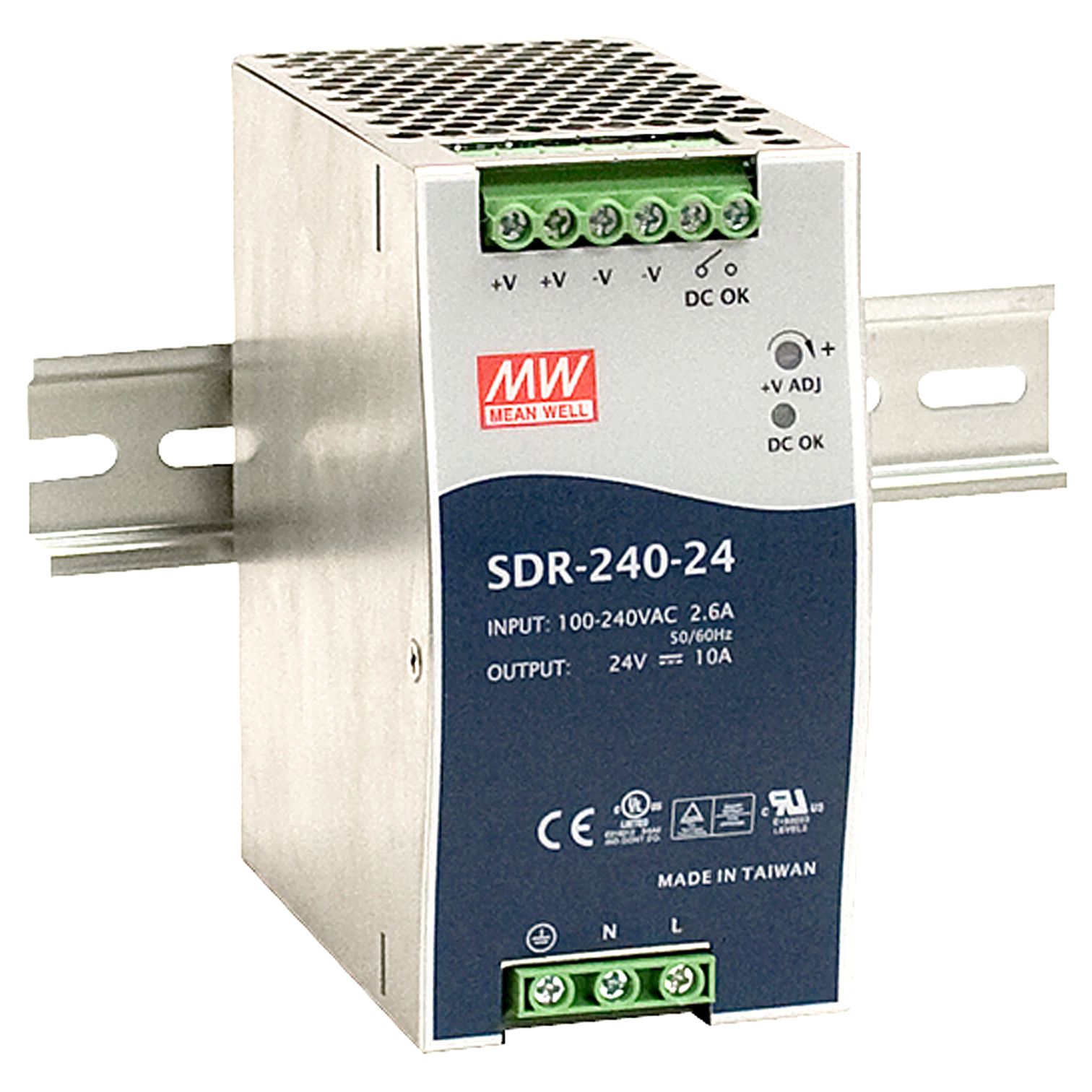

SDR-240-24 DIN rail power supply, 240W, 24V, 10A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€91.70
|
| To 99 |
€90.16
|
| From 100 |
€87.85
|
Available, delivery time: 1-3 days
| Product number: | 100801 |
|---|---|
| Manufacturer number: | SDR-240-24 |
| EAN | 4021087017954 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "SDR-240-24 DIN rail power supply, 240W, 24V, 10A, MEAN WELL"
MEAN WELL SDR-240 DIN Rail Power Supply Series Features:
- direct DIN rail mountable
- closed design, touch-protected screw terminals
- universal input
- overload protection by current limiting, switch off after 3s
- protected against short circuit, overload, overvoltage
- built-in PFC circuit
- LED indicator for power-on
- DC-OK relay output
- Peak load function
Notice:
For detailed technical data, please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100801 |
|---|---|
| Size: | 63mm x 125.2mm x 113.5mm |
| Protection: | Short circuit protection SCP, overheating OTP, overcharging OPP, overvoltage OVP |
| Weight: | 1.03kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | DIN |
| Number of Outputs: | 1 |
| Efficiency: | 94% |
| Case type: | 979A |
| Output Current: | 10A |
| Output Voltage Range: | 24...28V DC |
| Output Voltage: | 24V DC |
| Power: | 240W |
| Power Supply Characteristics: | Impulse |
| Series: | SDR-240 |
| Size: | 63mm x 125.2mm x 113.5mm |
| Weight: | 44,621kg |
Downloads
| Data Sheet: | meanwell-sdr-240-spec-data-sheet.pdf |
|---|
