SEB 2600 G M4 gruen / green
€3.52
Available, delivery time: 1-3 days
| Product number: | 202215 |
|---|---|
| Manufacturer number: | 972354104 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "SEB 2600 G M4 gruen / green"
SEB 2600 G M4 gruen / green (972354104)

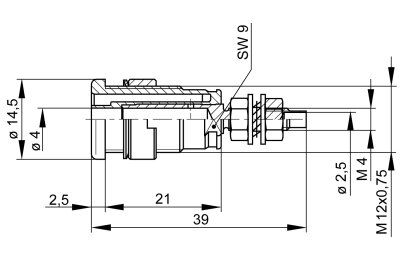

Safety built-in socket, 4 mm diameter, touch-protected, M 4 thread and solder connection, gold-plated brass. For installation into switch panels and equipment chassis with wall thicknesses up to 6 mm.
Installation hole: 12.2 mm diameter,
Tightening torque: 50 Ncm
Accessory: assembly tool MW SEB
Technical data |
|
| connection | M4 thread, solder connection |
| rated voltage | AC/DC 1000 V |
| measurement cat. acc. to IEC 61010 | CAT III |
| rated current (consider derating curve) |
32 A |
| material socket | brass, gold plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -40 °C to +80 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| Product number: | 202215 |
|---|
