SEB 2620 F6.3 gelb/gruen-yellow/green
€2.71
Available, delivery time: 1-3 days
| Product number: | 202240 |
|---|---|
| Manufacturer number: | 972356188 |
| EAN | 4250260214334 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "SEB 2620 F6.3 gelb/gruen-yellow/green"
SEB 2620 F6.3 gelb/gruen-yellow/green (972356188)

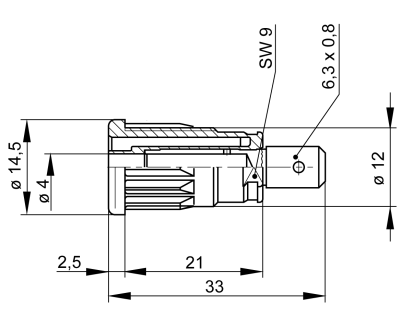

Safety press-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm.
Installation hole: Ø12.2 ±0.1 mm
Entry chamfer: 0.5 x 45°
Technical data |
|
| connection | flat connector 6.3 x 0.8 mm |
| rated voltage | AC/DC 1000 V |
| measurement cat. acc. to IEC 61010 | CAT III |
| rated current (consider derating curve) |
32 A |
| material socket | brass, gold plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -40 °C to +80 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| Product number: | 202240 |
|---|
