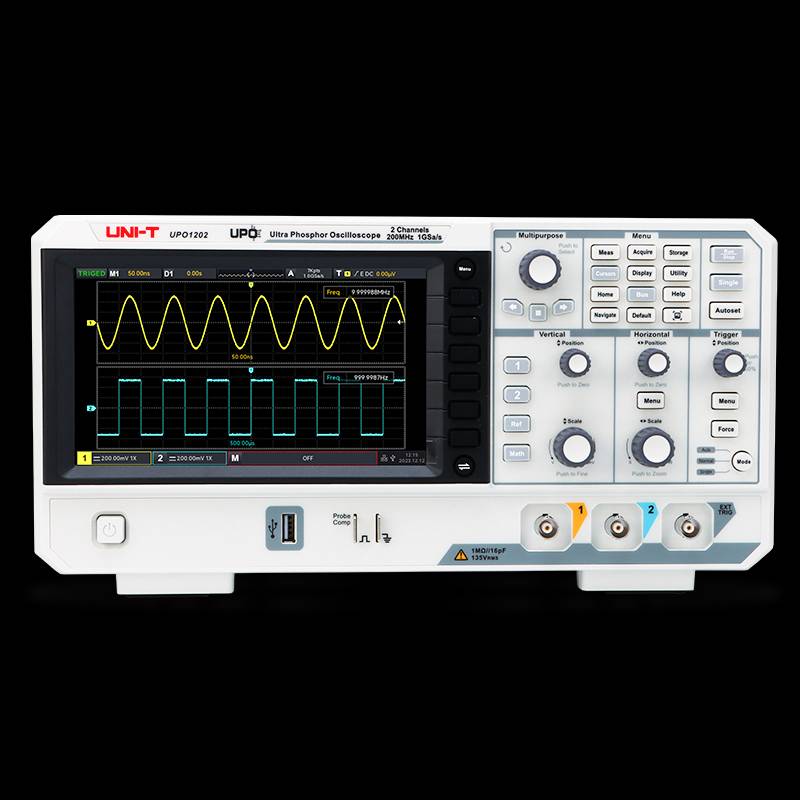

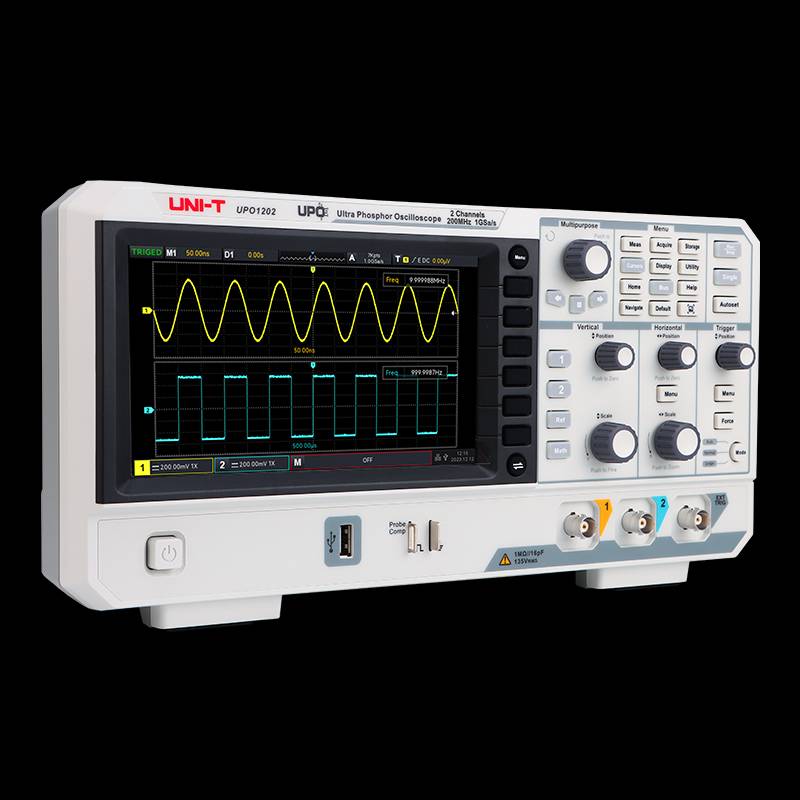

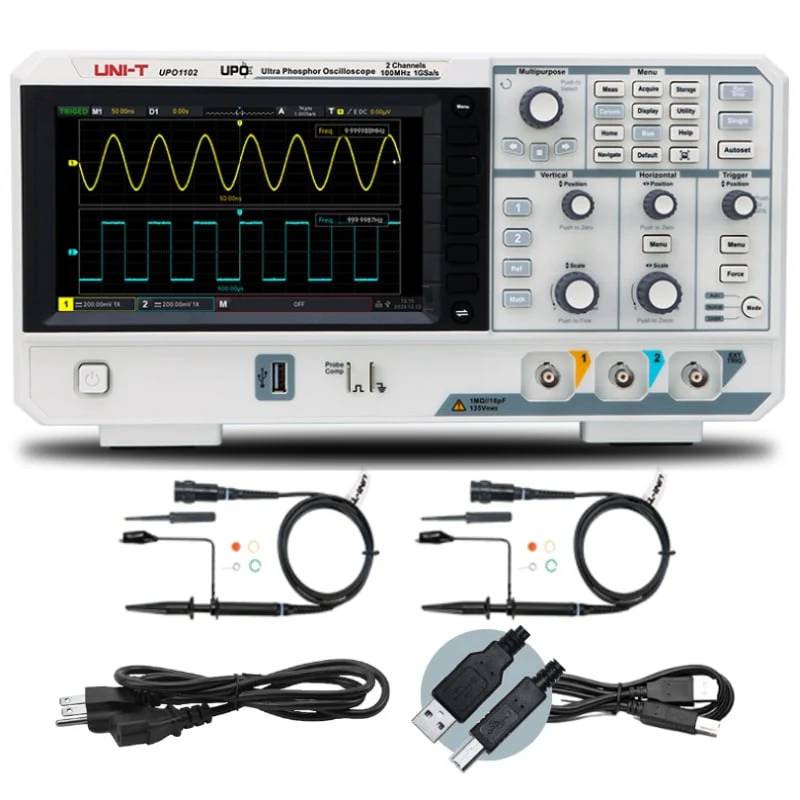

UNI-T UPO1102 Digital Storage Oscilloscope | 100 MHz, 2 Channels, 1 GSa/s, 56 Mpts
| Product number: | 202697 |
|---|---|
| Manufacturer number: | UPO1102 |
| EAN | 6935750511275 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Product-Features
- 100 MHz Bandwidth & 2 Channels: Ideal for precise measurements in education, development, and service.
- 1 GSa/s Sample Rate: Captures even the fastest signals and steep edges with the highest accuracy.
- 56 Mpts Memory Depth: Records extremely long waveforms without reducing the sample rate.
- 500,000 wfms/s Capture Rate: Reliably finds rare signal anomalies thanks to innovative Ultra Phosphor 2.0 technology.

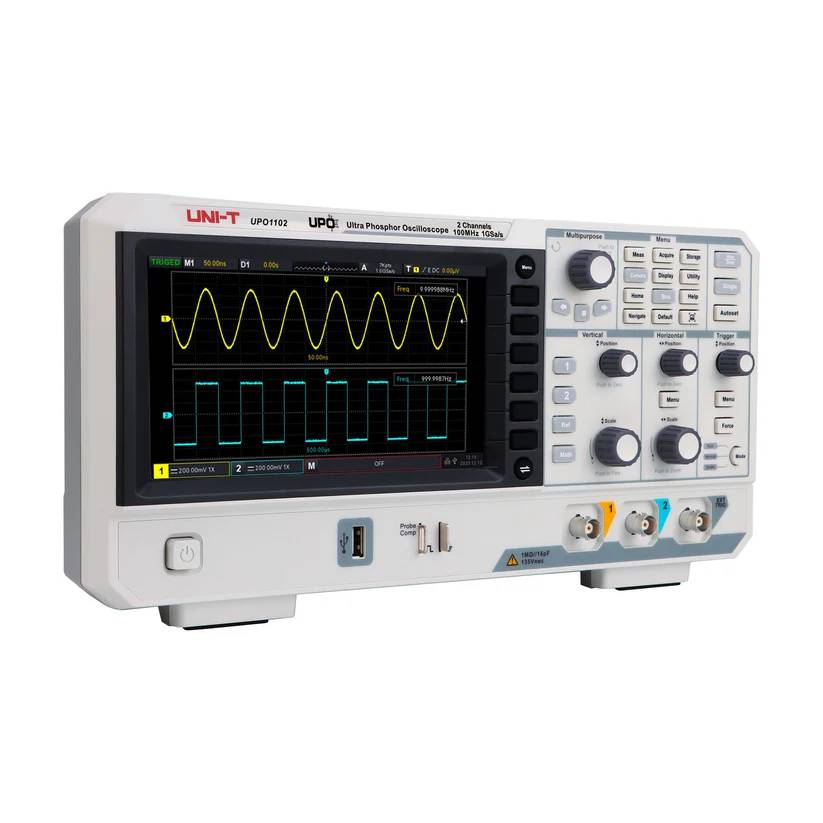

- 7-inch TFT Display: Provides a brilliant, intensity-graded waveform display for intuitive analysis.
- Web Remote Control via LAN: Allows full access and control of the device via any web browser on the network.
- Integrated Analysis Functions: Includes 36 automatic measurements, FFT spectrum analysis, and a DVM module.
- EU-Conform & Safe: The product is tested, safe, and complies with all relevant EU standards for professional use.
UNI-T UPO1102: Precision and Performance for Your Lab
The UNI-T UPO1102 is more than just an oscilloscope; it's a versatile analysis tool designed for the demanding requirements of modern electronics. Whether in education, embedded systems development, power supply testing, or mobile field service, this device delivers reliable and precise results. Its intuitive operation and powerful features make it the first choice for engineers, technicians, and students.
Ultra Phosphor 2.0: See What Others Miss
At the heart of the UPO1102 is the revolutionary Ultra Phosphor 2.0 display technology. It visualizes the frequency of signal events through varying color intensities. Frequently occurring signal parts are displayed brighter, while rare anomalies or glitches remain clearly visible. Combined with the high waveform capture rate of 500,000 wfms/s, you won't miss any detail, drastically speeding up troubleshooting.
Deep Memory, High Sample Rate: No Detail is Lost
With an impressive memory depth of 56 Mpts, you can record long waveforms without compromising the 1 GSa/s sample rate. Capture complex, non-periodic signals in their entirety and then zoom deep into the details to find the root cause of a problem. This combination is crucial for analyzing serial buses, switched-mode power supplies, and mixed digital signals.

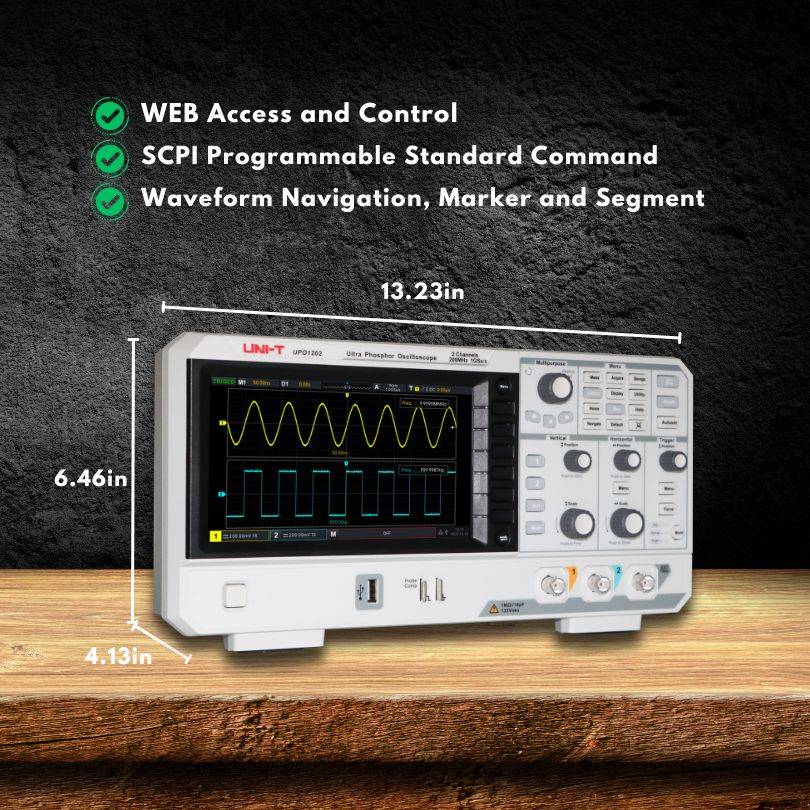

Full Control, Wherever You Are: Web Remote Control
Simply integrate the UPO1102 into your local area network (LAN) and access the full user interface from any web browser. No software installation is required. Adjust settings, view live waveforms, take screenshots, or transfer measurement data—all conveniently from your PC. This feature is ideal for automated test setups, training rooms, or team collaboration. For professional use in Europe, safety is paramount. The UNI-T UPO1102 has been rigorously tested and is fully compliant with all relevant EU standards. You are investing in a measuring device that is not only precise but also absolutely safe and reliable.
| Feature | Specification |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sample Rate (Real-time) | 1 GSa/s |
| Memory Depth | 56 Mpts |
| Waveform Capture Rate | 500,000 wfms/s |
| Display | 7-inch TFT LCD (800x480) with Ultra Phosphor 2.0 technology |
| Automatic Measurements | 36 types, with statistics |
| Analysis Functions | FFT Spectrum Analysis, Digital Voltmeter (DVM) Module |
| Trigger Types | Edge, Pulse Width, Slope, Video, Pattern |
| Serial Bus Decoding | Optional (RS232, I2C, SPI, CAN, LIN, etc.) |

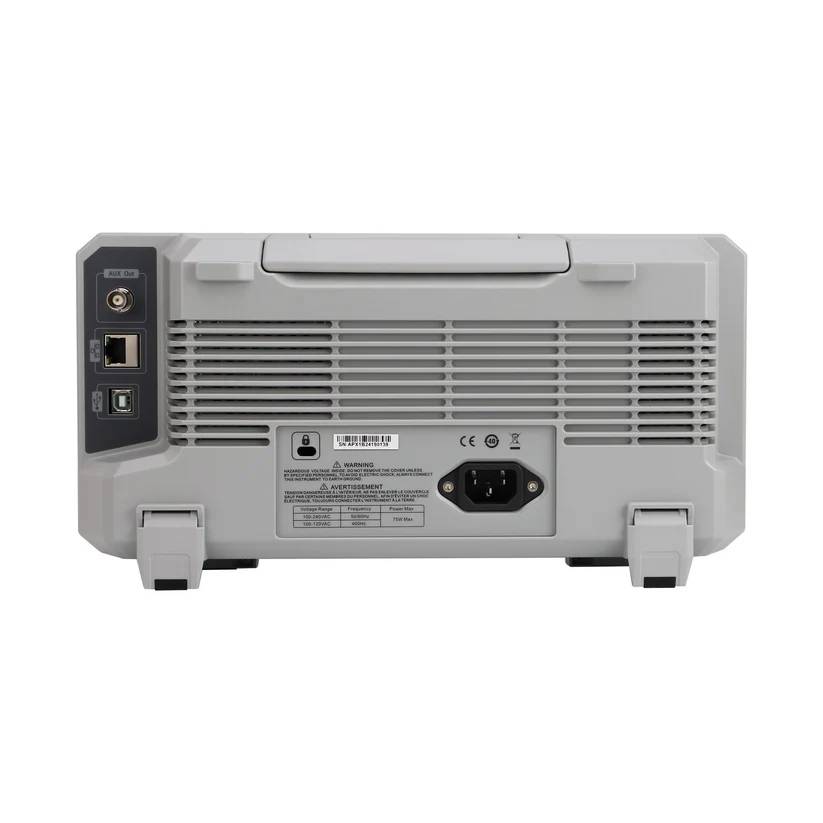

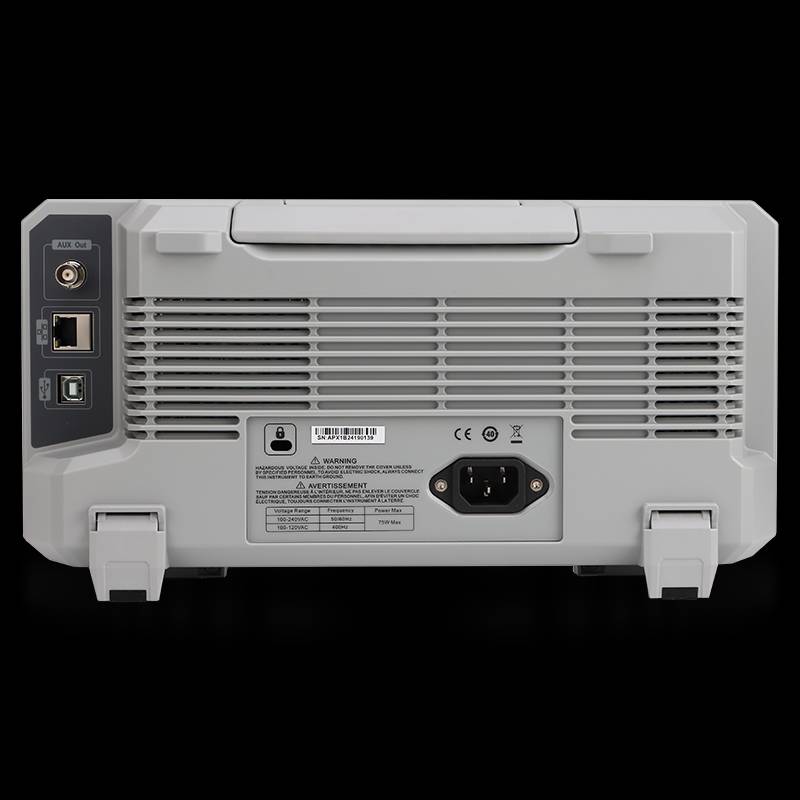

| Connectivity | USB Host, USB Device, LAN, VGA Out, AUX Out, EXT Trigger |
| Remote Control | Web-based via LAN |
Frequently Asked Questions (FAQ)
Is serial bus decoding included?
No, protocol decoding for buses like I²C, SPI, CAN, etc., is available as an optional software license and is not included as standard.
What exactly is Ultra Phosphor 2.0 technology?
Ultra Phosphor 2.0 is UNI-T's intensity-graded display technology. It shows the frequency of waveform occurrence using color intensity. Signals that appear more often are brighter, making it easier to distinguish normal signal behavior from rare anomalies.
Does the oscilloscope support digital channels (mixed-signal)?
No, the UPO1000 series, which includes the UPO1102, is an analog-only oscilloscope series. For mixed-signal capability with digital channels, please see the MSO/UPO2000 series.
Is the device approved and safe for use in the EU?
Yes, absolutely. The UPO1102 has been designed and tested in accordance with European directives. It is fully compliant with the relevant EU standards, making it suitable for safe, professional use throughout the European Union.
