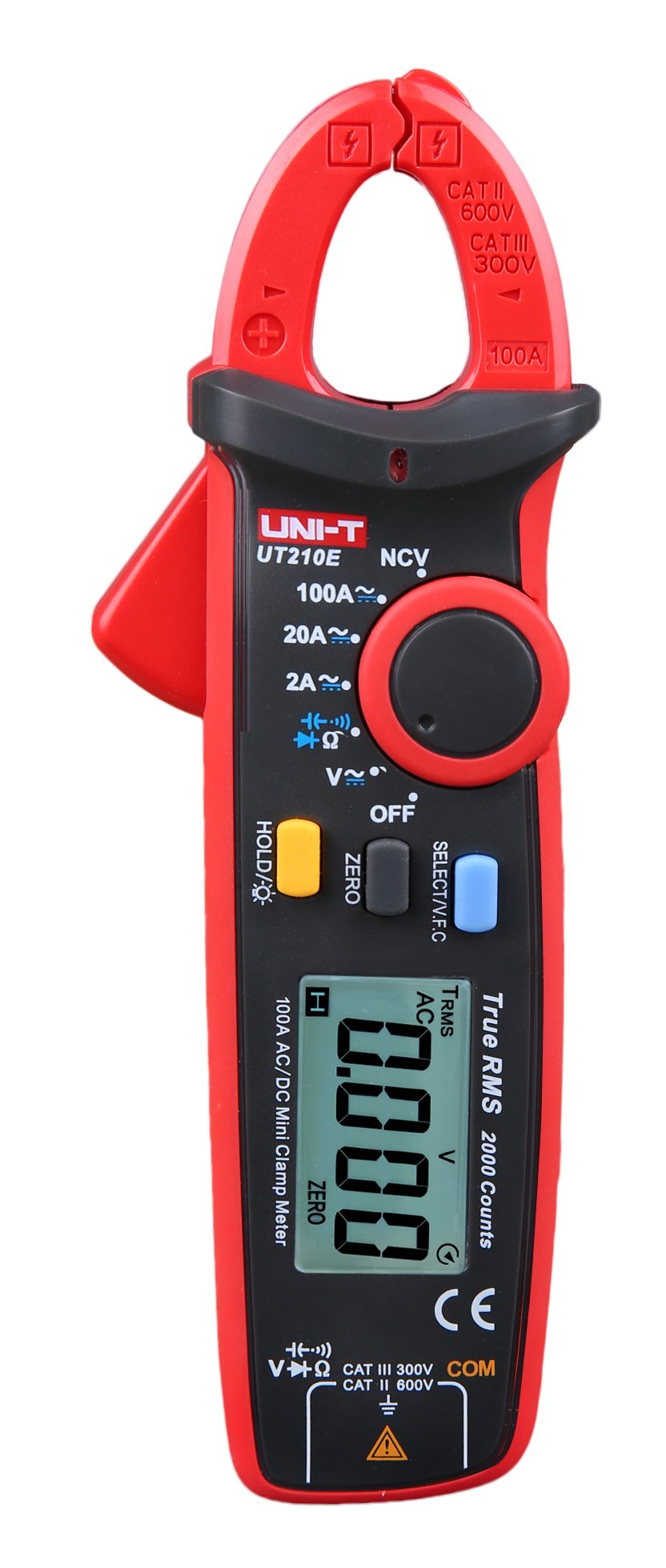

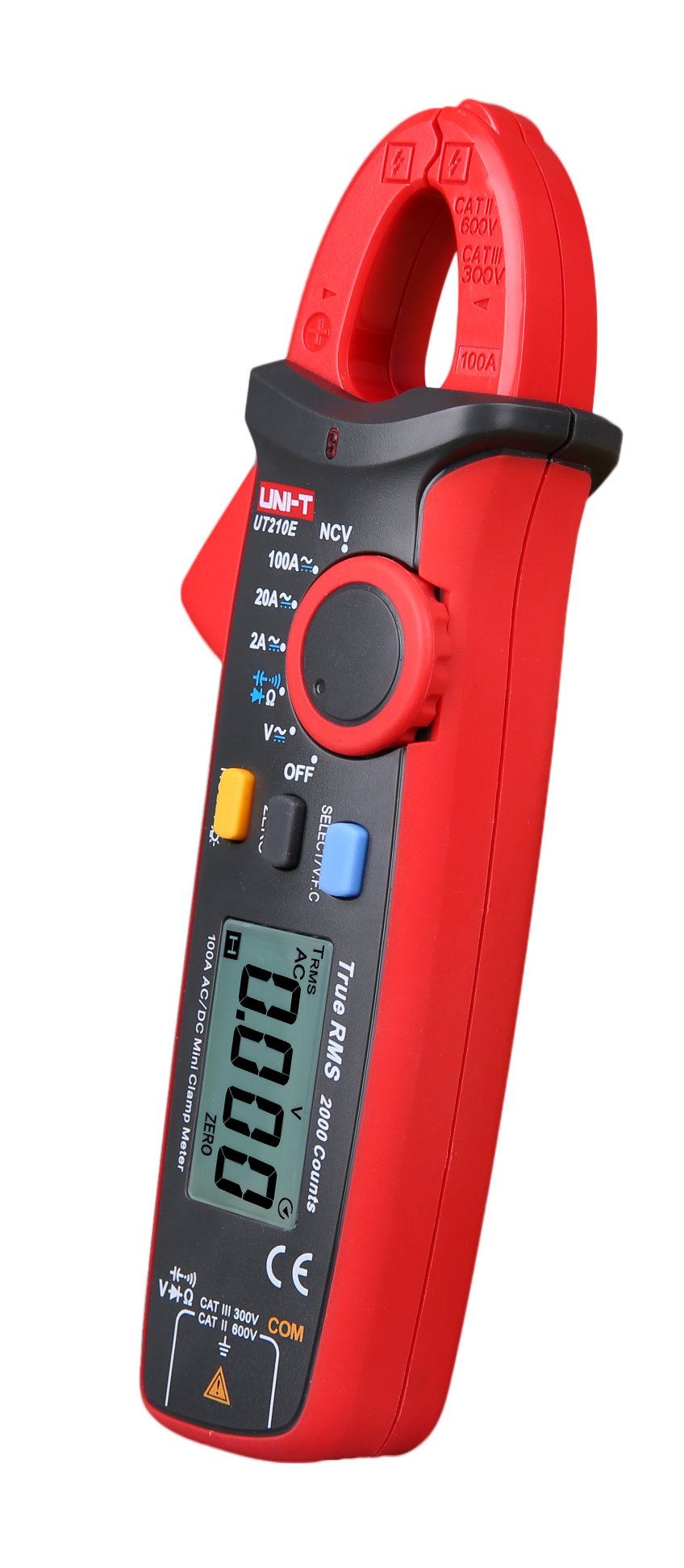

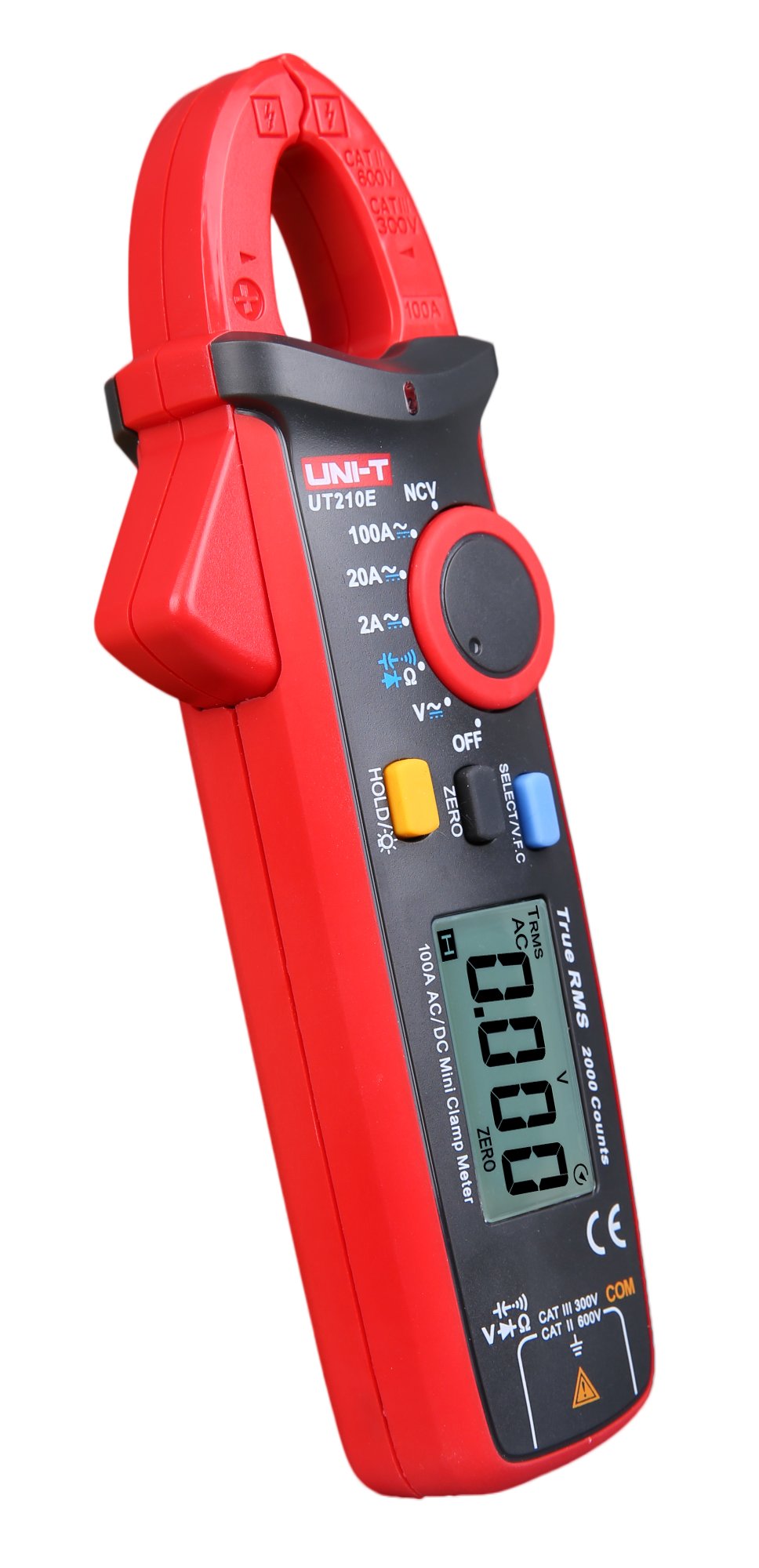

UNI-T UT210E Mini Digital Clamp Meter True RMS AC/DC 100A

Quantity	Unit price
To 9	€48.00
To 24	€47.00
To 49	€45.00
From 50	€42.50

Available, delivery time: 1-3 days

Product number:	200373
Manufacturer number:	UT210E
EAN	6935750521052

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

Product information "UNI-T UT210E Mini Digital Clamp Meter True RMS AC/DC 100A"

Main Product Features

True RMS measurement for accurate AC voltage and current readings on non-linear loads
Measures AC and DC current up to 100A with dedicated ZERO mode for DC zeroing
AC/DC voltage measurement up to 600V, resistance up to 20MΩ, and capacitance up to 20mF
VFC (Variable Frequency Control) low-pass filter for stable testing of variable frequency drives
NCV (Non-Contact Voltage) detection for quick and safe electrical live-wire verification

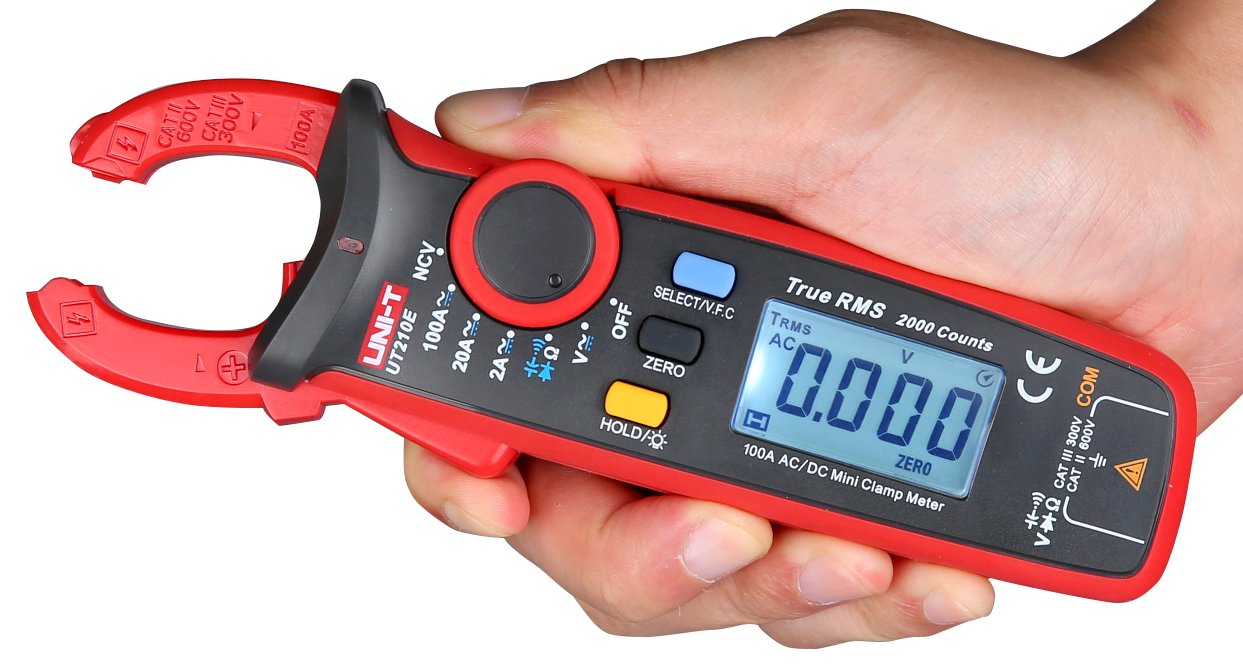

Compact 17mm jaw opening tailored for crowded breaker boxes, vehicle wiring, and tight spaces
Backlit 2000-count LCD display with data hold function and fast sampling rate of 2 to 3 times/s
Diode test, continuity buzzer, auto power off, and low battery indication for efficient workflow

Compact Precision for Demanding Diagnostic Work

When working in modern electrical environments, tight control cabinets, compact distribution boards, and congested vehicle harnesses present unique diagnostic challenges. Standard clamp meters are often too bulky to isolate a single conductor, leaving technicians struggling to take dependable measurements. The UNI-T UT210E Mini Digital Clamp Meter solves this problem by integrating professional-grade diagnostic capabilities into an ultra-compact, ergonomic housing weighing only 170 grams.

Featuring True RMS measurement, the UT210E guarantees accurate readings even when dealing with distorted AC waveforms generated by modern power electronics, switched-mode power supplies, and LED ballasts. Its specialised 17mm jaw opening easily slips between densely packed wires, making it an indispensable diagnostic instrument for electricians, HVAC specialists, field service engineers, and automotive technicians alike.

Advanced Electronics: DC Current & VFC Low-Pass Filter

Unlike standard entry-level clamp meters that only detect alternating current, the UT210E provides high-precision AC and DC current measurement up to 100A. A dedicated ZERO mode allows you to null out residual magnetic fields with a single push of a button before taking critical DC measurements—ideal for tracing parasitic battery drains in automotive systems, inspecting solar inverter outputs, or checking low-voltage DC industrial control circuits.

Equipped with a built-in VFC (Variable Frequency Control) low-pass filter, the UT210E filters out high-frequency interference, enabling accurate and steady voltage measurements on variable frequency motor drives (VFD) and noisy electrical equipment. Combined with continuity testing, diode testing, resistance tracking up to 20MΩ, and capacitance analysis up to 20mF, it delivers the diagnostic range of a full-sized bench meter in a handheld tool.

Certified Safety and Compliance with European Standards

Safety is non-negotiable when working around live electrical panels. The UNI-T UT210E has been engineered and certified to meet stringent European safety standards. Bearing full CE conformity, it complies with CAT II 600V and CAT III 300V safety overvoltage ratings, providing verified protection against voltage transients in building installations and mains-connected equipment. The integrated Non-Contact Voltage (NCV) sensor allows users to verify live cables and sockets instantly without physical metal contact, adding an essential layer of personal protection before beginning any maintenance procedure.

Parameter	Measurement Range	Accuracy
AC Current	100A	±(2.5% + 5)
DC Current	100A	±(2% + 3)
AC Voltage	600V	±(1% + 3)
DC Voltage	600V	±(0.7% + 3)
Resistance	20MΩ	±(1% + 2)
Capacitance	20mF	±(4% + 5)
Jaw Opening	17mm	—
Display Counts	2000 counts	—
Sampling Rate	2 to 3 times per second	—
Diode Test	Around 3.0V	—
Continuity Buzzer	Integrated acoustic signal	—
Safety Rating	CAT II 600V / CAT III 300V (CE)	—
Power Supply	2x 1.5V AAA (R03) Batteries	—
Dimensions & Weight	175mm x 60mm x 33.5mm; 170g	—

Frequently Asked Questions

Can the UNI-T UT210E measure DC current with the clamp jaw?

Yes, the UT210E measures both DC and AC current directly through its clamp jaw up to 100A. It also features a dedicated ZERO mode button to zero out ambient magnetic fields before taking precision DC current measurements.

What is the benefit of the VFC function?

The VFC (Variable Frequency Control) mode activates an internal low-pass filter that suppresses high-frequency noise and harmonics. This enables reliable, stable voltage readings on frequency-controlled devices such as variable speed motor drives and inverters.

Is this clamp meter safe for European domestic and commercial installations?

Yes. The UT210E meets all relevant European safety norms and carries official CE certification. It is rated for CAT II 600V and CAT III 300V environments, ensuring comprehensive user safety during mains installation and troubleshooting tasks.

What accessories are included in the package?

The package contains the UNI-T UT210E Mini Clamp Meter, a pair of premium test leads, a practical carrying bag for storage and transport, 1.5V batteries, and an English user manual.

Technical data

Product number:	200373
Size:	175mm x 60mm x 33.5mm
Weight:	0.12kg

Downloads

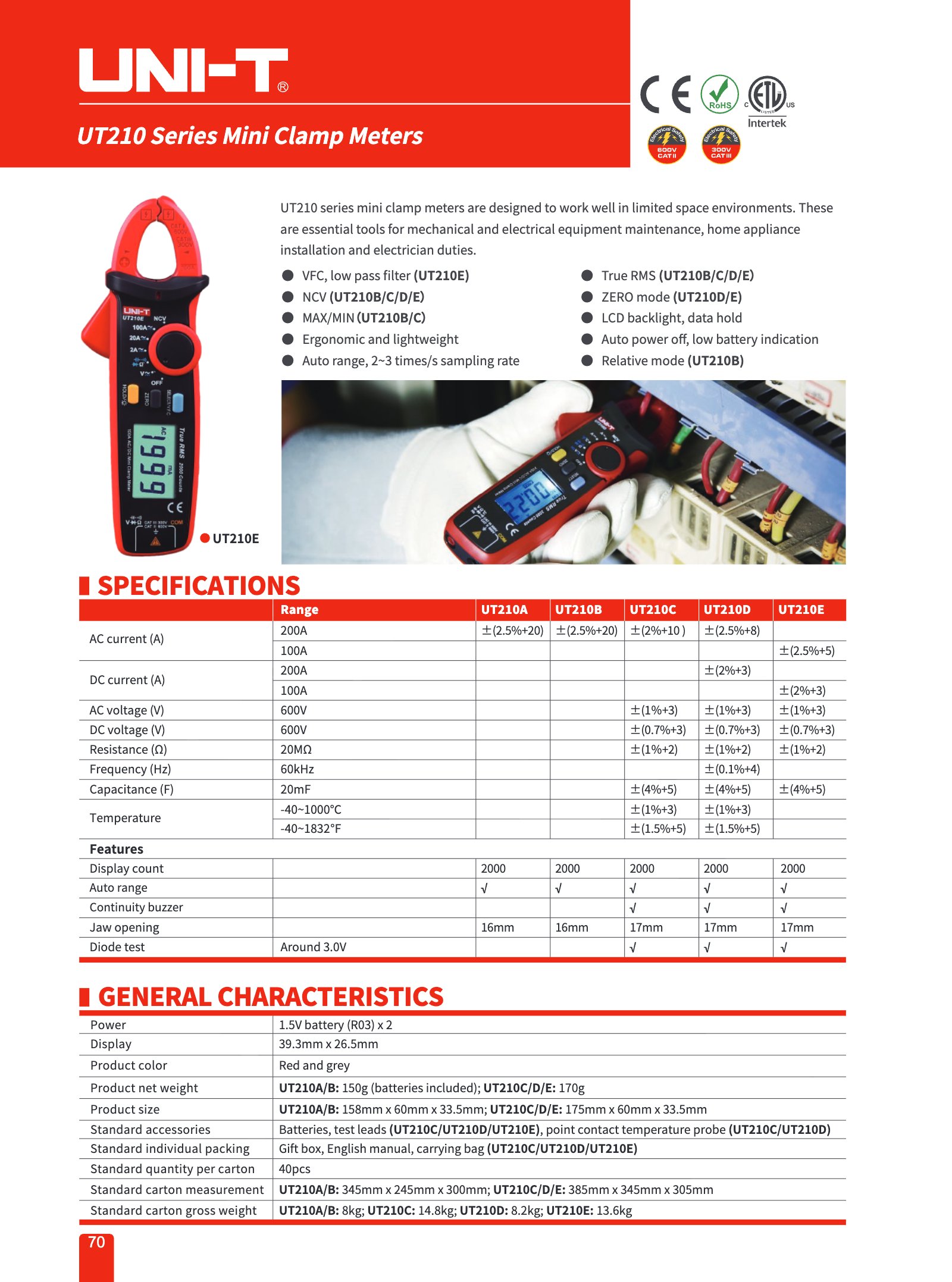

Flyer:	20181224102153668.pdf
Manual:	UT210E-English-Manual.pdf
