UNI-T UT305C+ Infrared Thermometer | -50°C to 2200°C, 55:1 D:S, Data Storage & USB-C
| Product number: | 202731 |
|---|---|
| Manufacturer number: | UT305C+ |
| EAN | 6935750530559 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Produkt-Features
- Extreme Measurement Range: from -50°C to +2200°C for the most versatile industrial and trade applications.

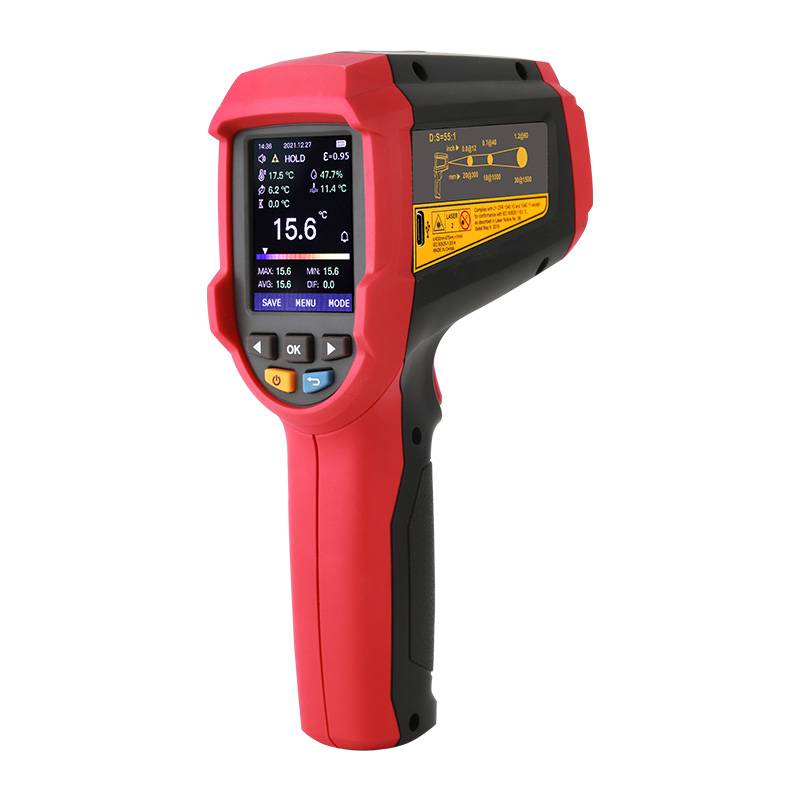

- High Precision: thanks to the professional 55:1 distance-to-spot (D:S) ratio for accurate measurements even from a great and safe distance.
- Versatile Measurement Modes: including infrared professional mode, dew point detection, surface heat conduction detection, and temperature comparison.
- Comprehensive Data Acquisition: with internal memory for 999 readings and easy data export as PDF or CSV via the USB-C interface.
- Long-lasting Battery: allows for over 20 hours of continuous operation and is quickly ready for use again thanks to the rechargeable Li-ion battery.
- Additional Sensors: accurately measures ambient temperature, relative humidity, and supports external Type K thermocouples for contact measurements.

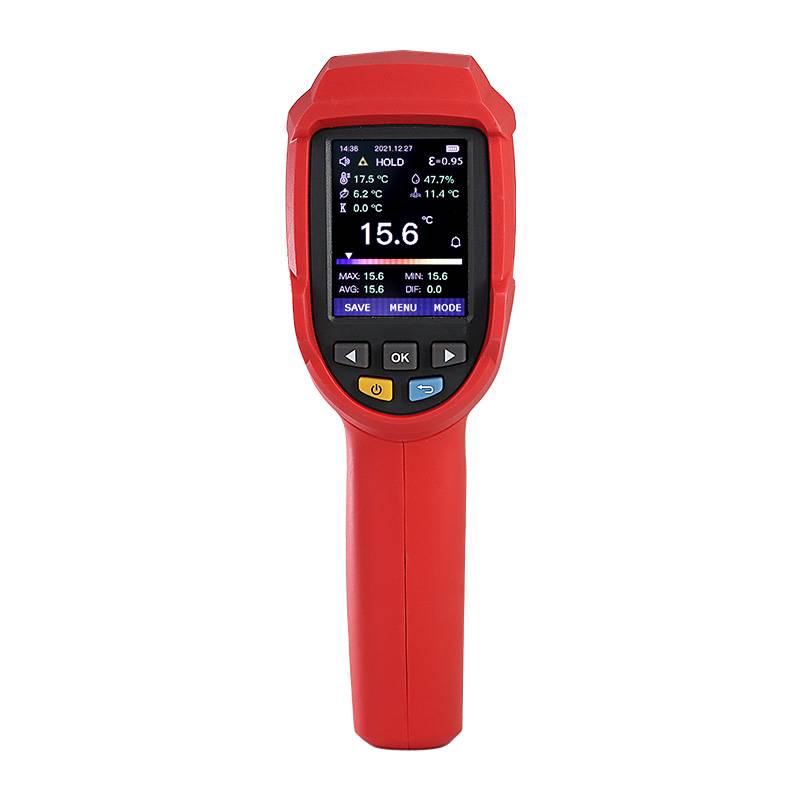

- Clear Color Display: The high-resolution 2.4-inch TFT color LCD clearly and legibly displays all measured values and settings.
Precision Meets Versatility: The UNI-T UT305C+ Infrared Thermometer
When it comes to exact temperature measurements in demanding environments, the UNI-T UT305C+ sets new standards. This professional infrared thermometer is designed for experts who accept no compromises on accuracy, reliability, and functionality. Whether in heavy industry, HVAC maintenance, or quality control, the UT305C+ provides the data you need to make informed decisions.
Engineered for the Most Demanding Measurement Tasks

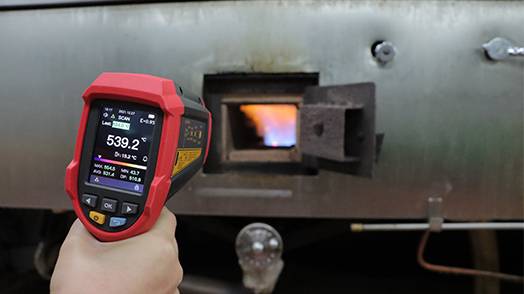

Imagine needing to measure the temperature of a furnace, a remote power line, or a rotating machine part. With the UT305C+, this is no problem. Thanks to its impressive measurement range from -50°C to an extreme +2200°C and the high distance-to-spot ratio of 55:1, you can perform precise measurements from a safe distance. This protects not only you but also your equipment. The measurement results are displayed with crystal clarity on the brilliant 2.4-inch TFT color display.
More Than Just a Thermometer

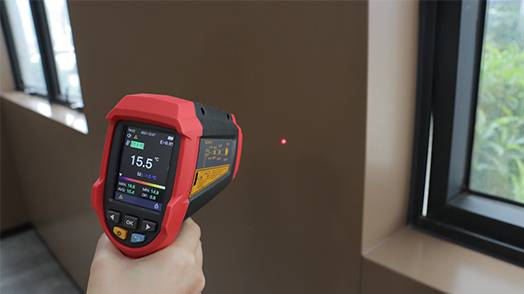

The UT305C+ is a multifunctional diagnostic tool. In addition to pure infrared measurement, it offers special modes for detecting thermal bridges, determining the dew point to prevent mold growth, and measuring ambient temperature and relative humidity. The ability to connect an external Type K thermocouple probe extends its functionality to include precise contact measurements. You can be confident that the UT305C+ is not only precise but also completely safe and complies with all relevant EU standards (CE certified), ensuring worry-free use in a professional setting.
Data Management Made Easy

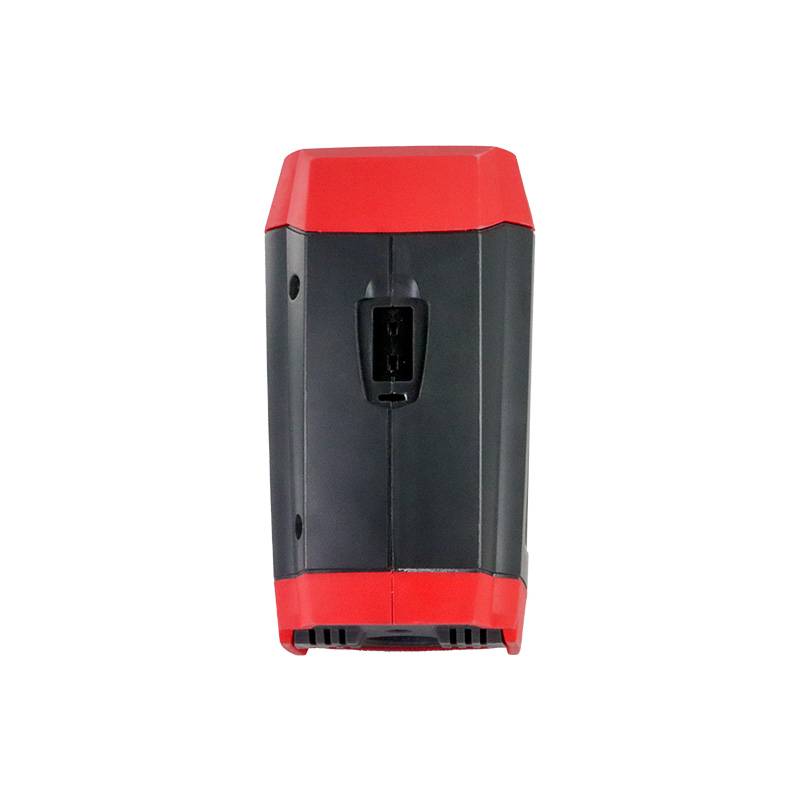

Forget pen and paper. The UT305C+ stores up to 999 readings directly in the device. For further analysis and documentation, you can easily transfer the stored data to your computer as a PDF or CSV file via the modern USB-C interface. The trigger lock function also allows for convenient continuous measurements without having to hold down the trigger.
Detailed Technical Data
| Feature | Specification |
|---|---|
| Infrared Temperature Measurement Range | -50°C to 2200°C (-58°F to 3992°F) |
| Accuracy (Infrared) | ±1.0℃ or ±1.0% of reading (whichever is greater) |
| Distance-to-Spot Ratio (D:S) | 55:1 |
| Emissivity | 0.1 to 1.0 (adjustable) |
| Ambient Temperature Measurement | -10°C to 50°C (14°F to 122°F) |
| Relative Humidity Measurement | 10%RH to 90%RH |
| Type K Thermocouple Measurement Range | -50°C to 1370°C (-58°F to 2498°F) |
| Display | 2.4 inch TFT LCD (320 x 240 pixels) |
| Data Storage | 999 groups |
| Data Output | PDF, CSV via USB-C interface |
| Laser | Single point, Class II, <1mW |
| Battery | Li-ion 3.7V 2600mAh 18650 (rechargeable) |
| Operating Time | Not less than 20 hours |
| Drop Test | 1 meter |
| Dimensions | 205 mm x 65 mm x 124 mm |
| Weight | 375 g |
Frequently Asked Questions (FAQ)
Q: Can I transfer the measurement data directly to a PC?
A: Yes, the UT305C+ has a USB-C interface that allows you to export up to 999 stored readings as a PDF or CSV file. This greatly simplifies documentation and analysis.
Q: Is the device suitable for professional use in harsh industrial environments?
A: Absolutely. With its rugged housing that withstands a 1-meter drop, wide temperature range, and professional measurement modes, it is ideally designed for demanding use in industry and trades.
Q: How long does the battery last with continuous use?
A: The powerful 2600mAh lithium-ion battery allows for a continuous working time of at least 20 hours. It can be conveniently recharged via the USB-C interface.
Q: What is included in the package?
A: The standard package includes the UT305C+ thermometer, a USB-C data cable, a Type K thermocouple probe (bead type), an instruction manual, a warranty card, and a practical tool box for safe storage.
| Product number: | 202731 |
|---|

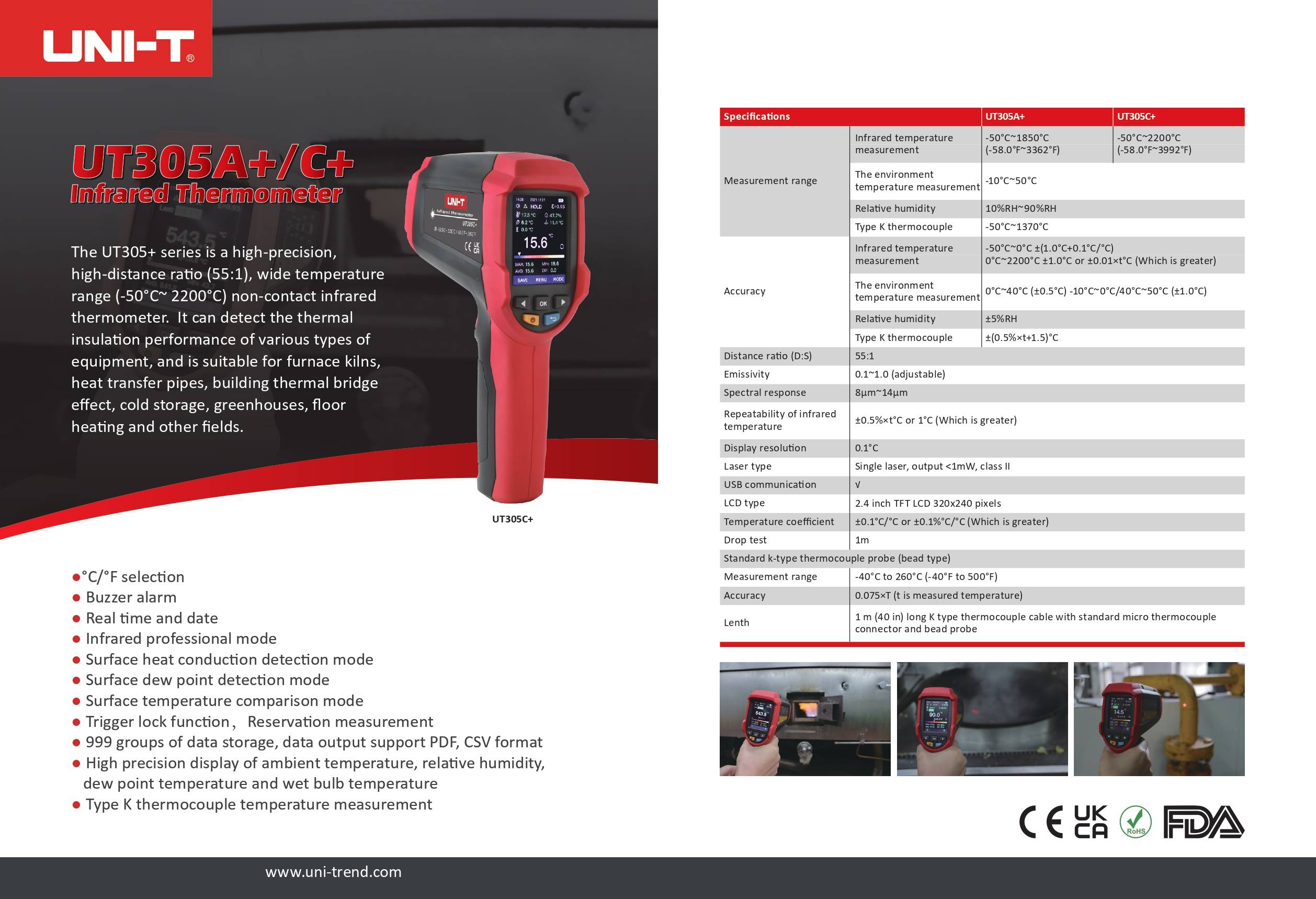

| Flyer: | ut305c+-datenblatt-datasheet.pdf |
|---|---|
