UNI-T UT305S Infrared Thermometer | High-Precision Measurements up to 1550°C
| Product number: | 202709 |
|---|---|
| Manufacturer number: | UT305S |
| EAN | 6935750543337 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Produkt-Features

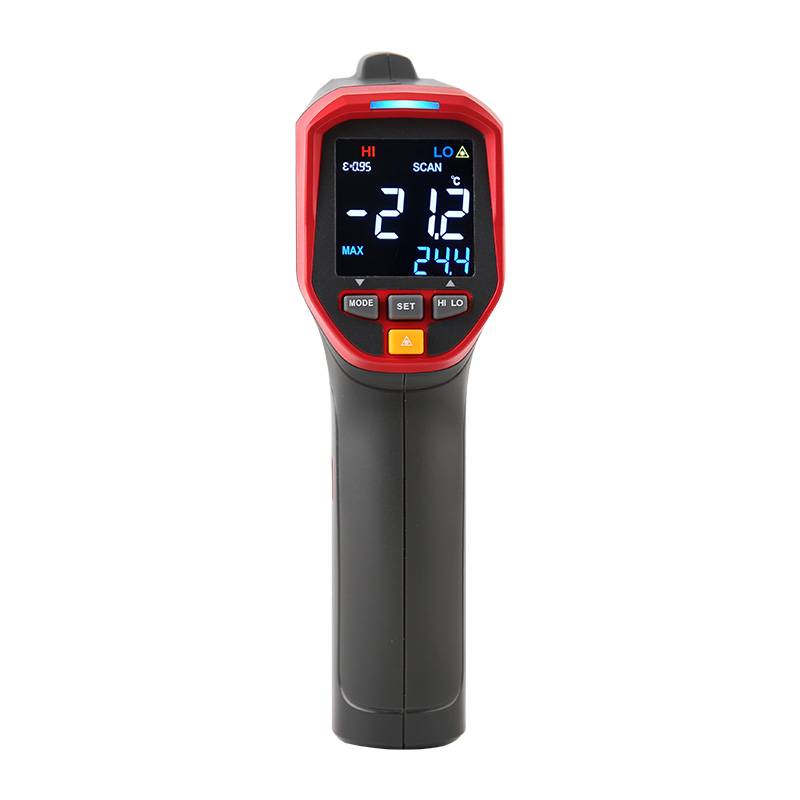

- Extreme Temperature Range: Accurately measure from -50°C up to an impressive 1550°C (-58°F to 2822°F).
- High Accuracy: Rely on precise measurement results for professional applications in industry, maintenance, and quality assurance.
- 50:1 Optics (D:S): The high distance-to-spot ratio allows for safe and accurate measurements from a great distance.
- Adjustable Emissivity: Adjust the emissivity from 0.1 to 1.0 to achieve maximum precision on a wide variety of surface materials.
- Data Analysis Functions: Utilize modes such as MAX, MIN, DIF (Difference), and AVG (Average) for a comprehensive evaluation of your measurements.
- Alarm Function: Define upper and lower temperature limits. A visual and audible alarm warns you when these limits are exceeded.
- USB Interface: Easily transfer measurement data to your PC for further analysis and documentation.

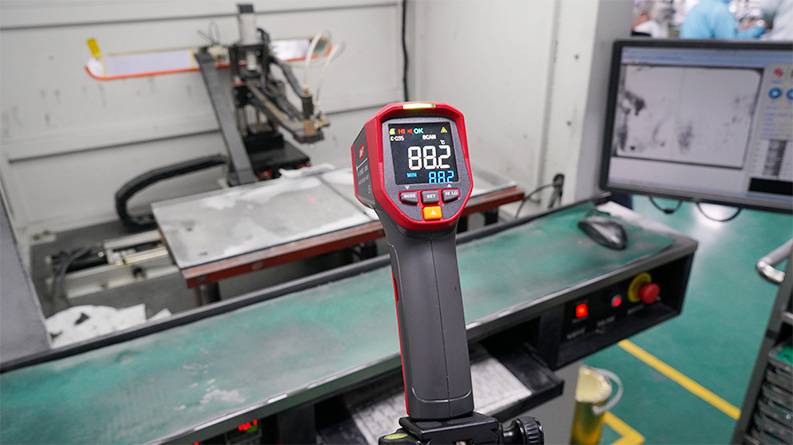

- Tripod Mount: Mount the device on a tripod for stable, long-term measurements and repeatable test setups.

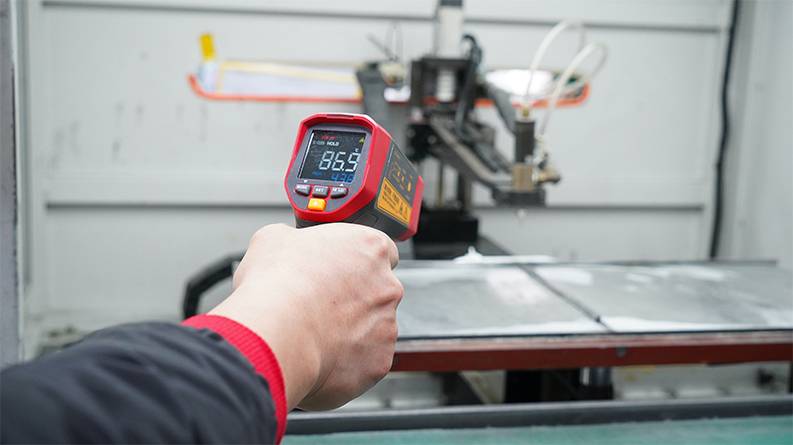

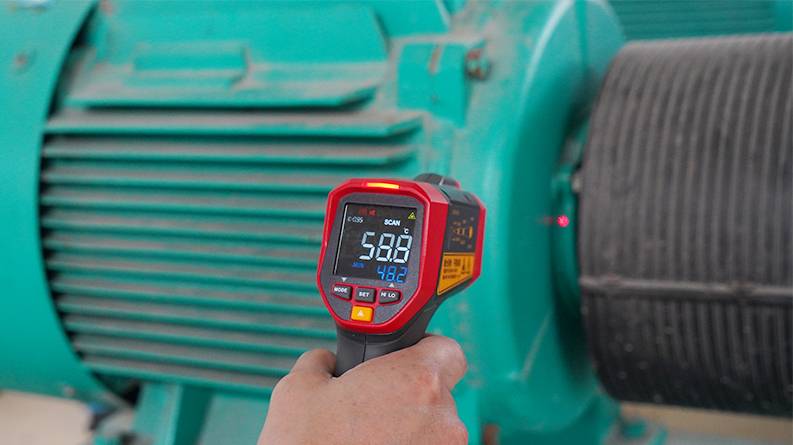

The UNI-T UT305S Infrared Thermometer is the ultimate tool for professionals who make no compromises in non-contact temperature measurement. Whether checking smelting furnaces, in steel processing, maintaining industrial plants, or in demanding quality control – the UT305S reliably delivers precise data where other devices reach their limits. Its rugged construction and ergonomic design ensure comfortable handling even in harsh conditions. Thanks to its intuitive operation and bright, backlit display, you always have all important information in view. This product is, of course, EU compliant, guaranteeing you the highest level of safety and certified quality. Invest in precision and safety for your most demanding measurement tasks.
Technical Specifications
| Model | UT305S |
| Temperature Range | -50°C ~ 1550°C (-58°F ~ 2822°F) |
| Accuracy | ±1.8°C or ±1.8% |
| Distance-to-Spot Ratio (D:S) | 50:1 |
| Response Time | 250ms |
| Emissivity | 0.1 ~ 1.0 (Adjustable) |
| Laser | Dual Laser, Class 2 |
| Spectral Response | 8µm ~ 14µm |
| Functions | MAX/MIN/DIF/AVG, Data Hold, Alarm (Hi/Low), USB Interface |

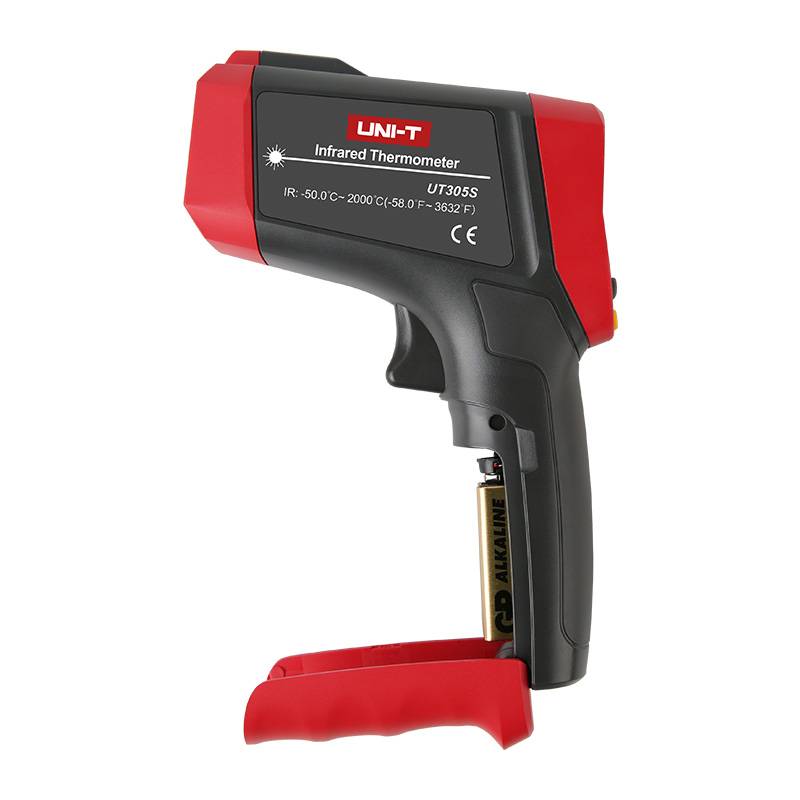

| Power Supply | 9V Battery |

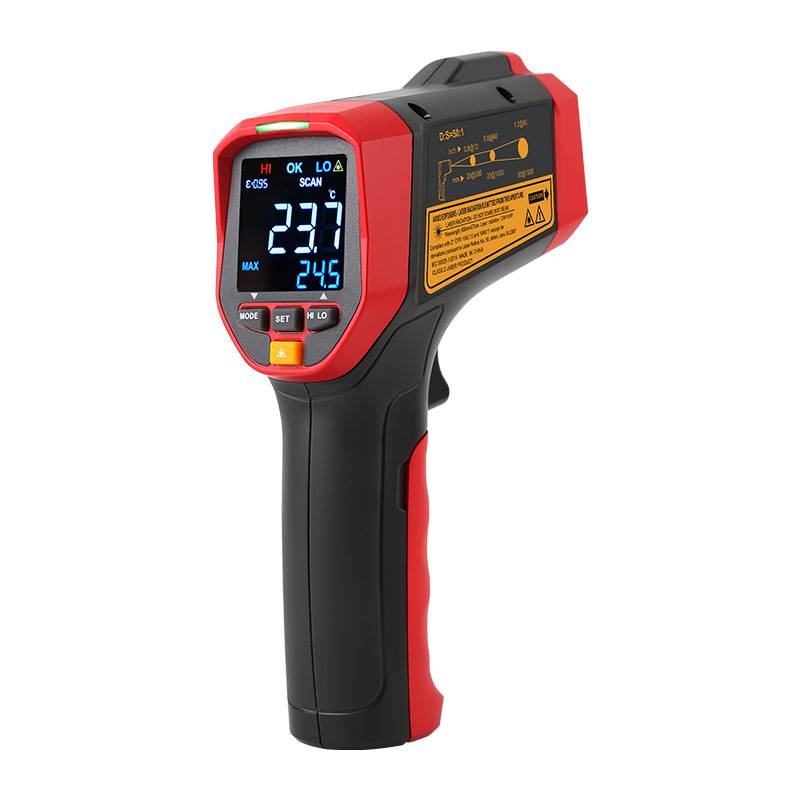

| Display | Backlit LCD |
| Auto Power Off | Yes |
Frequently Asked Questions (FAQ)
Q: Can I use the UT305S to measure human body temperature?
A: No, this device is an industrial thermometer and is not calibrated for medical purposes. It is designed for measuring surface and material temperatures.

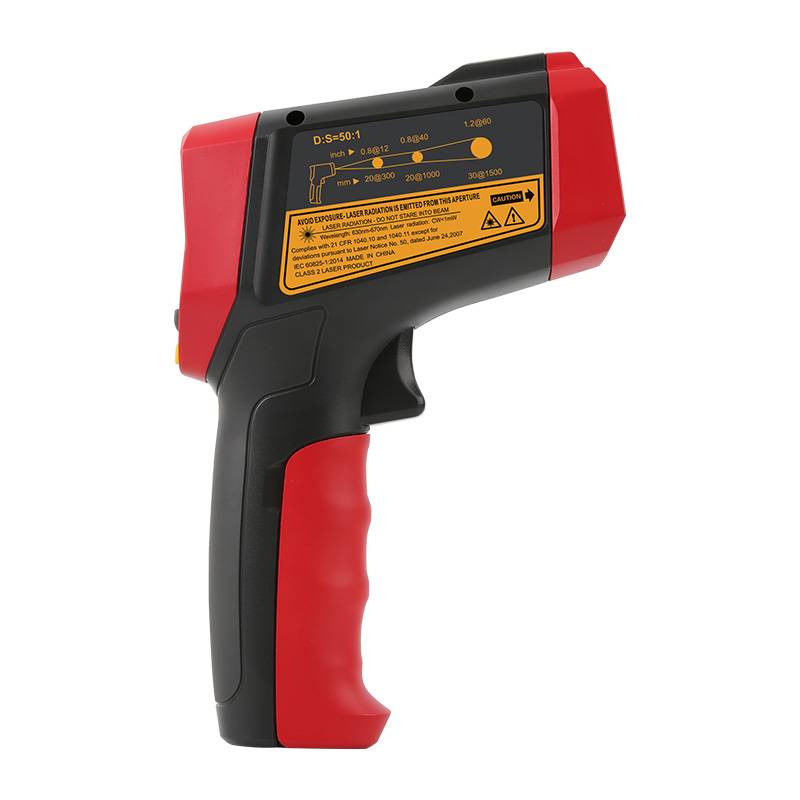

Q: What does a D:S ratio of 50:1 mean?
A: It means that from a distance of 50 units (e.g., meters), you are measuring a spot with a diameter of 1 unit (e.g., 1 meter). The larger the first number, the farther away you can be to accurately measure a small spot.
Q: Is software for the USB data transfer included?
A: Yes, the necessary software for data analysis on a PC is typically included or can be downloaded from the manufacturer's website.
| Product number: | 202709 |
|---|

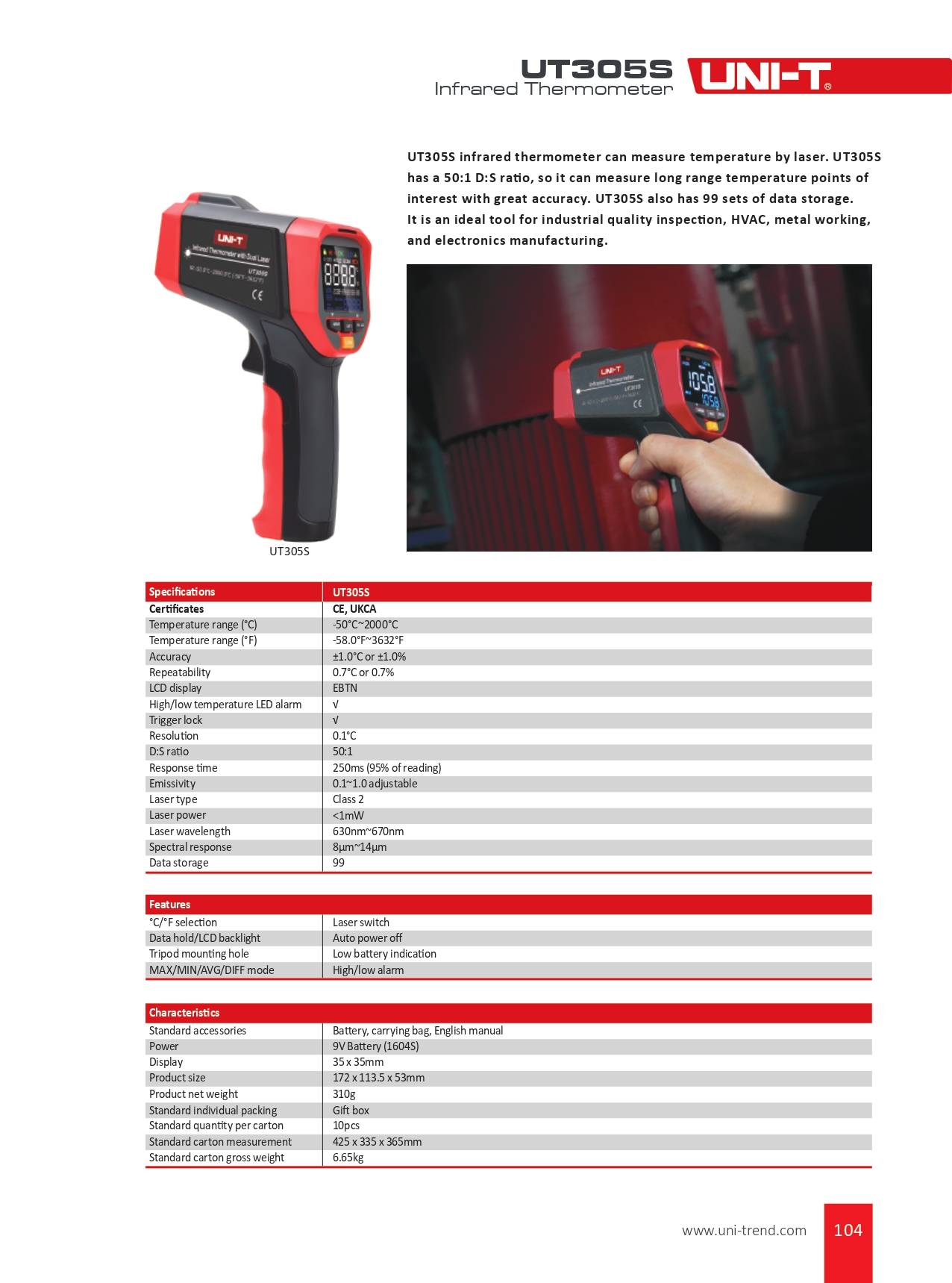

| Flyer: | ut305s-datenblatt-datasheet.pdf |
|---|---|
