UNI-T UT336A Refrigerant Leak Detector | High Sensitivity & Reliable
| Product number: | 202715 |
|---|---|
| Manufacturer number: | UT336A |
| EAN | 6935750533901 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Product-Features
- High Sensitivity: Detects leak rates as low as 3g per year, reliably locating even the smallest leaks.
- Versatile Compatibility: Suitable for all common halogenated refrigerants, including CFCs, HCFCs, and HFCs.
- Adjustable Sensitivity: 6 selectable levels allow for precise adjustment to the specific environment and leak size.
- Audible & Visual Alarm: A loud beep and a 6-level LED indicator clearly alert you upon detecting a leak.
- Quick Start-Up: With a warm-up time of just 3 seconds, the device is ready for immediate use.
- Long Battery Life: Up to 20 hours of continuous operation with just one set of AA batteries.
- User-Friendly Functions: Includes a mute function, battery status indicator, and auto power-off to conserve battery life.
- Automatic Reset: The power-on auto-reset feature automatically calibrates the sensor for precise measurements.
Efficient Leak Detection for HVAC/R Professionals
Never Miss a Leak Again

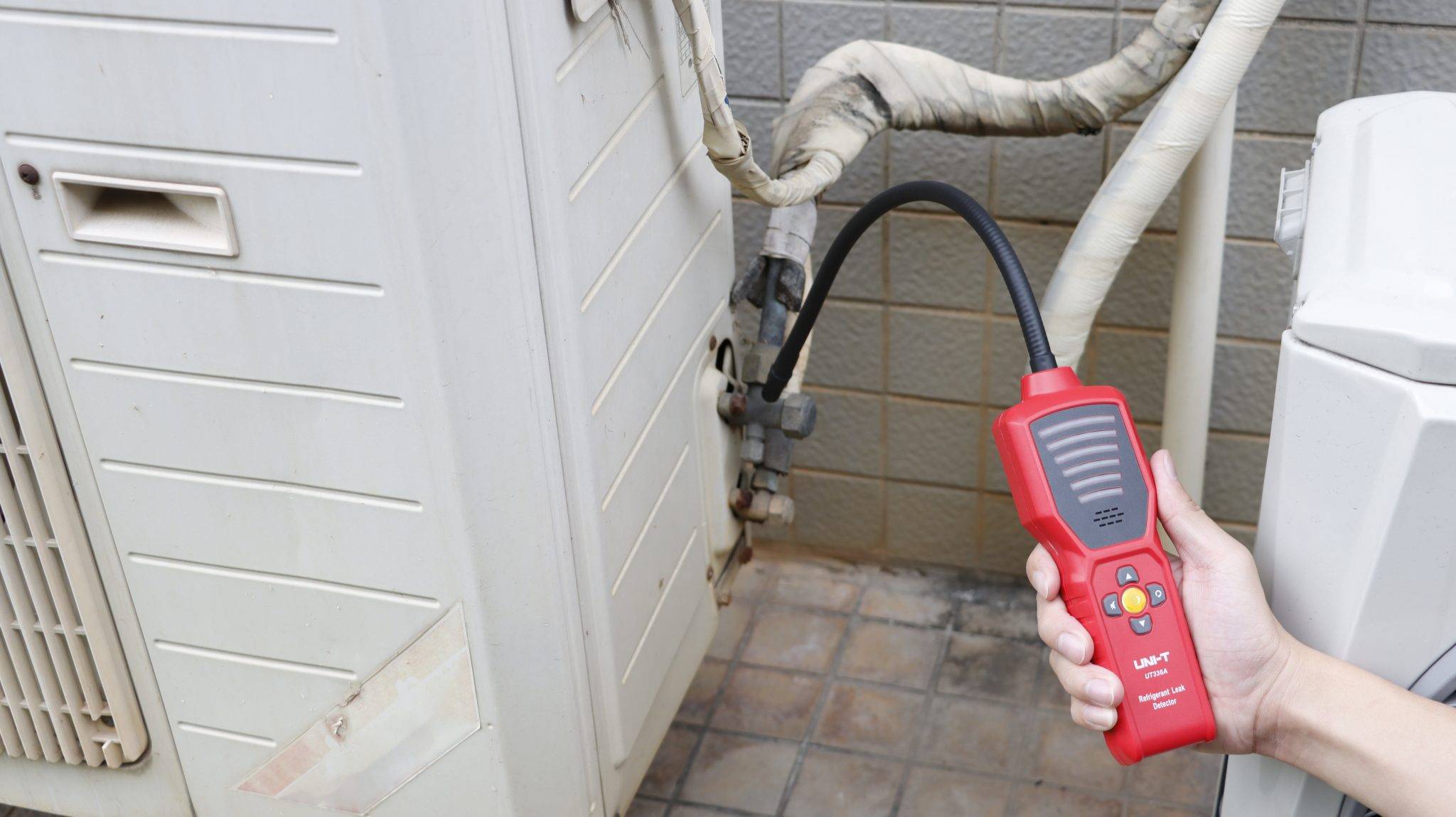

Imagine you're on a job, needing to find a leak in a complex air conditioning system quickly and efficiently. Time is money, and the reliability of your equipment is paramount. The UNI-T UT336A Refrigerant Leak Detector is your trusted partner in these exact situations. Thanks to its highly sensitive negative corona sensor, no leak, however small, will escape your notice. With an impressive sensitivity of 3g/a, you can detect leaks that are invisible to the naked eye or conventional methods. This provides you and your clients with the assurance of a perfectly maintained and sealed system.
Safety and Compliance First
In your profession, safety is non-negotiable. The UT336A is designed to meet the highest safety standards. It is fully CE compliant, meaning it adheres to the strict EU standards for safety, health, and environmental protection. You can be confident that you are holding a tested and safe tool that protects you in your daily work and delivers professional results. Its robust construction and easy operation minimize the risk of errors and maximize your efficiency.
Thoughtfully Designed Down to the Last Detail
From the quick 3-second warm-up time to the long probe life of approximately 50 hours in normal use, the UT336A is built for the demanding workday. The 6-level sensitivity adjustment allows you to perfectly tune the device to the ambient conditions and minimize false alarms. The combined sound and light alarm ensures you won't miss a leak, even in noisy environments. The convenient mute function allows you to work discreetly when needed. The package includes everything you need to get started right away, including batteries and an auxiliary probe.
| Property | Specification |
|---|---|
| Model | UT336A |
| Sensor Type | Negative Corona Sensor |
| Maximum Sensitivity | 3g/a (grams per year) |
| Warm-Up Time | Approx. 3 seconds |
| Sensitivity Levels | 6 levels, adjustable |
| Alarm Indicator | 6-level LED light bar |
| Alarm Type | Audible (beep) and Visual (LED) |
| Battery Status Indicator | Yes |
| Zero Reset | Yes |
| Mute Function | Yes |
| Battery Life | Approx. 20 hours |
| Auto Power Off | Yes |
| Probe Life | Approx. 50 hours in normal use |
| Operating Temperature | 0°C - 50°C |
| Operating Humidity | <95%RH (non-condensing) |
| Power Supply | 4x AA Alkaline Batteries |
| Product Dimensions | 190x65x43mm (excluding probe rod) |
| Product Net Weight | 312g (excluding batteries) |
| Certifications | CE, RoHS |
Frequently Asked Questions (FAQ)
- What types of refrigerants can the UT336A detect?
- The device is designed to detect the three main groups of halogenated refrigerants: CFCs (e.g., R12), HCFCs (e.g., R22), and HFCs (e.g., R134a, R410a).
- Is the device ready to use out of the box?
- Yes, the package includes 4 AA batteries. After inserting the batteries and a short 3-second warm-up time, the device is fully operational.
- How do I know when to replace the probe?

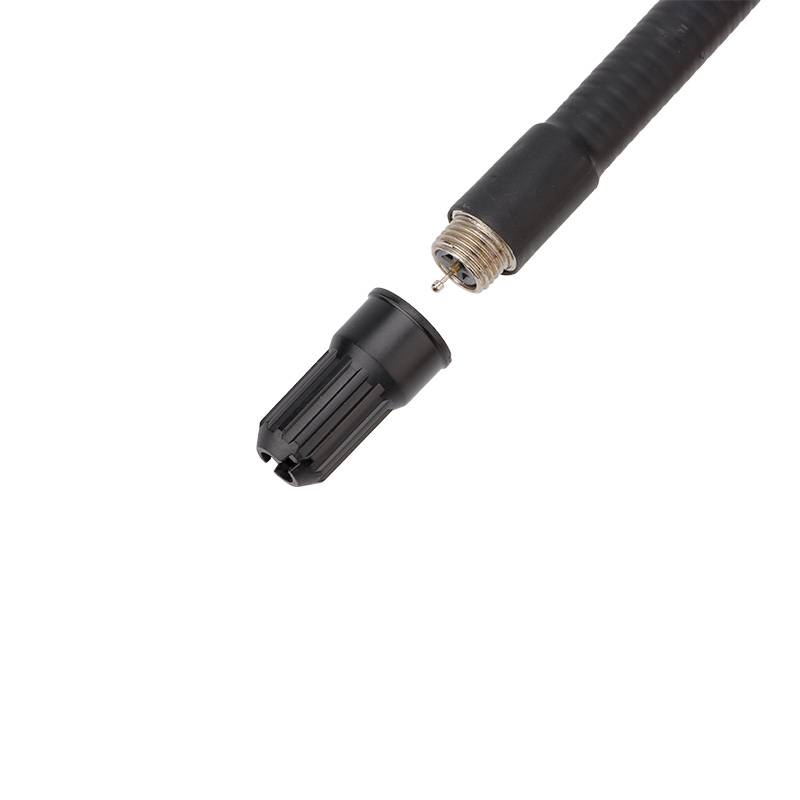

- The probe has a lifespan of about 50 hours under normal conditions. A decrease in sensitivity or unreliable readings may indicate that the probe needs to be replaced. An auxiliary probe is included in the package.
- Can I adjust the sensitivity of the device?
- Yes, the UT336A features 6 sensitivity levels that you can easily adjust with the push of a button to adapt to any situation, such as measuring accurately in contaminated environments.
| Product number: | 202715 |
|---|

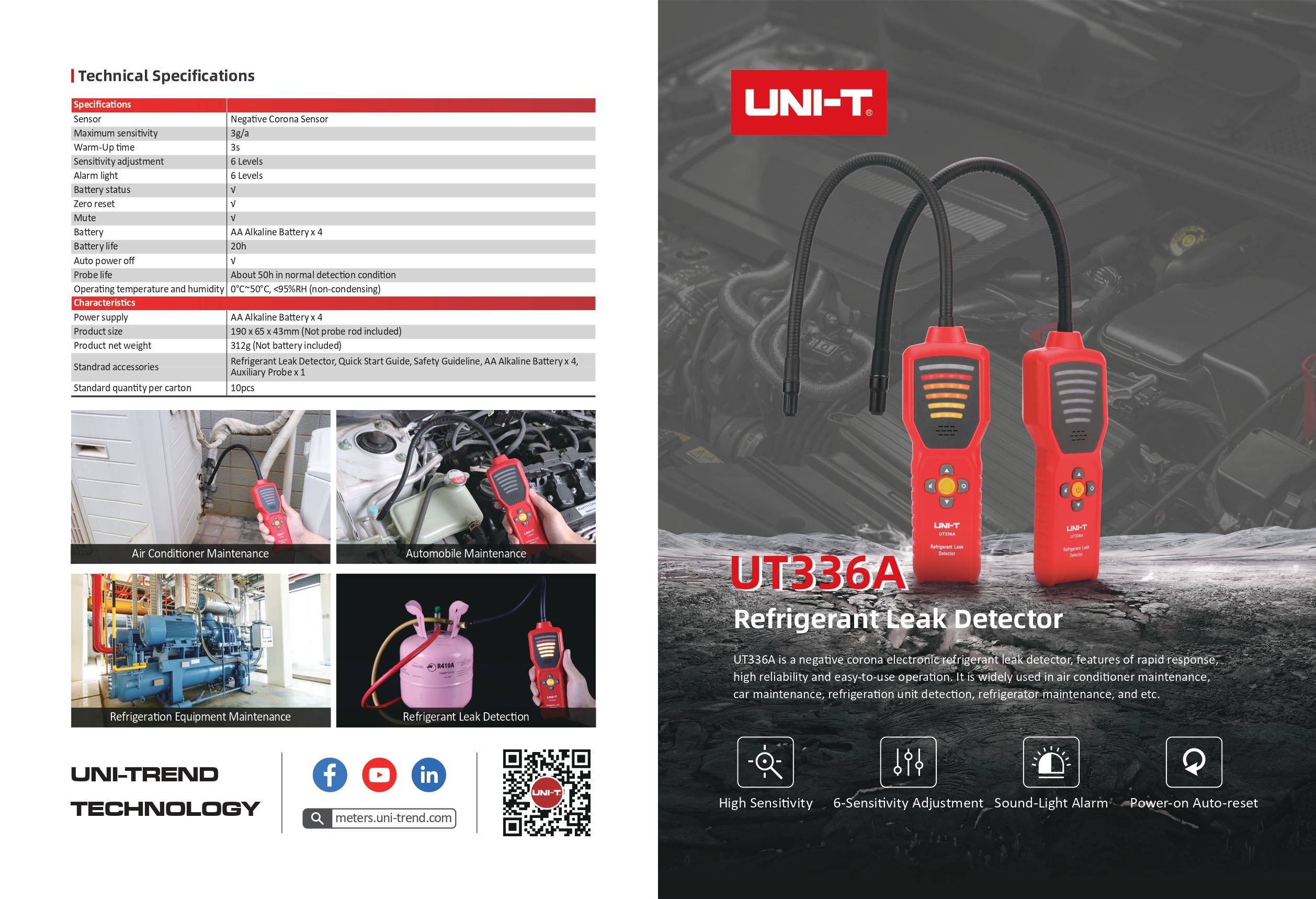

| Flyer: | ut336a-datenblatt-data-sheet.pdf |
|---|---|
| Manual: | UT336A Anleitung Deutsch.pdf |
| Other documents: | UT336A User Manual English.pdf |
