UNI-T UT336E KIT Digital Manifold Gauge with Wireless Clamps
€206.71
Available, delivery time: 1-3 days
| Product number: | 202728 |
|---|---|
| Manufacturer number: | UT336E KIT |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "UNI-T UT336E KIT Digital Manifold Gauge with Wireless Clamps"
Main Product Features

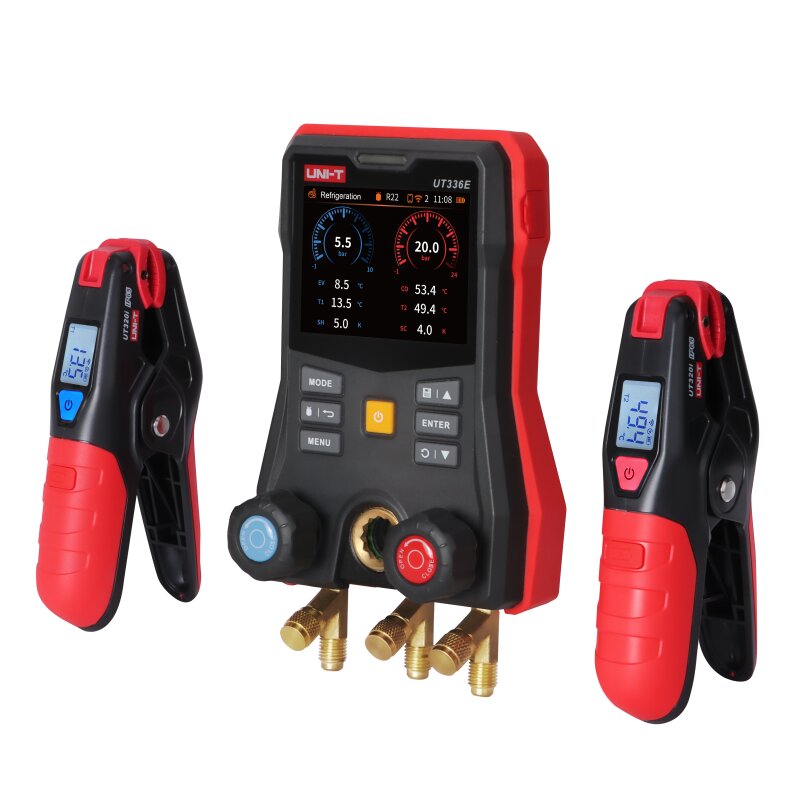

- Comprehensive digital manifold kit including the UT336E digital gauge and two UT320i wireless pipe temperature clamps
- Accurate dual pressure measurement up to 60 bar (±0.5% FS) with automatic calculation of superheat and subcooling

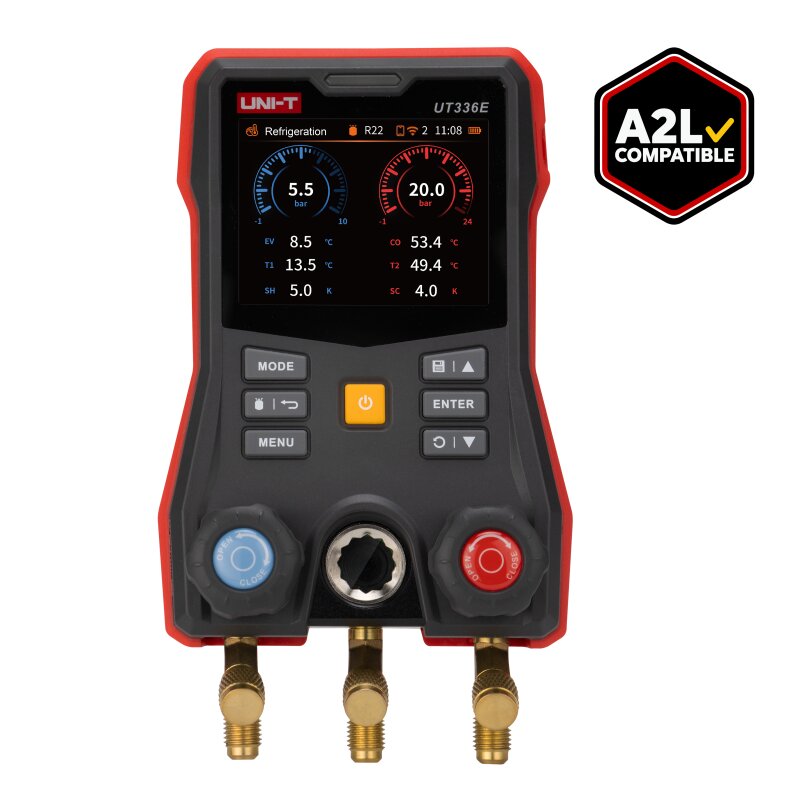

- Extensive built-in database supporting over 162 refrigerants, including A1, A2L, A2, A3, and select B1 types

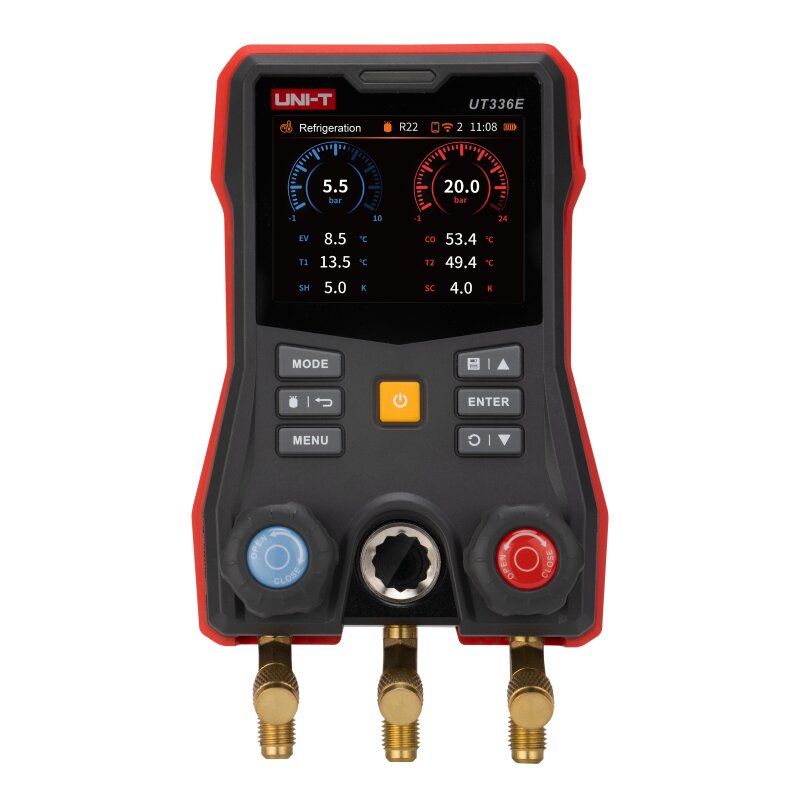

- Vibrant 3.5-inch HD colour display featuring a practical tap-to-wake backlight function for dim plant rooms
- Long wireless communication range up to 100 metres with support for the iENV mobile app (iOS and Android)
- Built-in 5200 mAh rechargeable lithium-ion battery delivering over 30 hours of continuous field operation via USB-C charging
- Robust IP54 housing (IP65 for UT320i clamps) tested for 2-metre drop resistance and equipped with a durable metal suspension hook
- Internal data storage for up to 10,000 logging records with easy report export functionality
Next-Generation Precision for HVAC and Heat Pump Engineering

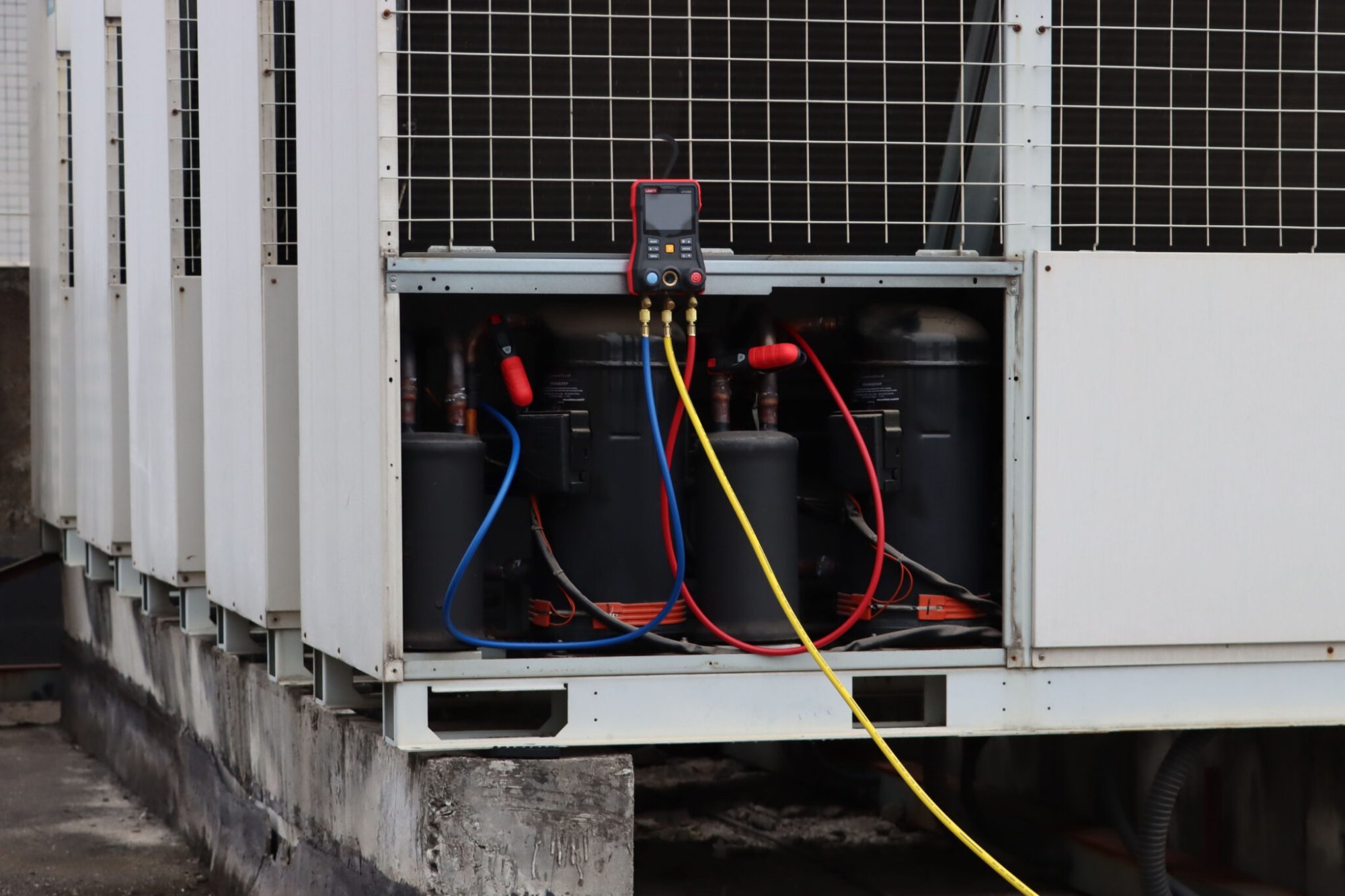

The UNI-T UT336E KIT represents a cutting-edge solution engineered specifically for modern heating, ventilation, air conditioning, and refrigeration (HVAC/R) engineers. From initial system commissioning and routine servicing to complex fault diagnosis on commercial refrigeration and residential heat pump systems, this intelligent digital manifold eliminates the guesswork of analogue gauges. By pairing the dual-pressure digital manifold with two wireless UT320i pipe clamp probes, technicians can observe real-time suction and liquid line temperatures, high- and low-side pressures, and dynamic superheat and subcooling calculations simultaneously on a single, brilliant display.
As regulatory frameworks and environmental standards across Europe drive the adoption of alternative refrigerants with lower global warming potential, having a tool that adapts effortlessly is vital. The UT336E comes pre-loaded with comprehensive data on more than 162 refrigerants, spanning traditional A1 compounds up to mildly flammable A2L, A2, and hydrocarbon A3 refrigerants. Technicians can switch profiles in seconds without needing manual conversion charts or cumbersome pressure-temperature slide rules.
Seamless Wireless Workflow with the iENV Mobile Ecosystem

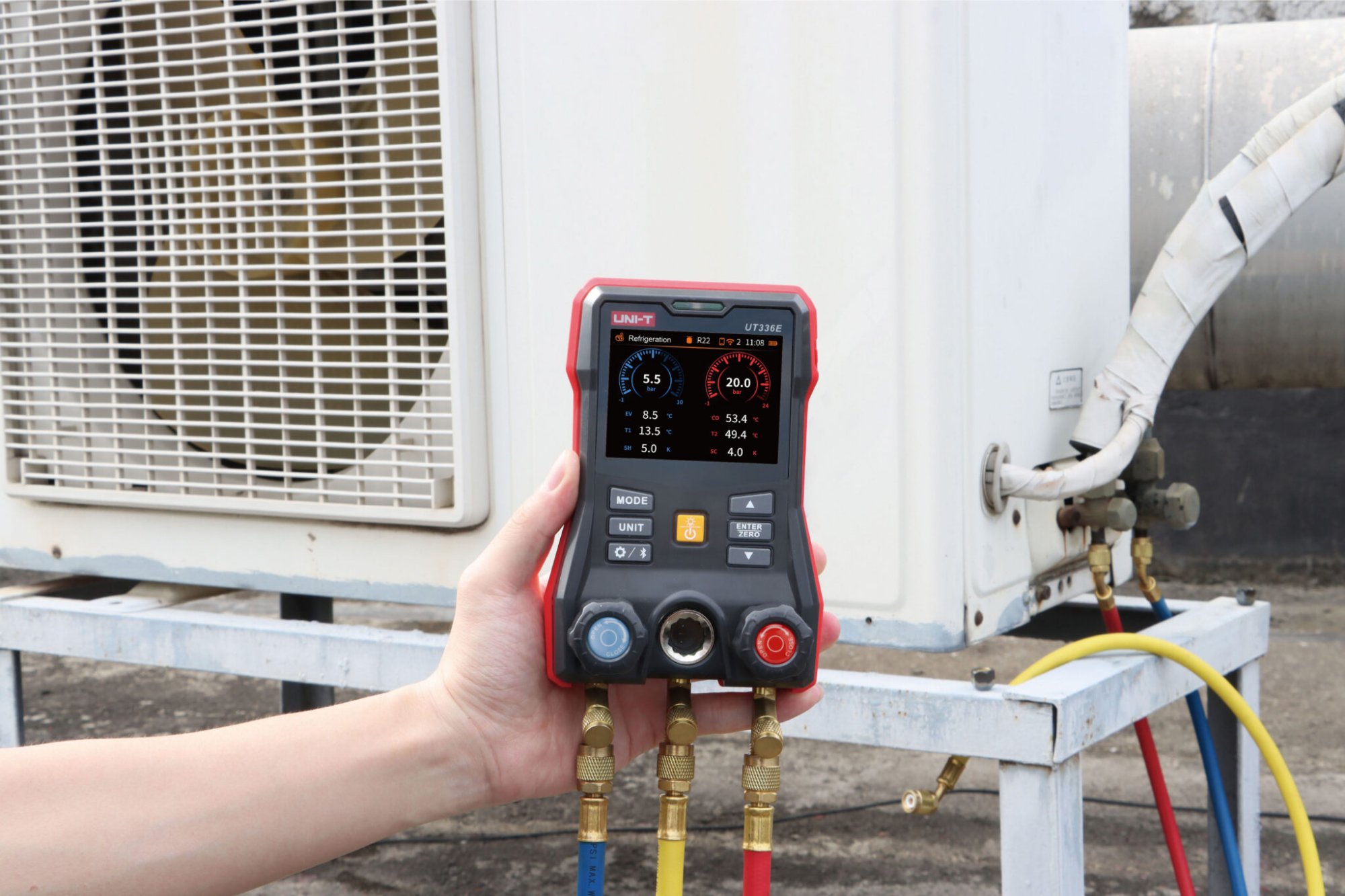

Modern job sites demand speed, traceability, and collaborative reporting. With integrated Bluetooth connectivity reaching up to 100 metres in line-of-sight conditions, the UT336E KIT allows technicians to monitor system parameters remotely via the dedicated iENV application on iOS and Android smartphones or tablets. Whether working outside an acoustic enclosure or checking evaporator performance across large commercial premises, live readings remain instantly accessible. The kit also pairs seamlessly with optional smart vacuum gauges such as the UT336V for deep evacuation tracking. On-board memory accommodates up to 10,000 data logging points, allowing comprehensive pressure holding and leak-decay tests to be documented, saved, and exported directly into professional handover reports for clients.
Rugged Job-Site Durability and Certified EU Safety Standards

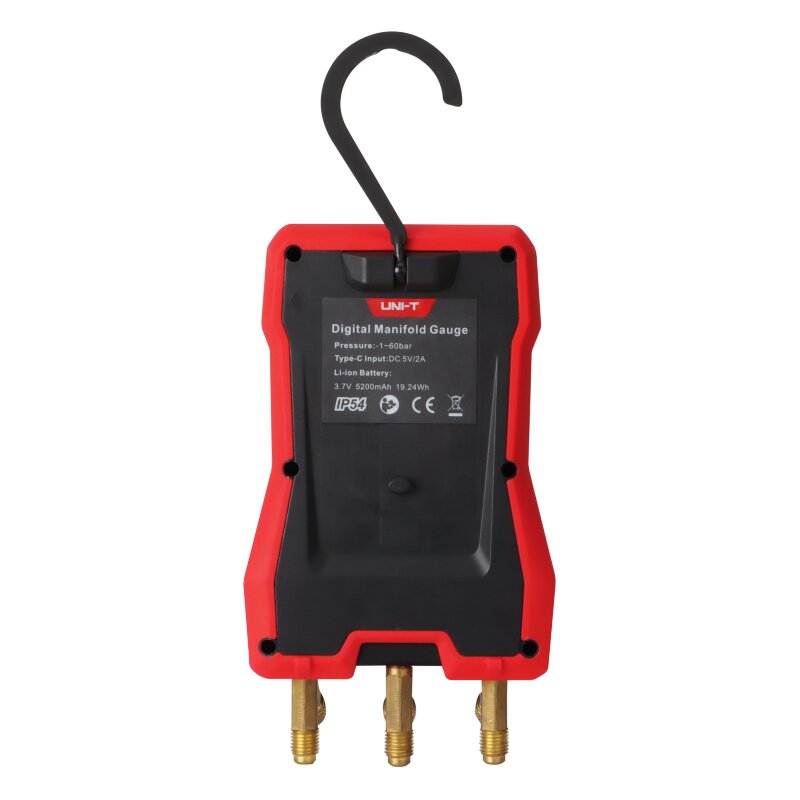

Demanding field environments require measurement equipment that can withstand daily knocks, moisture, and dust. The UT336E features a reinforced impact-resistant chassis rated to IP54 and drop-tested from up to 2 metres, while the included UT320i temperature clamps boast an IP65 ingress protection rating. A sturdy, foldable metal hook allows secure hands-free placement on piping or frames during long service sessions. Power is delivered by a high-capacity 5200 mAh lithium-ion battery, eliminating the ongoing cost and environmental waste of disposable alkaline cells and providing over 30 hours of runtime between fast USB-C charges.
Safety and regulatory rigor are paramount when handling pressurised systems and next-generation refrigerants. Technicians and workshop managers across the European Union can deploy the UT336E KIT with total confidence: the instrument is thoroughly certified to meet all relevant European safety and electromagnetic compatibility directives (CE conformity) as well as RoHS compliance standards, ensuring dependable and hazard-free operation across industrial, commercial, and domestic HVAC/R applications.

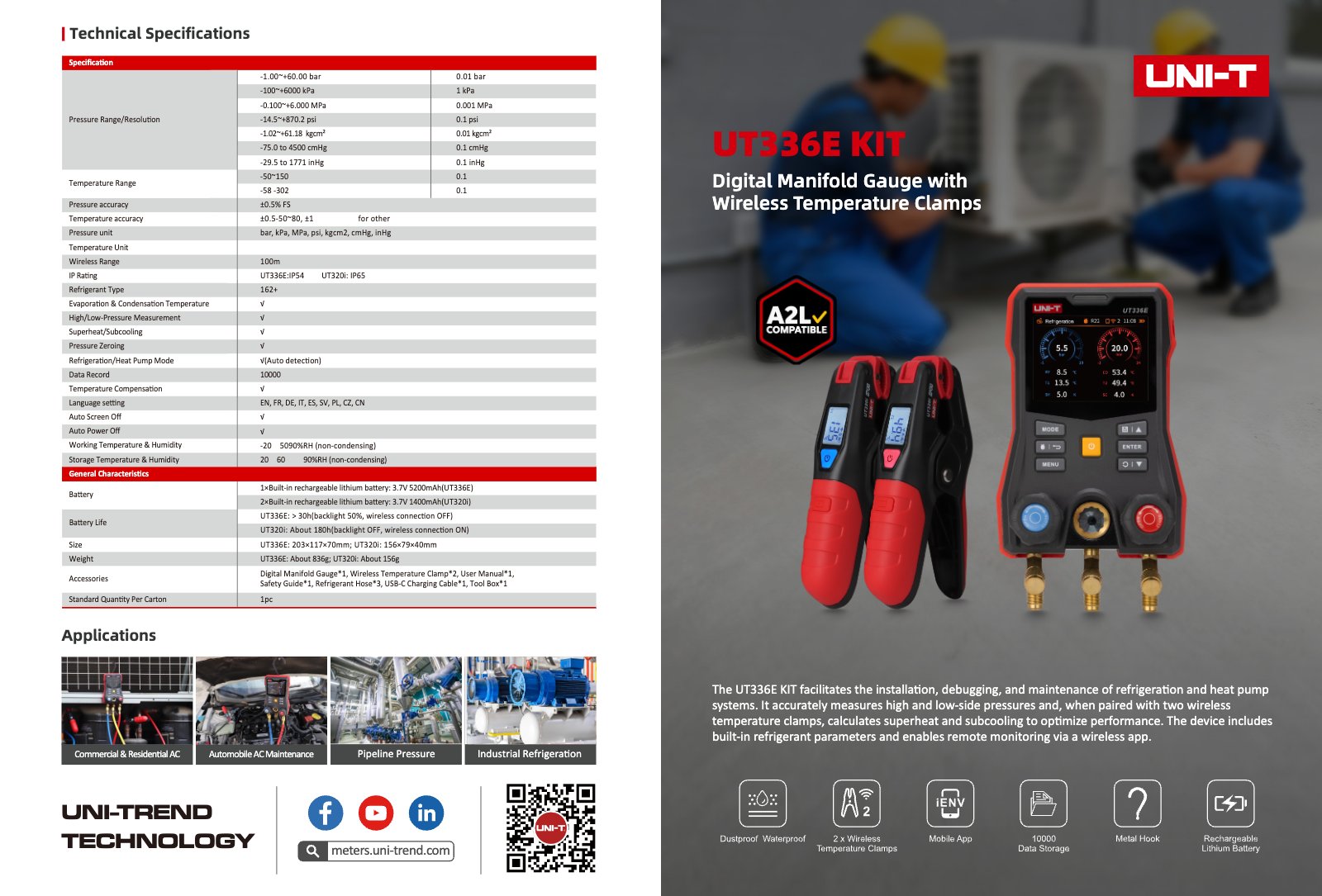

Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Pressure Measuring Range | -1.00 to +60.00 bar (-14.5 to +870.2 psi / -0.100 to +6.000 MPa) |
| Pressure Accuracy | ±0.5% Full Scale (FS) |
| Pressure Resolution | 0.01 bar / 0.1 psi / 0.001 MPa / 1 kPa / 0.01 kg/cm² |
| Pressure Units | bar, kPa, MPa, psi, kg/cm², cmHg, inHg |
| Temperature Measuring Range | -50 °C to +150 °C (-58 °F to +302 °F) |
| Temperature Accuracy | ±0.5 °C (-50 °C to +80 °C), ±1.0 °C (remaining range) |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| Supported Refrigerants | 162+ profiles (A1, A2L, A2, A3, select B1; NOT suitable for NH3/R717 ammonia) |
| Display | 3.5-inch HD colour display with tap-to-wake backlight |
| Wireless Connectivity & Range | Bluetooth (iENV App), up to 100 m line-of-sight |
| Data Logging Capacity | Up to 10,000 measurement records |
| Ingress Protection Rating | UT336E: IP54 / UT320i Clamps: IP65 |
| Drop Resistance | Up to 2.0 m |
| Port Connections | 3 × 1/4 inch SAE standard brass interfaces |
| Power Supply | Built-in 3.7 V 5200 mAh rechargeable lithium-ion battery |
| Operating Battery Life | > 30 hours (50% backlight, wireless off) |
| Charging Interface | USB Type-C |
| Operating Environment | -20 °C to +50 °C, <90% RH (non-condensing) |
| Dimensions & Weight (UT336E) | 203 × 117 × 70 mm, approx. 836 g |
| Dimensions & Weight (UT320i) | 156 × 79 × 40 mm, approx. 156 g |
| Safety & Compliance | CE, RoHS compliant |
| Included Accessories | 1× UT336E gauge, 2× UT320i wireless clamps, 3× refrigerant hoses, USB-C cable, carry case, manual |
Frequently Asked Questions (FAQ)
Can the UT336E KIT be used with flammable A2L and A3 refrigerants?
Yes. The UT336E includes integrated data profiles and safe hardware handling for modern A2L, A2, and hydrocarbon A3 refrigerants such as R32, R454B, and R290. Please note that the unit is not compatible with ammonia (R717 / NH3) systems.
How does the automatic superheat and subcooling calculation work?

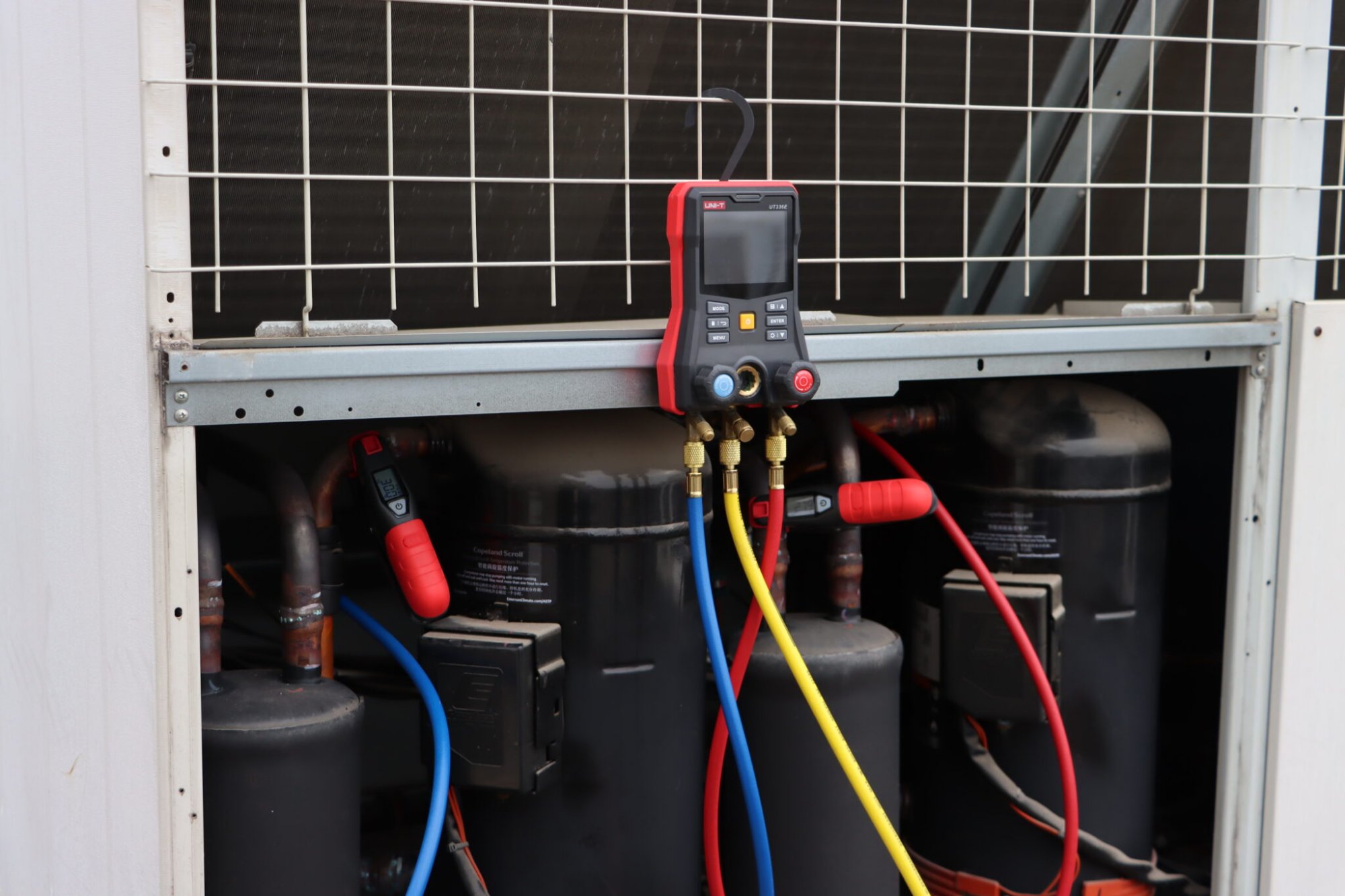

Once you select your active refrigerant from the menu, the UT336E measures the operating pressures to determine the exact evaporation and condensation temperatures. When the wireless UT320i clamps are attached to the suction and liquid pipes, the manifold combines pressure and pipe temperature data to display superheat (SH) and subcooling (SC) values in real time.
How do I view and export data using the mobile app?
The kit connects wirelessly via Bluetooth to the UNI-T iENV app, available for free on both iOS and Android. From the app, you can monitor live readings, review pressure-decay tests, track vacuum trends, and export complete reports for your servicing records.
What is included in the UT336E KIT package?

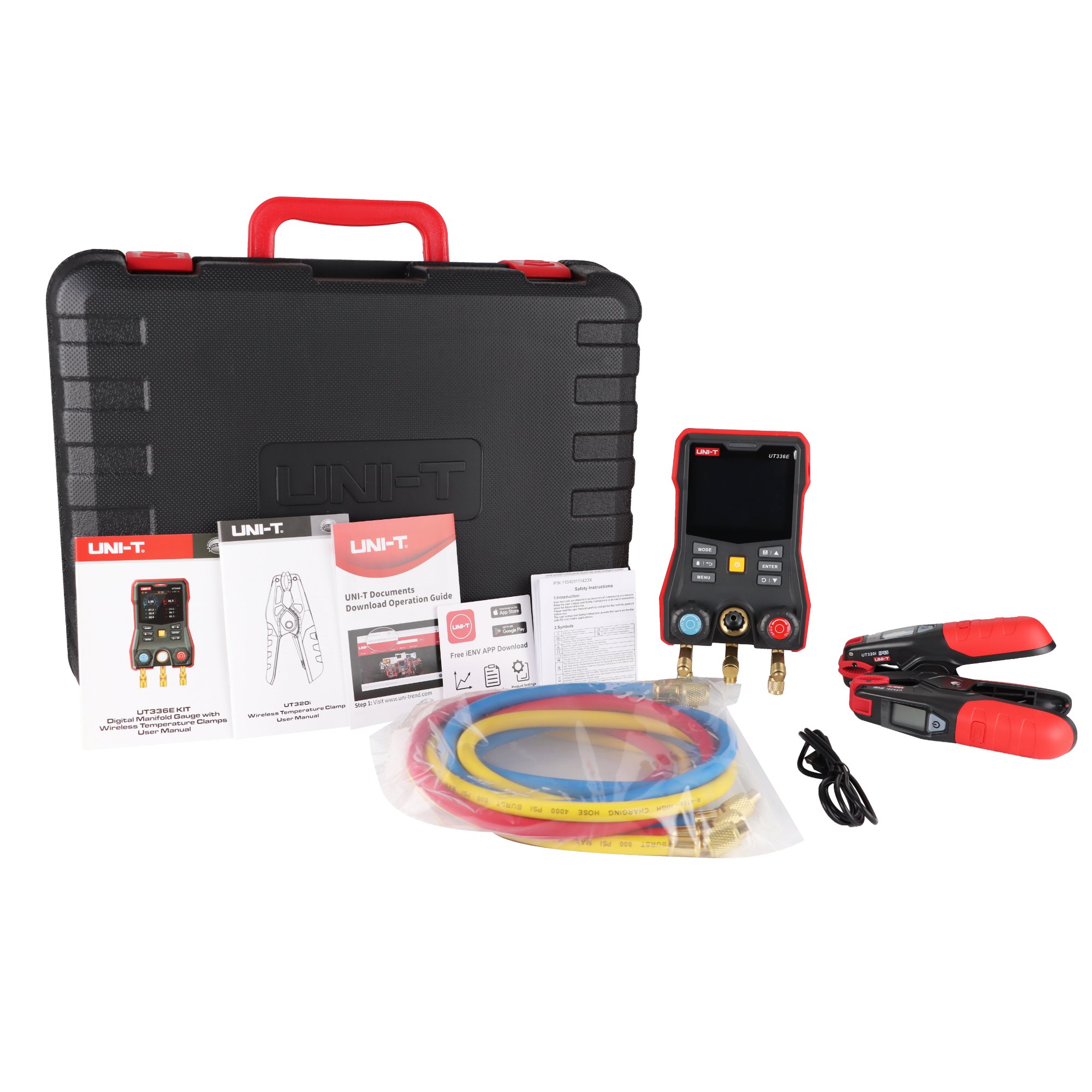

The kit comes fully equipped in a hard-shell protective carry case. It includes the UT336E digital manifold gauge, two UT320i wireless temperature clamps, three high-quality colour-coded refrigerant charging hoses (1/4 inch SAE), a USB-C charging cable, and the user documentation.
Does the device meet European Union safety standards?
Yes. The UNI-T UT336E KIT carries full CE certification and complies with relevant European electromagnetic, low-voltage, and environmental standards, including RoHS conformity, ensuring high reliability and occupational safety on European work sites.
