UNI-T UT663B Industrial Borescope 1080p 180° Articulating Camera 1m
€135.99
Available, delivery time: 1-3 days
| Product number: | 202675 |
|---|---|
| Manufacturer number: | UT663B |
| EAN | 6935750566329 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Product information "UNI-T UT663B Industrial Borescope 1080p 180° Articulating Camera 1m"

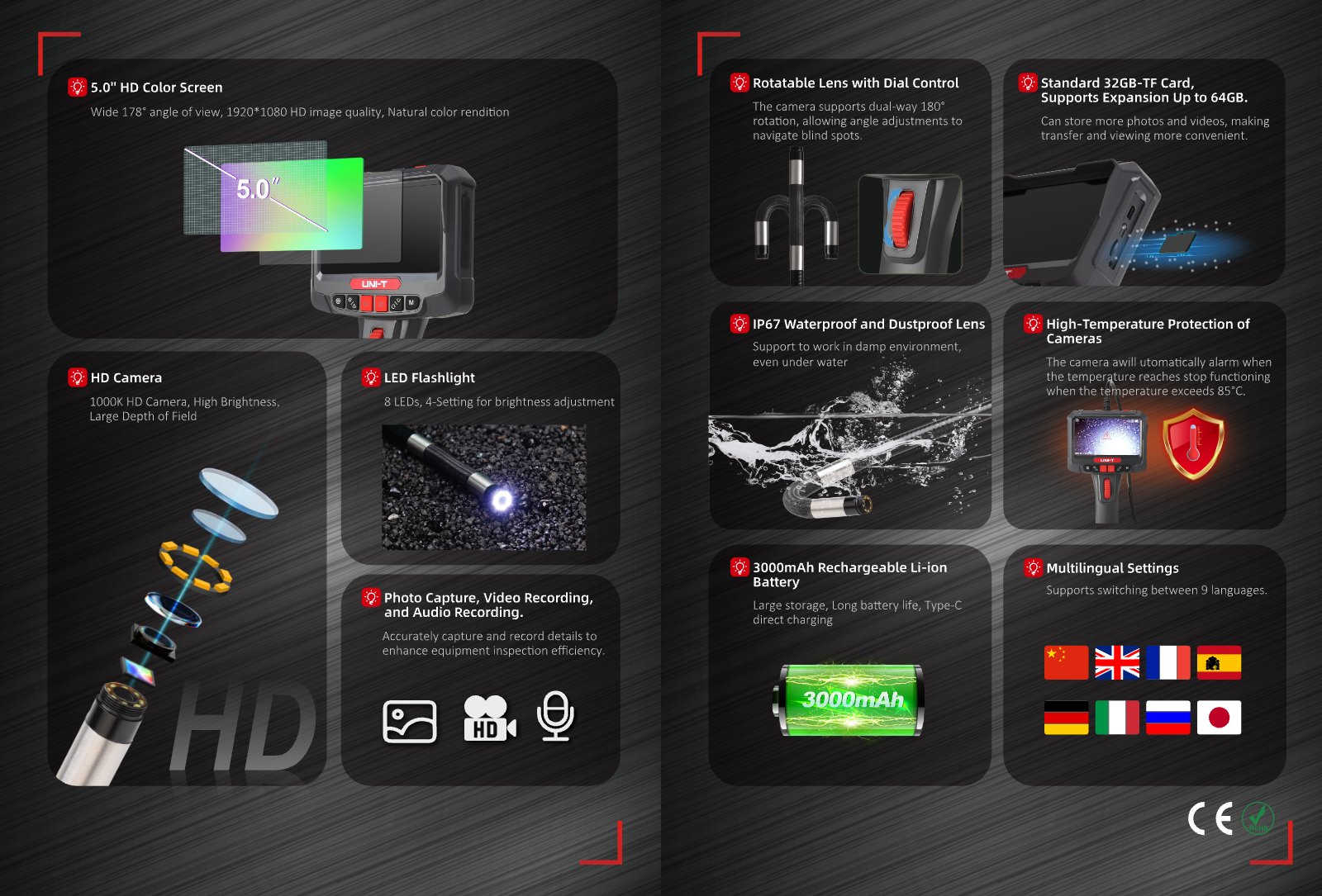

Main Product Features
- 5.0-inch HD colour display with wide 178° viewing angle and crisp 1920x1080 image resolution
- Dual-way 180° articulating probe tip with dial control for navigating tight bends and blind spots
- Full HD 1080p photo capturing, video recording (AVI), and integrated audio recording
- 8 adjustable high-brightness LEDs with 4-level brightness settings for optimal illumination
- IP67 waterproof and dustproof probe with high-temperature protection alarm and automatic shutdown above 85°C
- Robust 1 m metal and hard hose with 8 mm lens diameter
- Built-in 3000 mAh rechargeable Li-ion battery providing up to 4 hours of continuous operation
- Includes multilingual menu in 9 languages
Professional Visual Inspection with Precision Articulation
The UNI-T UT663B Industrial Borescope is an advanced visual inspection solution engineered specifically for technicians, automotive mechanics, maintenance engineers, and industrial inspectors. Combining a crystal-clear 1080p Full HD CMOS sensor with a mechanical bi-directional 180° articulating steering wheel, the UT663B makes it simple to inspect inaccessible crevices, engine cylinders, industrial pipework, and HVAC ducts without the need for destructive disassembly.
High-Definition Clarity and Reliable Visibility
Equipped with a 5.0-inch high-resolution colour monitor offering a wide 178° viewing angle, this device reproduces accurate colours and sharp contrast. The 8 mm camera head boasts a depth of field ranging from 20 mm to 100 mm, ensuring both close-up textures and deeper structures remain in focus. Even in complete darkness or inside reflective conduits, the 8 integrated LEDs with 4-step dimming provide balanced, glare-free illumination.
Built for Tough Environments and Safe Operation
Designed to withstand challenging jobsite conditions, the 1-metre probe combines durability and flexibility through its metal and hard hose construction. The probe head features IP67 ingress protection, allowing for reliable submerged or damp inspections in oily sumps or wet piping. Furthermore, safety and equipment longevity are prioritized: an intelligent high-temperature protection system actively monitors lens temperature, triggering an automatic alarm and shutdown if temperatures exceed 85°C to protect delicate optical components. Conforming strictly to European standards, this professional tool holds full CE certification, ensuring reliable, safe, and interference-free operation across industrial environments.
Effortless Documentation and Ergonomic Workflow
The UNI-T UT663B facilitates full inspection reporting on-site. Capture high-resolution JPEG photos (1920x1080) and Full HD AVI video alongside real-time voice notes via the integrated microphone. Data is stored on a micro SD card (max. 64GB) for seamless transfer via USB Type-C. Powered by a long-lasting 3.7 V 3000 mAh lithium-ion battery, users can operate continuously for up to 4 hours on a single charge.

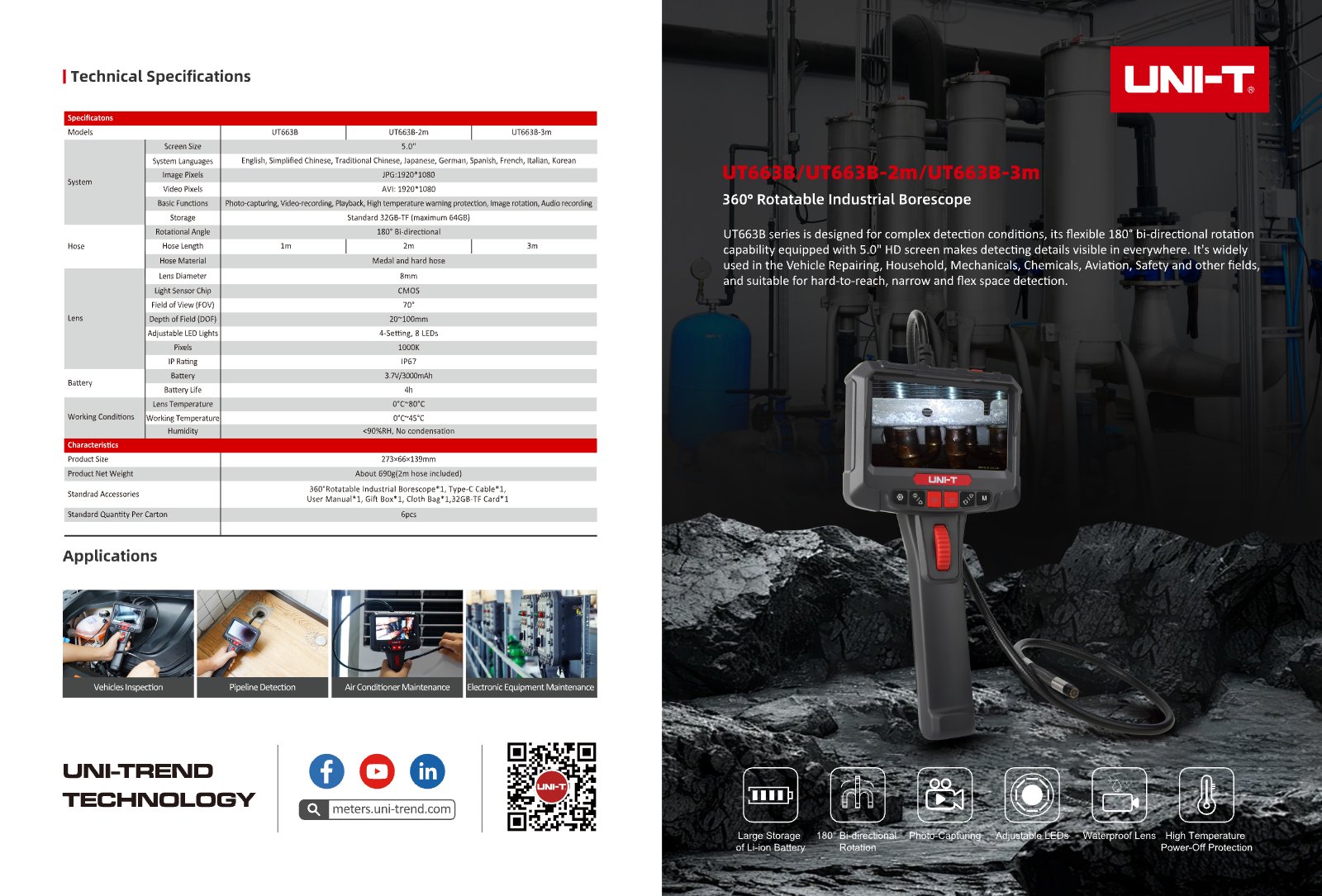

Technical Specifications
| Model | UNI-T UT663B |
|---|---|
| Screen Size & Type | 5.0-inch HD Colour Screen (178° viewing angle) |
| Image Resolution | 1920 x 1080 (JPG) |
| Video Resolution | 1920 x 1080 (AVI) |
| Basic Functions | Photo-capturing, video recording, playback, high temperature warning protection, image rotation, audio recording |
| Storage | Standard TF card (Supports up to 64 GB) |
| Articulation Angle | 180° Bi-directional (Dual-way dial control) |
| Hose Length | 1 m |
| Hose Material | Metal and hard hose |
| Lens Diameter | 8 mm |
| Light Sensor | CMOS |
| Field of View (FOV) | 70° |
| Depth of Field (DOF) | 20 mm to 100 mm |
| Illumination | 8 adjustable LEDs (4 brightness settings) |
| Camera IP Rating | IP67 (Waterproof and dustproof probe) |
| High-Temperature Protection | Automatic alarm and shutdown above 85°C |
| Battery | Rechargeable Li-ion 3.7 V, 3000 mAh |
| Battery Life | Approx. 4 hours |
| Operating Temperature | Lens: 0°C to 80°C; Main Unit: 0°C to 45°C |
| Operating Humidity | <90% RH (non-condensing) |
| Supported Languages | English, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Japanese, Korean |
| Dimensions & Weight | 273 x 66 x 139 mm; approx. 690 g |
| Conformity | CE, WEEE, RoHS |
Frequently Asked Questions (FAQ)
Can the probe tip rotate inside narrow openings?
Yes. The UT663B features mechanical bi-directional 180° articulation controlled directly from the ergonomic handgrip dial, enabling 360° situational viewing inside tight spaces without bending the entire cable.
Is the camera probe waterproof and resistant to fluids?
The 8 mm camera head and semi-rigid gooseneck feature an IP67 rating, meaning they are completely dust-tight and protected against water immersion up to 1 metre depth. This makes it suitable for plumbing, marine, and automotive fluid checks.
What happens if the inspection area is too hot?
The device is equipped with active thermal monitoring. If the probe tip encounters ambient temperatures exceeding 85°C (for example, inside an engine manifold that has not fully cooled), an on-screen warning alert is triggered and the unit will automatically shut down to prevent sensor damage.
Can I record voice notes while filming inspection videos?
Yes. The UT663B supports simultaneous audio recording alongside 1080p video recording, allowing technicians to narrate diagnostics and defects in real-time during live inspections.
Does the device meet European safety and quality standards?
Yes. The UNI-T UT663B complies fully with CE requirements and relevant European Union safety and environmental regulations, ensuring reliable operation for industrial and commercial applications.
