UNI-T UTG962E Arbitrary Waveform Generator | 2-Channel, 60MHz, 200MSa/s, 14-Bit, Portable
| Product number: | 202723 |
|---|---|
| Manufacturer number: | UTG962E |
| EAN | 6935750596203 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Main Product-Features
- Compact Handheld Design: Extremely portable for mobile use in workshops, labs, and in the field.
- Two Independent Channels: Generate two different signals simultaneously with full control over frequency, amplitude, and waveform.
- 60 MHz Sine Output: High bandwidth for a wide range of applications, from audio to basic RF testing.
- High Signal Quality: 200 MSa/s sampling rate and 14-bit vertical resolution for precise and clean waveforms.
- Versatile Modulation Types: Supports AM, FM, PM, and FSK modulation for educational and communication applications.
- Integrated Sweep & Burst Functions: Characterize components with linear/logarithmic sweeps and simulate triggered events.
- 24 Built-in Arbitrary Waveforms: Direct access to commonly used test signals without external file loading.
- EU-Conform & Safe: Tested for safety and compliance with all relevant EU standards for worry-free operation.
Compact Power for Any Workbench: The UNI-T UTG962E
Imagine needing a precise signal source, but your workspace is crowded or you're out on a field service call. Large, bulky benchtop instruments are not an option. This is precisely the situation the UNI-T UTG962E was designed for. This arbitrary waveform generator impressively proves that professional performance doesn't require a lot of space. With its handy design, it fits comfortably in one hand, becoming an indispensable companion for technicians, engineers, and hobbyists who value mobility and flexibility.
Two Channels, Infinite Possibilities

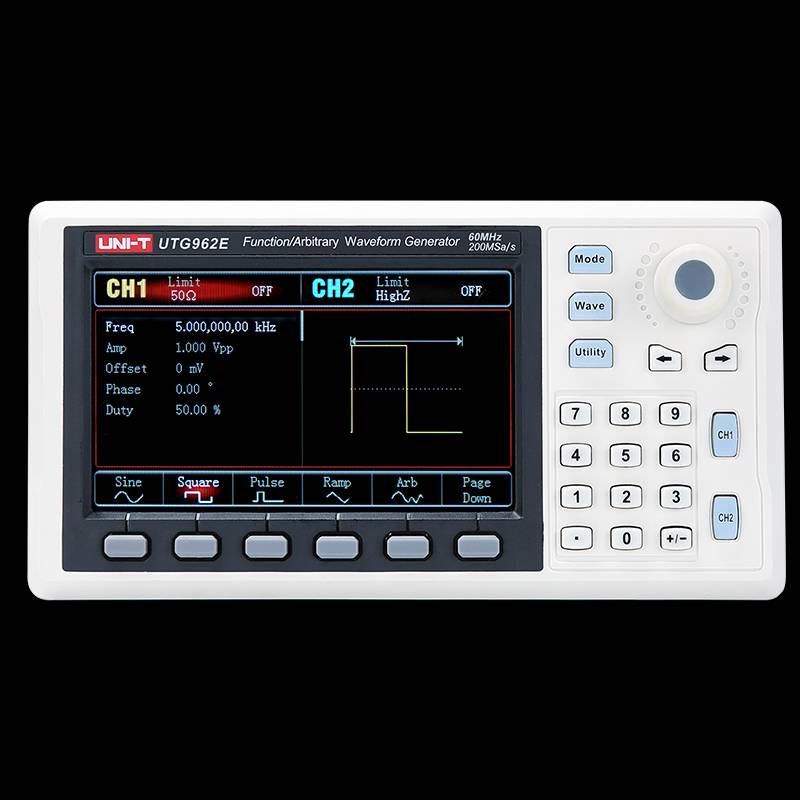

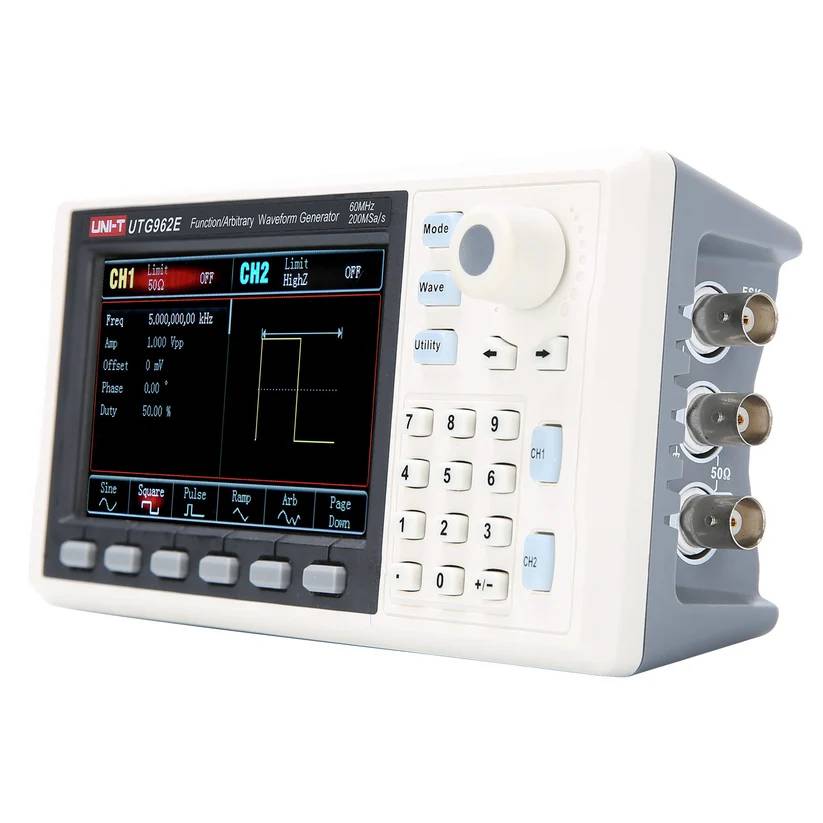

Don't be fooled by its size. The UTG962E is a full-featured two-channel generator. Both channels operate completely independently, delivering the full spectrum of waveforms: from sine, square, and ramp to pulse, noise, DC, and arbitrary signals. Whether you need a clock signal for a digital circuit and an audio signal for an amplifier test at the same time – the UTG962E handles both with just one device. The intuitive operation via the clear 3.5-inch TFT display makes configuration a breeze.
Precision You Can Rely On

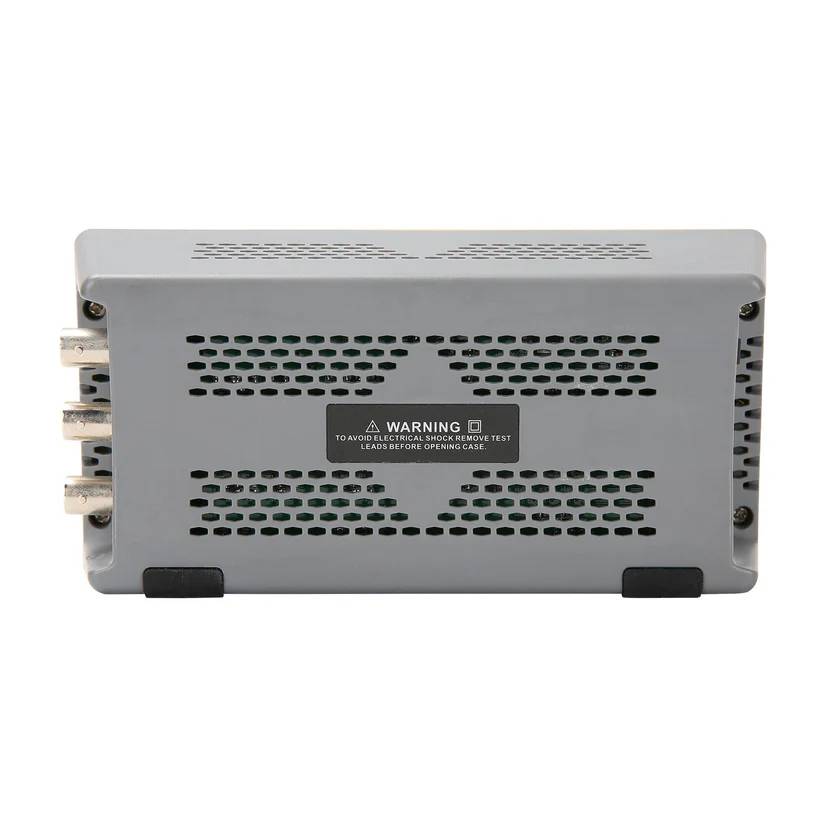

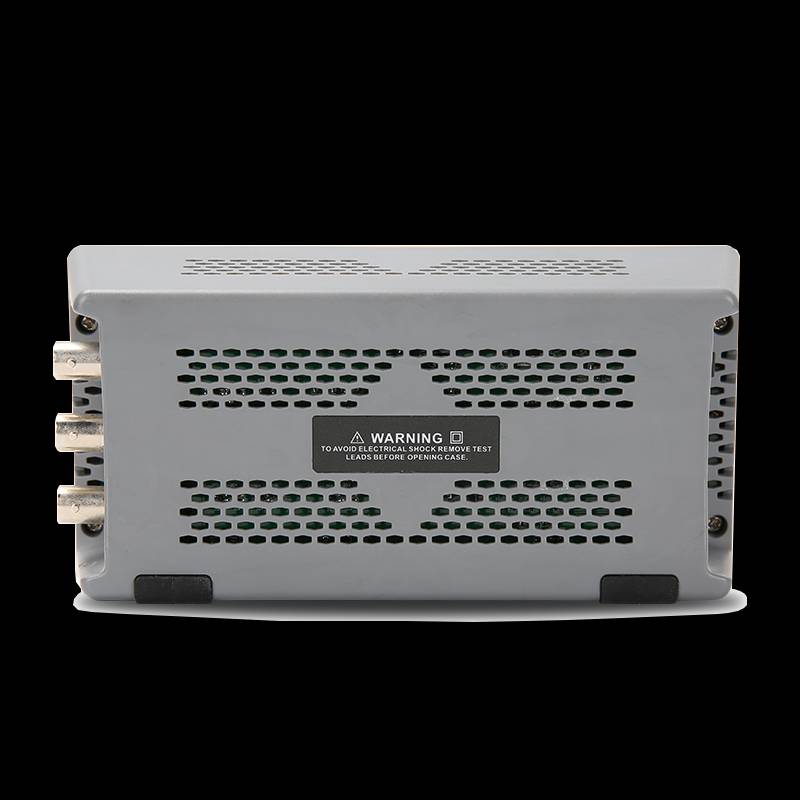

At the heart of the UTG962E is powerful technology that ensures clean and stable signals. With a sampling rate of 200 MSa/s and a 14-bit vertical resolution, waveforms are generated with high accuracy and low jitter. This is crucial for characterizing sensitive components or troubleshooting complex circuits. You can operate with complete peace of mind, as the UTG962E is fully tested and compliant with all relevant EU standards, ensuring safety and reliability. It's not just a powerful tool, but also a safe and compliant one for your demanding tasks.
Technical Specifications
| Feature | Specification |
|---|---|
| Channels | 2 (independent) |
| Maximum Frequency (Sine) | 60 MHz |
| Maximum Frequency (Square/Pulse) | 25 MHz |
| Sampling Rate | 200 MSa/s |
| Vertical Resolution | 14 Bits |
| Waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation Types | AM, FM, PM, FSK (with internal source) |
| Built-in Arbitrary Waveforms | 24 (non-volatile storage) |
| Sweep Modes | Linear and Logarithmic |
| Burst Mode | Supported |
| Display | 3.5-inch TFT LCD |

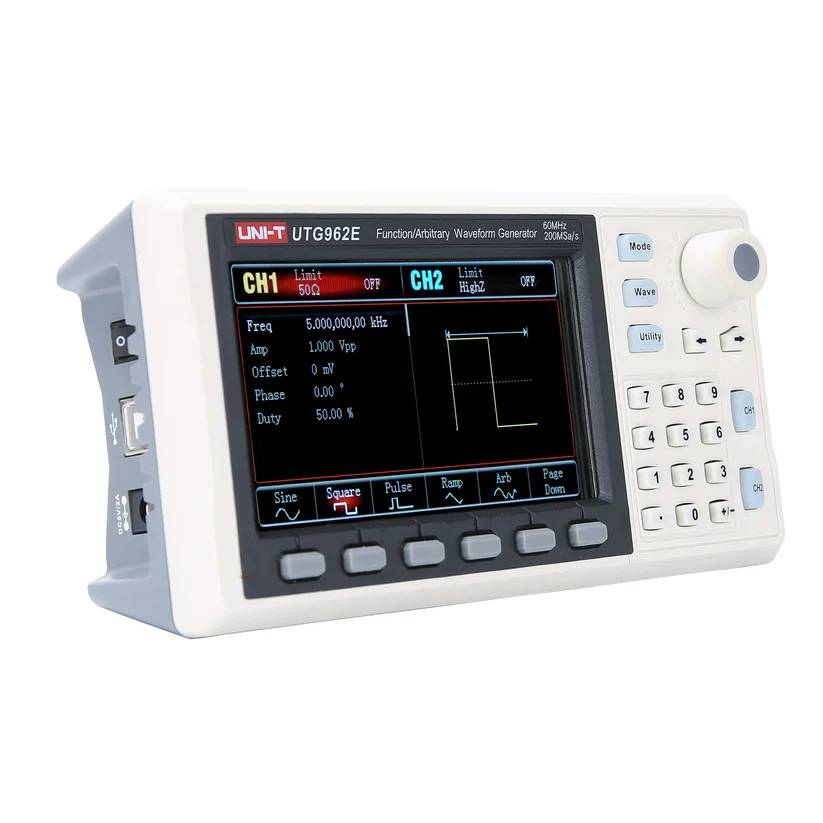

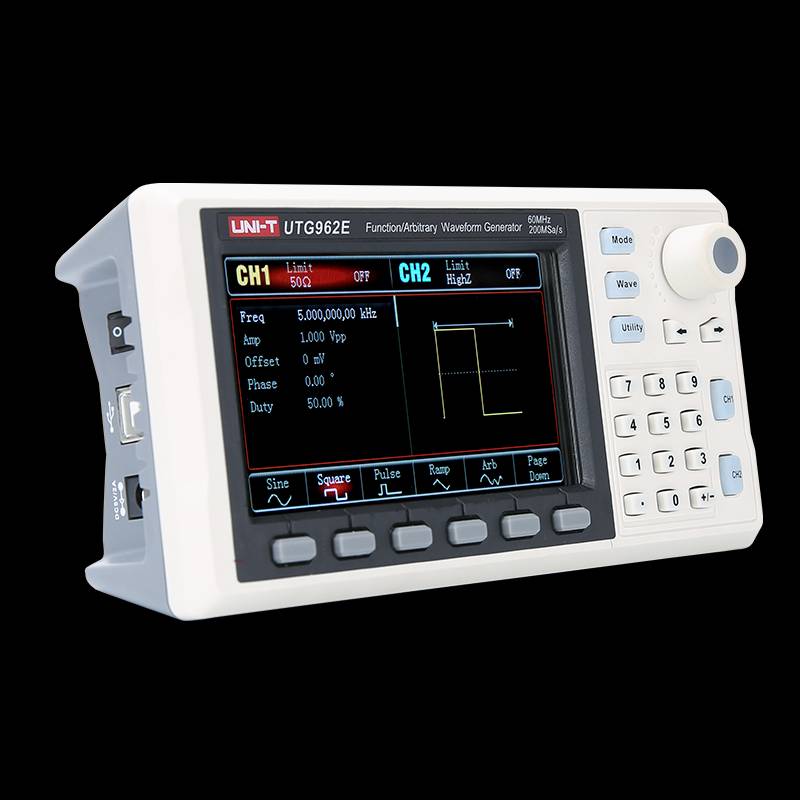

| Connectivity | USB |
| Design | Compact Handheld Form Factor |
Frequently Asked Questions (FAQ)
Who is the UTG962E best suited for?
The UTG962E is ideal for educational labs, field service, hobby electronics, and as a secondary instrument on professional workbenches. Its strengths lie in its portability and excellent value for money.
What's the main difference compared to the UTG1000X Series?
The UTG1000X series offers higher resolution (16-bit), more modulation types, significantly more built-in arbitrary waveforms, and SCPI programmability. The key advantage of the UTG962E is its unparalleled portability and more compact form factor.

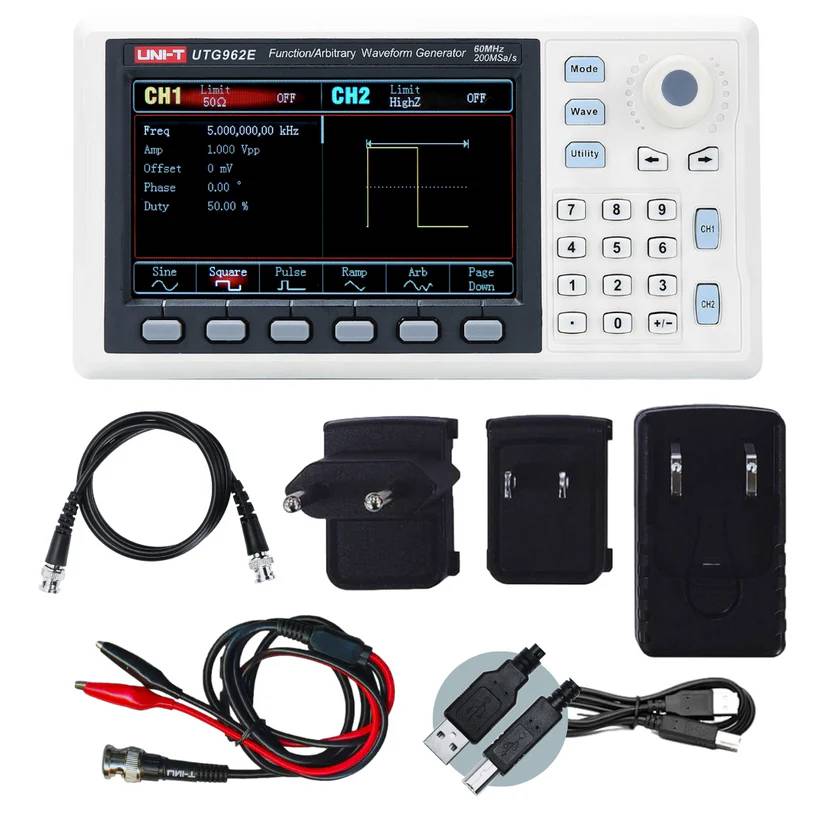

What's included in the box?
The package includes the UTG962E function generator, a power cable, and a USB cable. The user manual can be downloaded directly from the UNI-T website.
