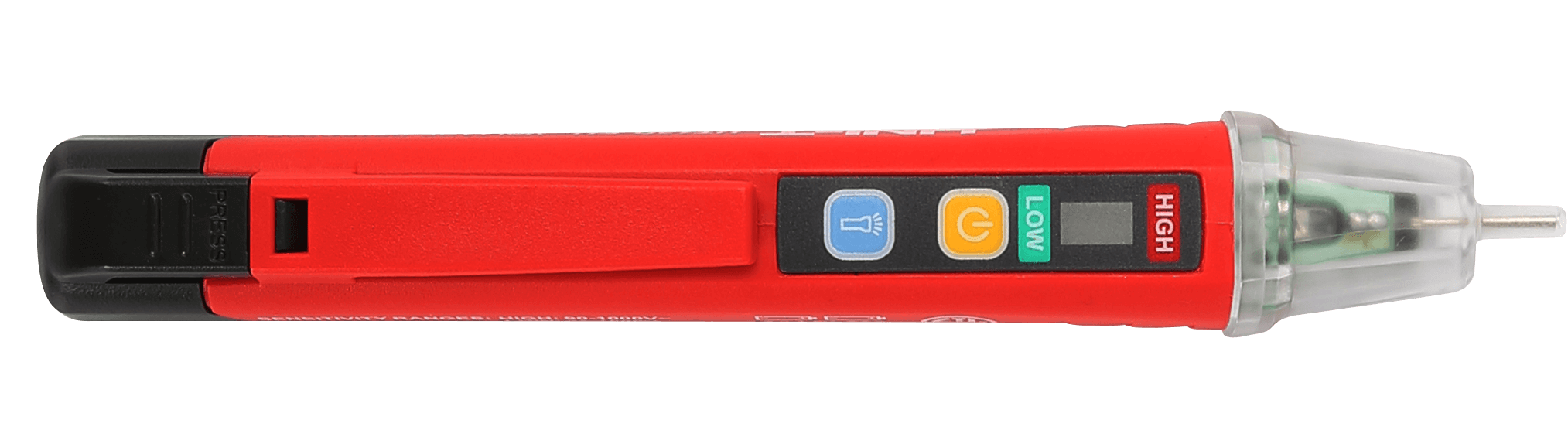

UT12D-EU AC Voltage Detector, CAT IV 1000V

Quantity	Unit price
To 4	€6.40*
To 9	€6.08*
To 24	€5.89*
To 49	€5.60*
From 50	€5.12*

Prices excl. VAT plus shipping costs

Currently not available (delivery time on request)

Product number:	202569
Manufacturer number:	UT12D-EU
EAN	6935750512395

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

UT12D-EU AC Voltage Detector Description

The UT12D-EU AC voltage detector is a reliable and easy-to-use tool for detecting AC voltage. It can measure high AC voltage between 90V - 1000V and low AC voltage between 24V- 1000V. With the built-in flashlight, the voltage tester pen can be used in working areas with poor lighting. An audible buzzer and visual LED indication, and an automatic shutdown feature are also included. It also has a low voltage indicator to help you identify potential safety hazards.

The UT12D-EU is suited for both professional and non-professional users.

The UT12D-EU complies with all EU safety standards and has a CAT IV 1000V rating.

UT12D-EU AC Voltage Detector Features

can measure high AC voltage 90V - 1000V AC and low AC voltage 24V 1000V AC
Frequency range: 50/60 Hz
Built-in flashlight
LED indication and audible buzzer
Automatic shutdown
Low voltage indicator
Scope of delivery: Device, Manual

Technical data

Product number:	202569
AC Voltage:	low: 24V~1000V/ high:90V~1000V
Frequency:	50/60Hz
Rating:	CAT IV 1000V
Auto Power Off:	✓
Low Voltage Indication:	✓
Flashlight:	✓
LED Indication:	✓
Size:	150mm x 18mm x 23mm
Weight:	0.05kg
Power Supply:	1.5V battery (R03) x 2
Size:	150mm x 18mm x 23mm
Weight:	0.05kg

Downloads

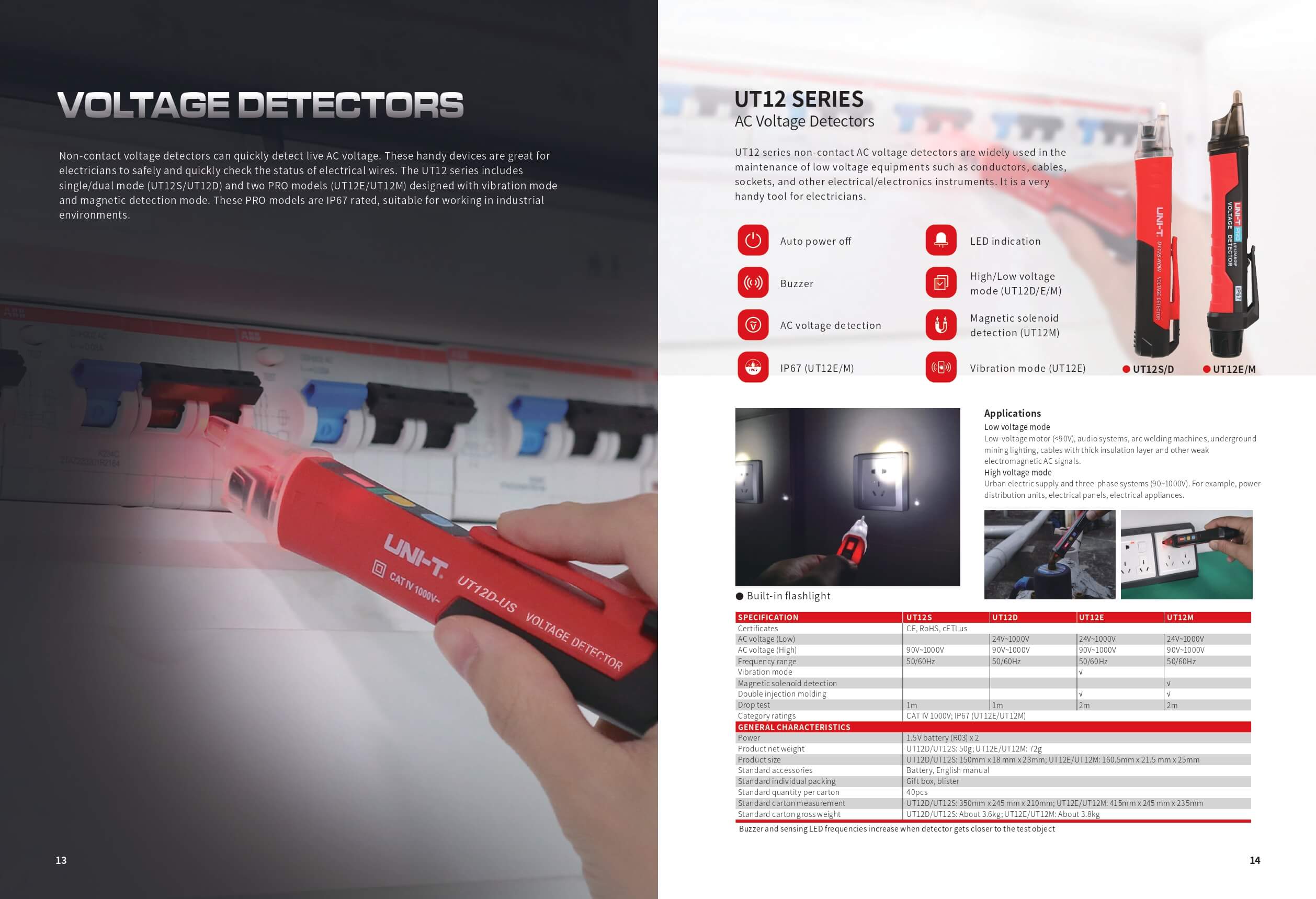

Flyer:	ut12d-eu-technical-data.pdf
Manual:	ut12d-eu-ac-voltage-detector-uni-t-uni-trend-user-manual.pdf
Other documents:	ut12d-eu-technical-data.pdf
