UT195M Digital Multimeter Professional 20A 1000V LoZ IP65 Motor Test
| Product number: | 202685 |
|---|---|
| Manufacturer number: | UT195M |
| EAN | 6935750519561 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
UT195M Professional Digital Multimeter – Highlights
- Robust - IP65 protection class and 2 m drop resistance
- Measurement of the direction of rotation of 3-phase motors
- Data hold function
- Automatic shutdown after 15 minutes
- Maximum/minimum value measurement
- LoZ (low impedance) measurement
- The low-pass filter function enables the meter to isolate high-frequency noise and measure as accurately as possible
- Current measurements up to 20A
- Integrated LED work light
- Large display with automatic backlight
- True RMS measurement
- Automatic range selection (AUTO RANGE)
- Measurement functions: Voltage (AC/DC) up to 1000 V, current (AC/DC) up to 20 A, resistance, capacitance, frequency, temperature, 3-phase motor test, continuity, diode test, duty cycle
- Classification: CATIII 1000 V, CATIV 600V
- Perfect for professional users in the repair and installation sector; particularly suitable for outdoor installation
- Top quality, complies with all EU standards
- High-quality, safe, and compliant measuring device
- Renowned manufacturer UNI-T
UT195M Professional Digital Multimeter – Robust True RMS measuring device for professional use
Robustness & Safety
The UT195M is designed for harsh operating conditions and offers IP65 protection and drop resistance from up to 2 m. With CATIII 1000 V and CATIV 600 V ratings and compliance with all relevant EU standards, it ensures high work safety during installations and measurements in the field.
Measurement Functions & Accuracy
This multimeter measures voltage (AC/DC up to 1000 V), current (AC/DC up to 20 A), resistance, capacitance, frequency, temperature, and duty cycle. Special functions such as LoZ (low impedance), low-pass filter for suppressing high-frequency noise, and direction of rotation measurement for 3-phase motors ensure precise results and greatly expand the range of applications.
Ease of use & additional functions
The large display with automatic backlighting and the integrated LED work light make measuring easier, even in poor lighting conditions. Automatic range selection, data hold function, max/min value measurement, and automatic shutdown after 15 minutes make the device particularly user-friendly and energy-efficient.
Areas of application & benefits
The UT195M is ideal for professional users in repair, maintenance, and installation, especially for outdoor use and assembly work. You benefit from a robust design, comprehensive measurement functions, and reliable results for electrical tests and motor checks.
Quality & manufacturer
As a product from the renowned manufacturer UNI-T, the UT195M stands for high-quality workmanship, safe handling, and standard-compliant measurement technology. You get a reliable, compliant measuring device for demanding applications.

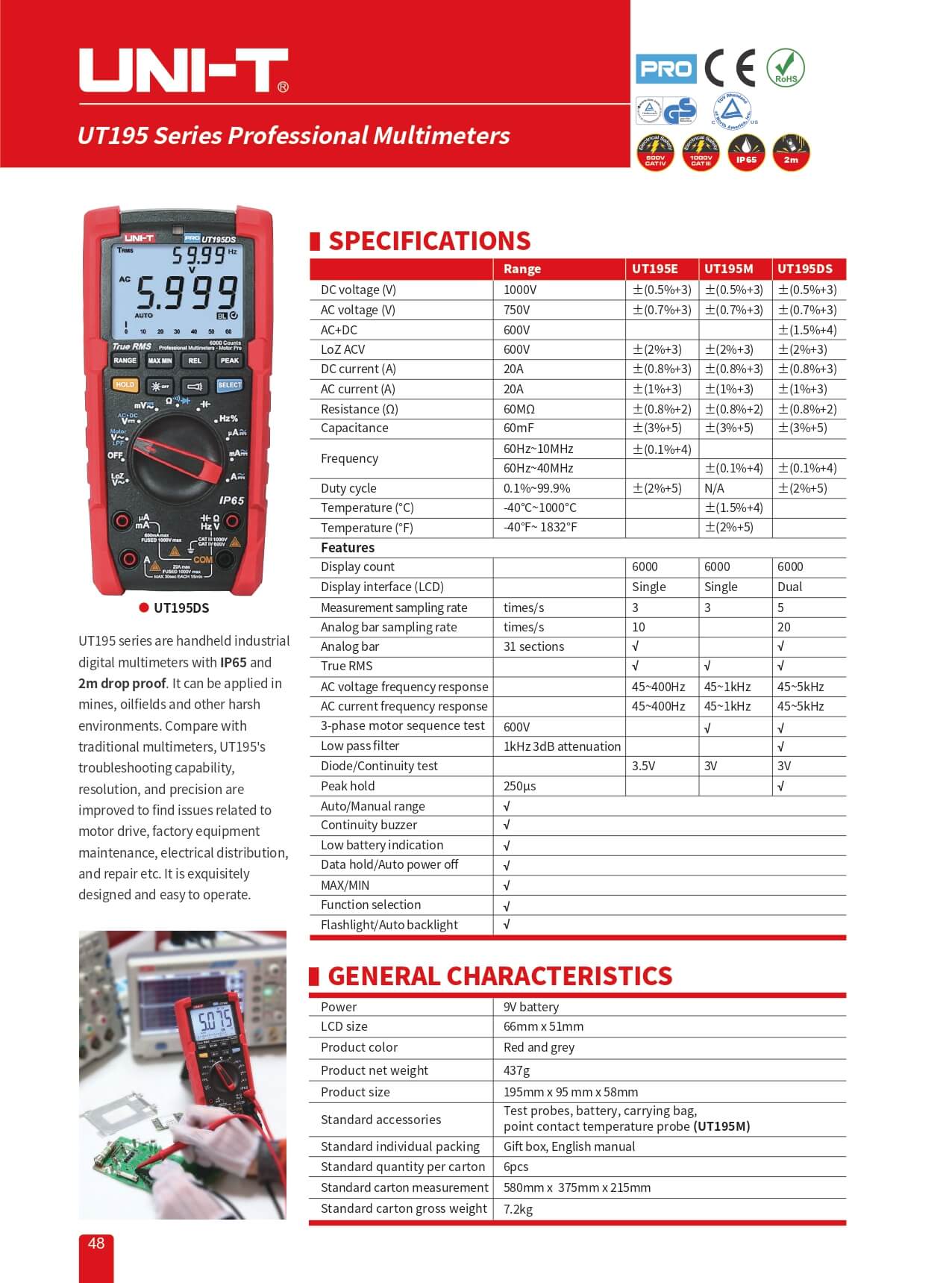

UT195M Professional Digital-Multimeter – Technical Data
