UT501A Professional Insulation Resistance Tester
| Quantity | Unit price |
|---|---|
| To 24 |
€55.00*
|
| To 49 |
€52.50*
|
| From 50 |
€48.00*
|
Available, delivery time: 1-3 days
| Product number: | 200376 |
|---|---|
| Manufacturer number: | UT501A |
| EAN | 6935750550113 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
UT501A Insulation Tester Description
The UT501A insulation tester is perfect for measuring the insulation resistance of electrical equipment and household appliances. With its ability to measure insulation resistance and AC voltage the UT501A is a versatile and reliable tool for many application scenarios. Additionally, the UT501A features a 2000 Count LCD display, an internal resistance test function, an auto range function, a high voltage indication, an overload indication, an auto discharge function, a low battery indication, a LCD display with backlight, a buzzer and light alarm, and a secondary display for testing voltage. Because of its extensive features, the UT501A is a great choice for professionals who need to measure the insulation resistance for insulation materials or different kinds of electric equipments such as transformer, electric machines, cables, and switches.
The UT501A complies with all EU safety standards.
UT501A Insulation Tester Features
- Can measure insulation resistance and AC Voltage
- 10MΩ internal resistance test
- Auto range
- High voltage indication and Overload indication
- Auto discharge
- Low battery indication
- LCD backlight
- Buzzer and Light alarm
- Test voltage secondary display

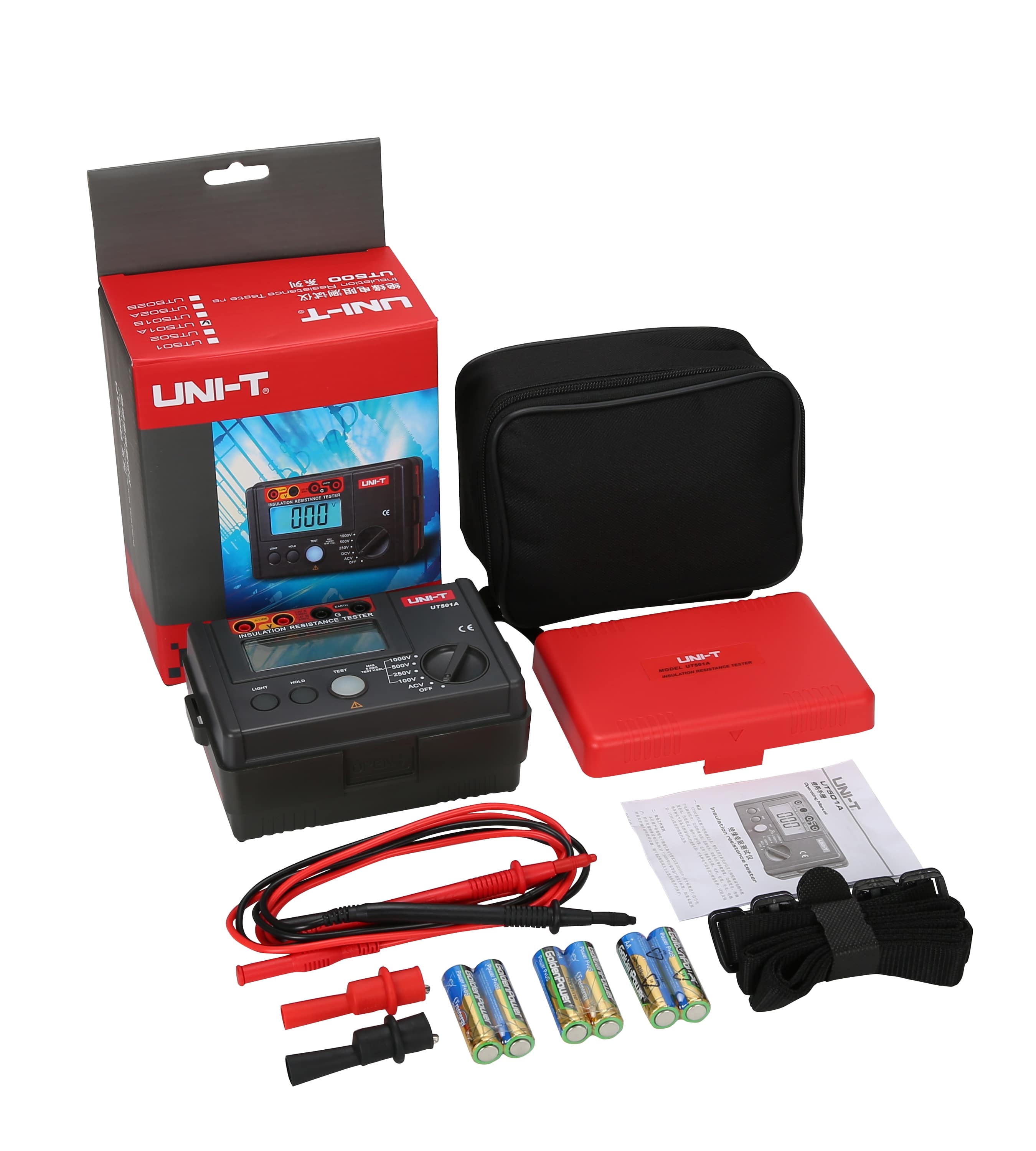

- Included in delivery: 1 x pair of test leads, 1 x pair of alligator clips, 1 x storage box, 1 x manual, 1 x carrying strap
| Product number: | 200376 |
|---|---|
| AC Voltage: | 30V~750V ±(2%+3) |
| Auto Power Off: | ✓ |
| Auto Range: | ✓ |
| Display Count: | 2000 |
| Display Size: | 70.6mm x 34mm |
| High Voltage Indication: | ✓ |
| Insulation Resistance: | 100V: 0MΩ~100MΩ ±(3%+5); 250V: 0MΩ~99.9MΩ ±(3%+5), 100MΩ~5GΩ ±(5%+5); 500V: 0MΩ~99.9MΩ ±(3%+5), 100MΩ~5GΩ ±(5%+5); 1000V:0MΩ~99.9MΩ ±(3%+5), 100MΩ~5GΩ ±(5%+5) |
| Load Current: | 50V (R=50kΩ) 1mA 0%~10%; 100V (R=100kΩ) 1mA 0%~10%; 250V (R=250kΩ) 1mA 0%~10%; 500V (R=500kΩ) 1mA 0%~10%; 1000V (R=1MΩ) 1mA 0%~10% |
| Low Battery Indication: | ✓ |
| Overload Indication: | ✓ |
| Power Supply: | 1.5V battery (LR6) x 6 |
| Short-circuit current: | <2mA |
| Test Voltages: | 100V/250V/500V/1000V 0%~10% |
| Worklight: | ✓ |
| Weight: | 0.5kg |
| Size: | 150mm x 100mm x 71mm |
| Size: | 150mm x 100mm x 71mm |
| Weight: | 0.5kg |
| Flyer: | 20181225050643635.pdf |
|---|---|
| Manual: | UT501A-English-Manual.pdf |
