VQ 30 rot / red
| Product number: | 201479 |
|---|---|
| Manufacturer number: | 930061101 |
| EAN | 4250260204694 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

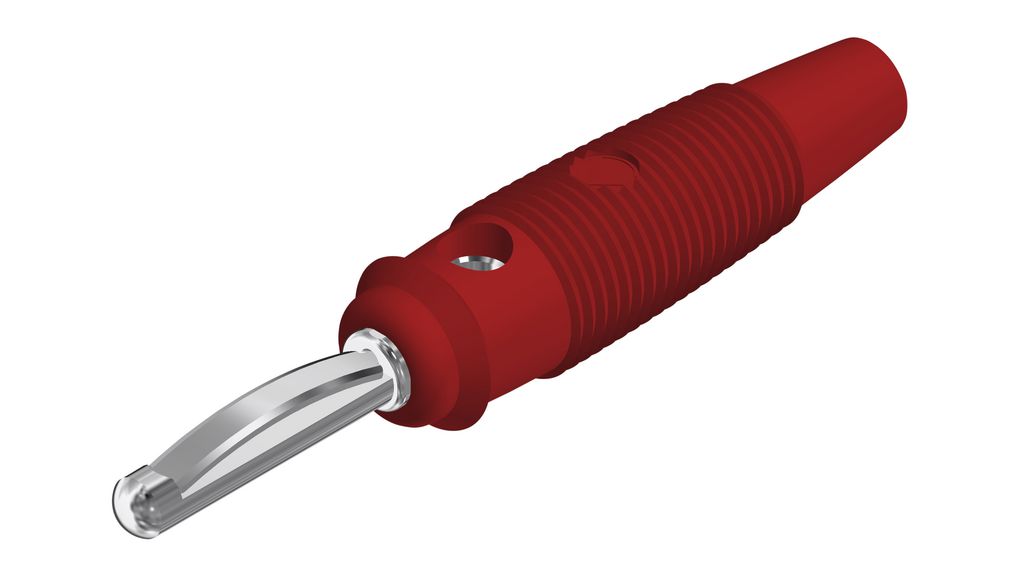

VQ 30 rot / red (930061101)
Fully mating connector, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.
Technical data |
|
| connection | solder connection |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
30 A |
| material plug | brass, nickel plated |
| housing material | PVC-P |
| temperature range acc. To IEC61010(1) | -25 °C to +70 °C |
Technical data
| Product number: | 201479 |
|---|
