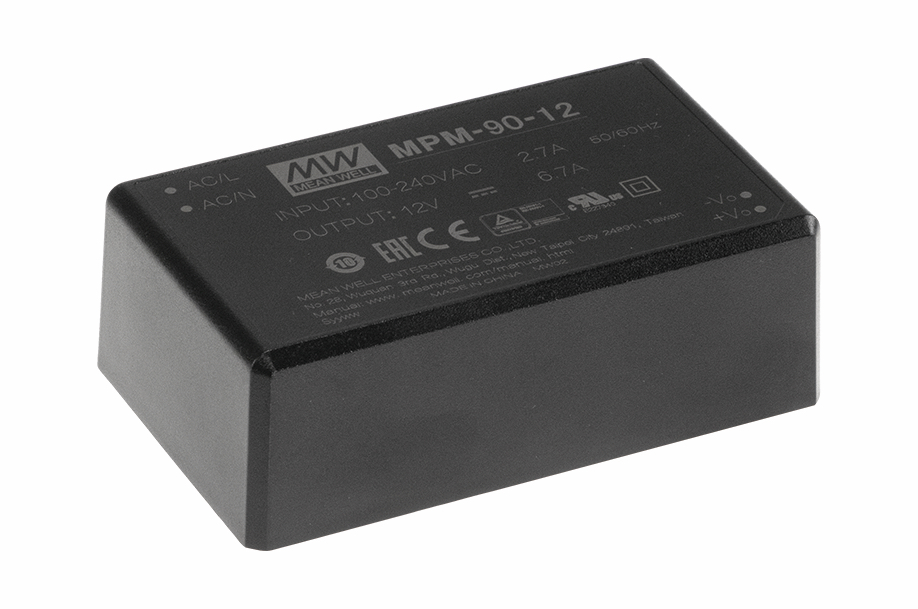

MPM-90-12 Switching power supply, module, 90W, 12V, 6,7A, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€28.70*
|
| To 99 |
€28.23*
|
| From 100 |
€27.29*
|
Available, delivery time: 1-3 days
| Product number: | 102858 |
|---|---|
| Manufacturer number: | MPM-90-12 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
Meanwell MPM-90 Module Power Supply Series Description:
MPM-90 series consists of 90W powerful and small (87*52*29.5mm) AC/DC module power supplies for medical applications. They operate in a voltage range of 80~264VAC, have low no-load power consumption (less than 0.1W), high efficiency up to 93%, Class II double insulation (without FG), excellent heat dissipation, withstand 2-5G vibration, provide high EMC performance and have 4KVAC insulation. The design complies with IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP levels and offers extremely low leakage current. The series is perfect for BF (patient contact) type medical devices or similar applications.
Meanwell MPM-90 Module Power Supply Series Features:
- Enclosed design, PCB mounting
- universal input
- up to 100W peak power for 10 seconds
- overload protection by shutdown, auto recovery
- protected against short circuit and overvoltage
- Safety standards: EN60601-1
- EMC Standards: EN55011 class B
- 3 years manufacturer warranty
- MPM-90-_: PCB mounting
- MPM-90-_ST: Screw terminals
Meanwell MPM-90 Module Power Supply Series Applications
- Portable medical devices
- Medical computer monitors
- Mobile clinic workstations
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 102858 |
|---|---|
| Size: | 87mm x 52mm x 29.5mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.197kg |
| Electrical Connection Type: | THT |
| Installation: | PCB |
| Number of Outputs: | 1 |
| Efficiency: | 92% |
| Output Current: | 6.7A |
| Output Voltage: | 12V DC |
| Power: | 80W |
| Power Supply Characteristics: | Module |
| Application: | medical applications |
| Series: | MPM-90 |
| Size: | 87mm x 52mm x 29.5mm |
| Weight: | 197kg |
Downloads
| Data Sheet: | meanwell-mpm-90-spec-data-sheet.pdf |
|---|
