SKE15C-24 DC/DC Converter 36-72V:+24V 625mA 15W, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€19.10*
|
| To 99 |
€18.45*
|
| From 100 |
€17.53*
|
Available, delivery time: 1-3 days
| Product number: | 104113 |
|---|---|
| Manufacturer number: | SKE15C-24 |
| EAN | 4021087001120 |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

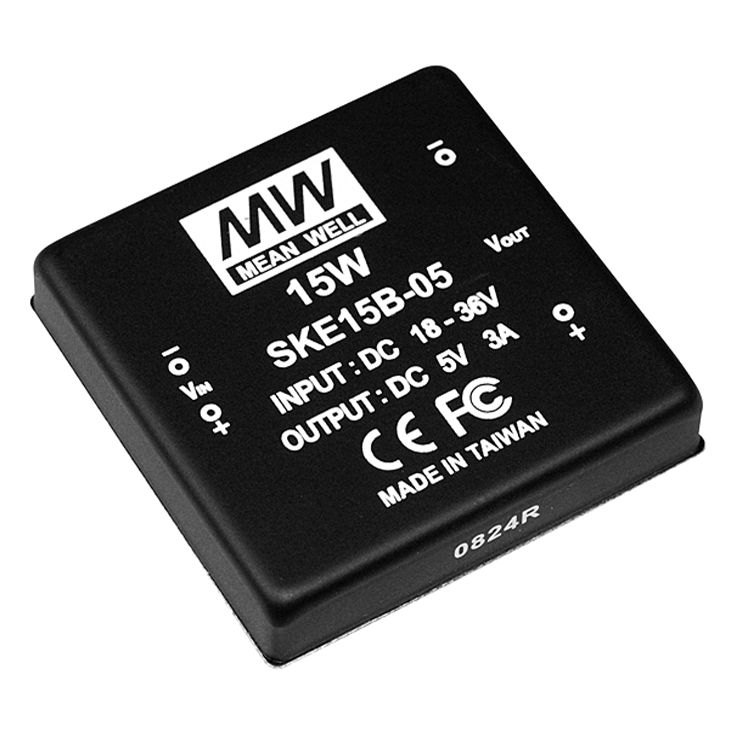

Meanwell SKE15 DC/DC Converter Series Features:
- in DIP24/DIL24 package
- for direct PCB mounting
- input voltage range 2:1
- no minimum load required
- input/output isolation 1500V DC
- protection: short circuit (continuous), overload
- Efficiency up to 89%
For detailed technical specifications, please check the data sheet in the "downloads" section.
Technical data
| Product number: | 104113 |
|---|---|
| Size: | 50.8mm x 50.8mm x 11mm |
| Protection: | Short circuit protection SCP, overcharge OPP |
| Weight: | 0.065kg |
| Installation: | Through Hole Technology / Durchsteckmontage (THT) |
| Number of Outputs: | 1 |
| Efficiency: | 84% |
| Output Current: | 625mA |
| Output Voltage: | 24V DC |
| Power: | 15W |
| Series: | SKE15 |
| Size: | 50.8mm x 50.8mm x 11mm |
| Weight: | 65kg |
Downloads
| Data Sheet: | meanwell-ske15-spec-data-sheet.pdf |
|---|
