UNI-T UT196 Solar Multimeter True RMS 1700V DC 1500V AC IP65

Quantity	Unit price
To 4	€124.99
To 9	€115.99
To 24	€110.99
From 25	€105.99

Available, delivery time: 1-3 days

Product number:	202658
Manufacturer number:	UT196
EAN	6935750519622

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

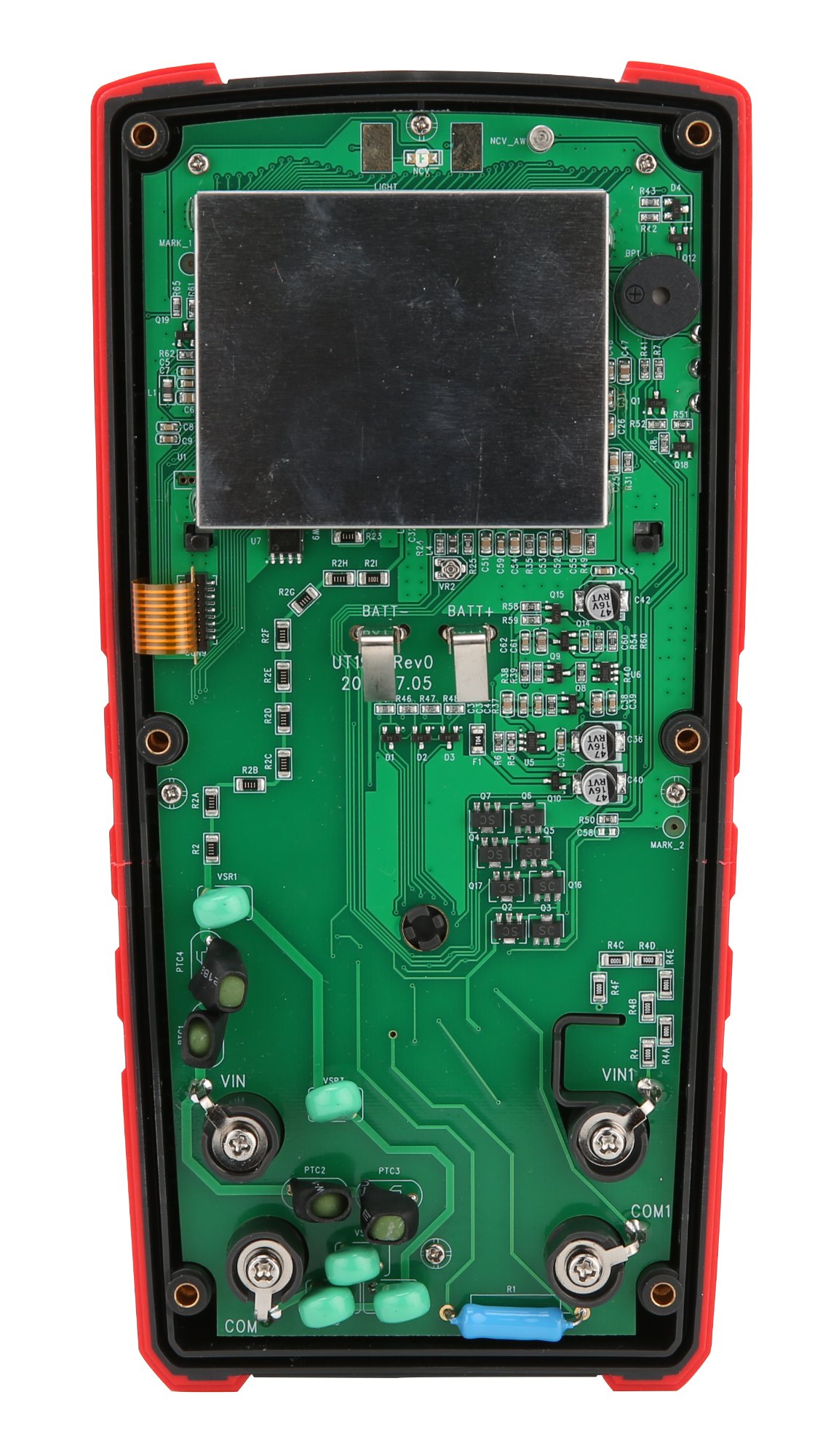

Product information "UNI-T UT196 Solar Multimeter True RMS 1700V DC 1500V AC IP65"

Main Product Features

High-voltage measurement: Handles up to 1700 V DC and 1500 V AC for modern utility-scale solar arrays and wind power systems
True RMS measurement: Accurate AC voltage readings across a 45 Hz to 1 kHz frequency response range
Low Pass Filter (LPF): Effectively isolates high-frequency noise generated by inverters, variable frequency drives, and motor controllers
Rugged outdoor construction: Certified IP65 waterproof and dustproof enclosure, engineered to survive 2-metre drops
Comprehensive safety: Certified for CAT III 1000 V and CAT IV 600 V environments with 1700 V DC / 1500 Vrms AC overload protection
Clear dual display: 6000-count backlit screen with an integrated high-speed analogue bar graph
Specialist diagnostic tools: Non-contact voltage detection (NCV), Peak Hold, Max/Min, Relative mode, Data Hold, and an integrated work flashlight

Designed for Demanding Photovoltaic and Renewable Energy Systems

As commercial and residential solar installations continuously migrate to higher string voltages to minimise power transmission losses, standard digital multimeters no longer suffice. The UNI-T UT196 Solar Pro Digital Multimeter is engineered specifically to meet the high-voltage demands of modern photovoltaic facilities, wind power systems, and industrial power utilities. With an exceptional voltage capability reaching up to 1700 V DC and 1500 V AC, the UT196 equips field engineers, solar installers, and maintenance teams with the exact technical headroom needed to commission and diagnose utility-grade PV arrays safely and accurately.

Precision Diagnostics with True RMS and Low Pass Filtering

Solar inverters, power conversion controllers, and industrial variable speed drives inherently produce considerable amounts of high-frequency electrical harmonics and switching noise. The UT196 incorporates True RMS measurement alongside an advanced Low Pass Filter (LPF) mode. When engaged, the low-pass filter suppresses high-frequency interference, enabling technicians to obtain stable, reliable fundamental voltage readings without false artefacts. In addition, its low-impedance mode aids in diagnosing sensitive electronics and eliminating ghost or stray voltages that often lead to incorrect fault assessments.

Built for Tough Outdoor Operations

PV systems are installed in demanding environments—from scorching rooftops to desert solar farms subject to windblown sand and heavy rain. The UNI-T UT196 features an IP65-rated housing that guarantees absolute ingress protection against dust and water jets. Built with industrial shock-absorbing materials, the instrument is drop-tested to withstand impacts from heights of up to 2 metres. Even in poorly illuminated inverter housings or under intense direct sunlight, the dual 6000-count backlit display with an analogue bar graph and the built-in LED flashlight ensure effortless visibility and swift workflow.

Strict Compliance with European Safety Standards

Safety is the primary consideration when working on live high-voltage DC combiner boxes and central inverters. The UNI-T UT196 provides full overload protection up to 1700 V DC and 1500 Vrms AC and is tested in strict accordance with the highest international safety categories, classified as CAT III 1000 V and CAT IV 600 V. The instrument fully complies with all relevant European Union directives and CE standards (including EN 61010 electrical safety norms and RoHS guidelines), giving professionals uncompromised peace of mind when performing mission-critical operations.

Parameter	Measurement Range	Accuracy
DC Voltage	600 mV / 6 V / 60 V / 600 V / 1700 V	±(0.2% + 5)
AC Voltage (True RMS)	600 mV / 6 V / 60 V / 600 V / 1500 V	±(0.8% + 3)
AC Frequency Response	45 Hz to 1 kHz	-
Resistance	600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ	±(0.8% + 2)
Capacitance	60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF	±(1.9% + 5)
Frequency	60 Hz to 1 MHz	±(0.08% + 4)
Display Count	6000 counts (Dual display with bar graph)	-
Safety Rating	CAT III 1000V, CAT IV 600V	-
Ingress Protection & Impact	IP65, 2 m drop tested	-
Power Supply	Standard 9 V block battery (6F22)	-
Dimensions & Weight	195 x 95 x 58 mm, approx. 485 g	-

Frequently Asked Questions (FAQ)

Why do I need a multimeter rated up to 1700 V DC for solar installations?

Modern utility-scale and commercial photovoltaic string systems operate at open-circuit voltages (Voc) approaching or exceeding 1000 V DC, frequently peaking at 1500 V DC in cold weather conditions. Standard 1000 V multimeters lack the required rating and safety margin. The UT196 is rated up to 1700 V DC to handle these elevated voltages safely.

What does the Low Pass Filter (LPF) function do?

Solar inverters and drive controllers create high-frequency noise that can distort standard digital multimeter readings. The LPF function filters out this high-frequency noise, isolating the true fundamental sine wave or DC signal to deliver highly accurate readings.

Is the UNI-T UT196 safe for use in adverse weather?

Yes. The meter features an IP65-certified ingress protection rating, making it dust-tight and resistant to water jets from any direction. Combined with a 2-metre drop-proof casing, it is specifically built for rugged outdoor site conditions.

Does this multimeter comply with EU safety regulations?

Yes, the UNI-T UT196 is CE-certified and conforms strictly to European standards (EN 61010-1) under CAT III 1000 V and CAT IV 600 V safety ratings, ensuring maximum user protection against transients and overvoltages.

Can the UT196 measure AC current?

While the instrument does not feature internal direct current shunts, it supports AC current measurements up to 3000 A when paired with an optional external current clamp sensor.

Technical data

Product number:	202658

Downloads

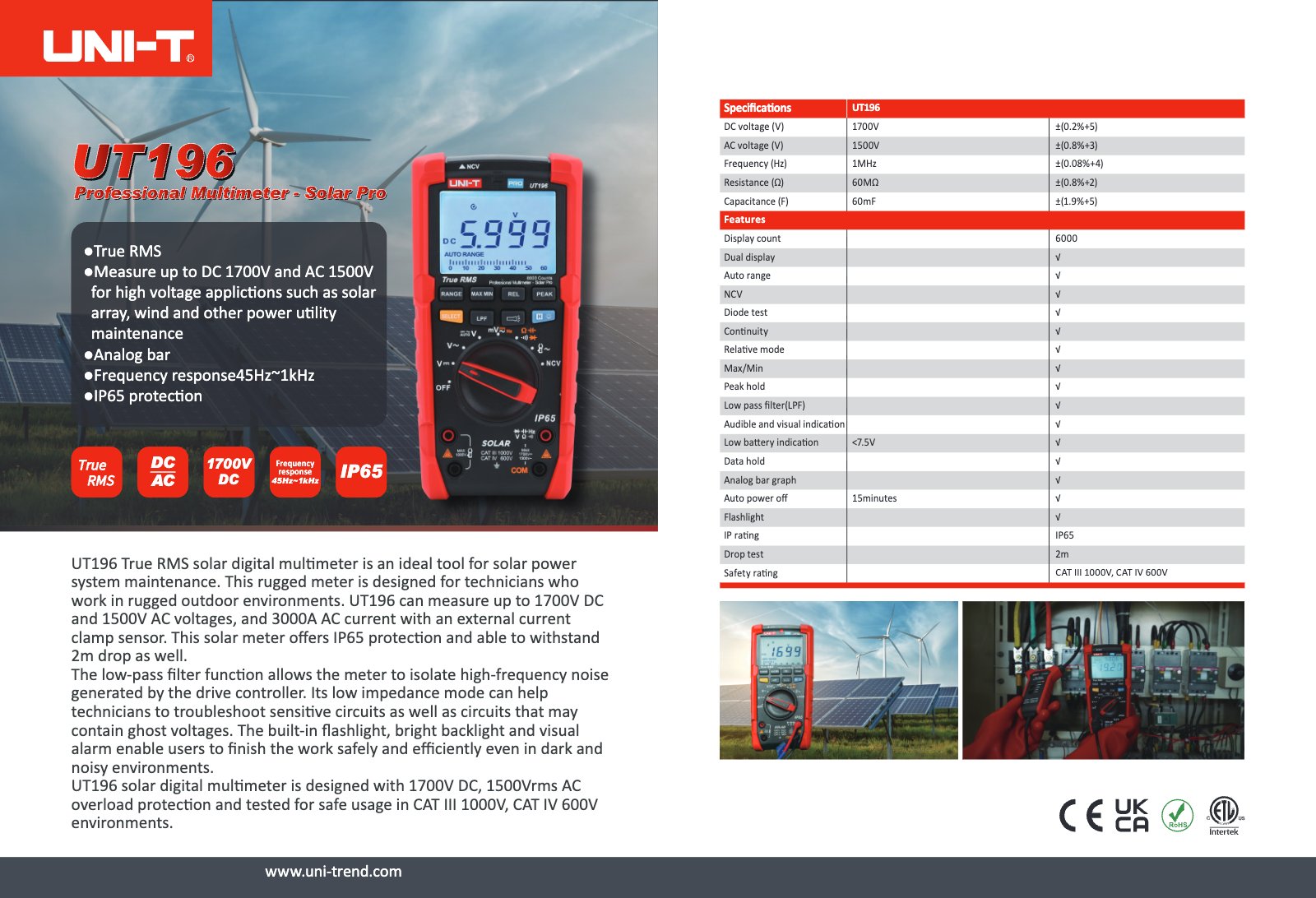

Flyer:	UT196 Data Sheet.pdf
Manual:	UT196 User Manual.pdf
