UNI-T UT503PV PV Insulation Resistance Tester 1000V

€247.90

Available, delivery time: 1-3 days

Product number:	202680
Manufacturer number:	UT503PV
EAN	6935750550304

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

Product information "UNI-T UT503PV PV Insulation Resistance Tester 1000V"

Main Product Features

Energized PV Testing: Safely measure photovoltaic insulation resistance on live strings up to DC 1000V without night-time shutdowns or array short-circuiting.
High Test Output Voltage: Supports insulation test voltages of 125V, 250V, 500V, and 1000V with measurement capability up to 4000 MΩ (4 GΩ).
Automatic AC/DC Voltage Recognition: Measure DC voltages from 5V to 1000V and AC voltages from 5V to 600V with high precision.
Comprehensive Safety Features: Automated rapid discharge function, stepping voltage, and high-voltage live warning indicators for maximum user protection.
Advanced Connectivity & Storage: Internal logging for up to 1,000 test records with seamless data export via USB cable or wireless Bluetooth app.
Rugged Job-Site Housing: Rated IP54 (with closed cap) and certified to CAT II 1000V / CAT III 600V for demanding solar and industrial environments.

Professional Photovoltaic Insulation & Commissioning Tester

The UNI-T UT503PV is an essential testing instrument engineered specifically for photovoltaic technicians, commissioning engineers, and industrial maintenance specialists. Traditional insulation testing on solar arrays often requires shutting down installations or waiting until nightfall to avoid short-circuit currents. The UT503PV eliminates this operational hurdle by allowing direct live insulation resistance measurements on energized solar strings up to 1000V DC.

Versatile Application Across Solar and High-Voltage Equipment

Beyond standard rooftop and utility-scale solar arrays, the UT503PV delivers reliable insulation diagnostics across battery energy storage systems (BESS), electric vehicles (EV), and general low-voltage commercial power systems. Its automatic AC/DC voltage detection enables smooth transitions between direct potential checks and deep dielectric diagnostics without switching probes or menus manually.

Uncompromising Safety and Full EU Compliance

Working around live DC solar arrays demands uncompromising safety protocols. The UT503PV incorporates high-voltage visual alarms, a gentle stepping voltage sequence to protect sensitive electronic components, and an integrated rapid automatic discharge function that dispenses residual electrical charges immediately after testing completes. The instrument strictly adheres to rigorous European Union safety and quality benchmarks, bearing CE conformity and fulfilling safety measurement classifications according to CAT II 1000V and CAT III 600V standards.

Efficient Logging, Analysis, and Mobile App Connectivity

Modern field testing requires streamlined reporting. With memory capacity storing up to 1,000 distinct measurements, operators can conduct extensive string-by-string insulation audits without taking immediate handwritten notes. Field data transfers effortlessly through the included USB connection or via real-time Bluetooth pairing with mobile devices, expediting verification reports for compliance records and client sign-offs.

Technical Specifications

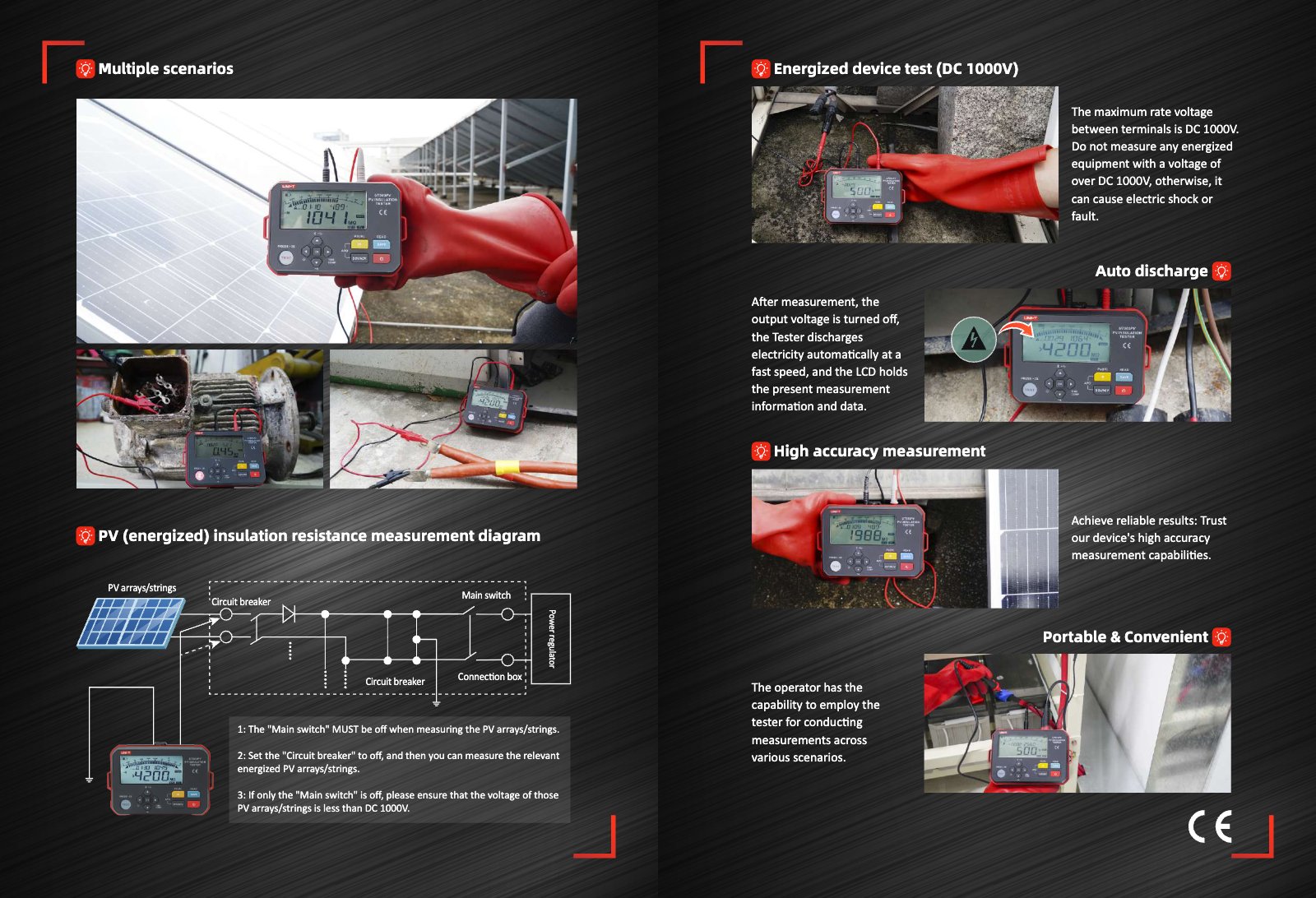

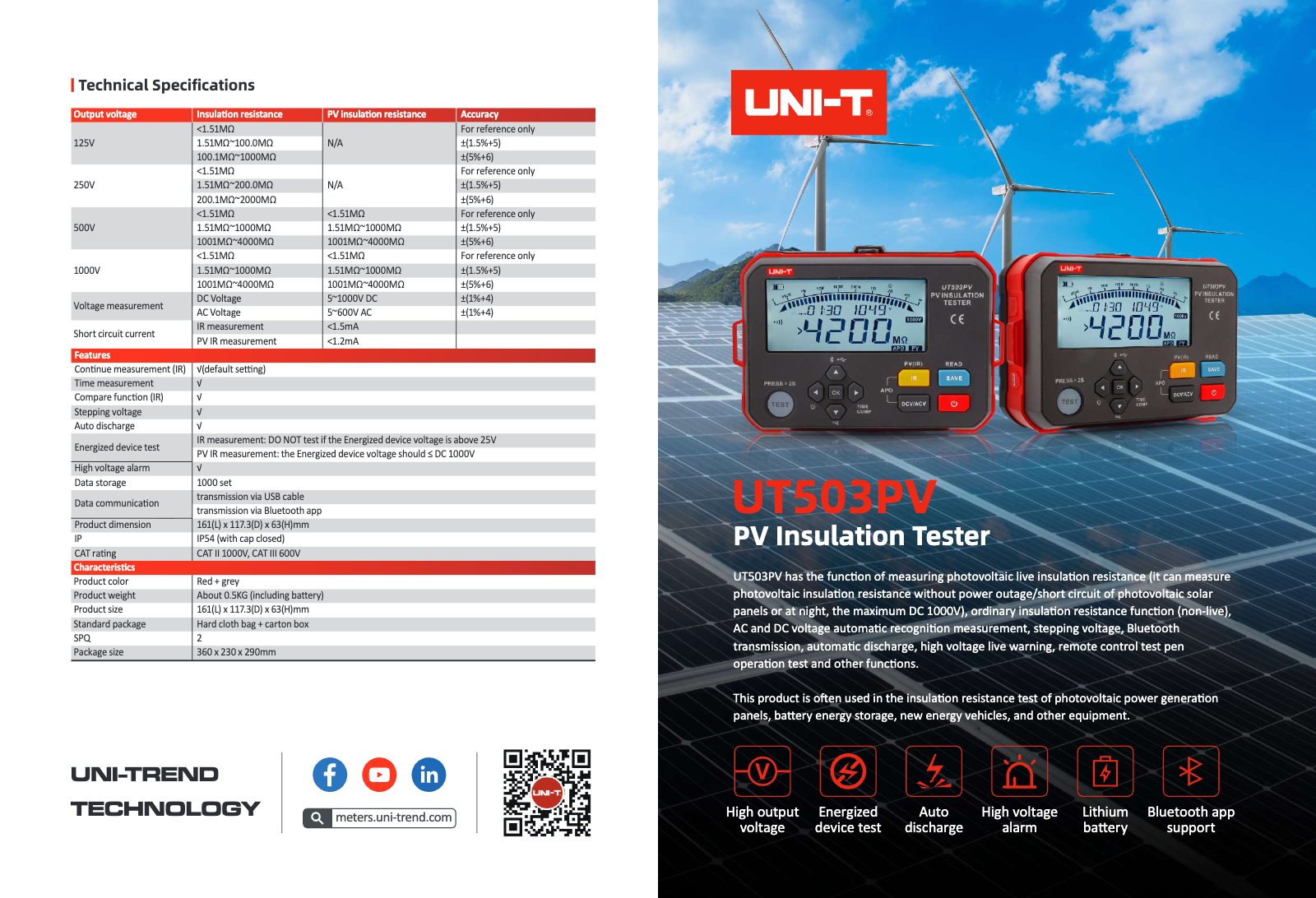

Parameter	Specification / Range
Insulation Test Voltages (IR)	125V, 250V, 500V, 1000V
PV Insulation Test Voltages (PV IR)	500V, 1000V
Insulation Resistance Range	Up to 4000 MΩ (4 GΩ)
DC Voltage Measurement Range	5 V to 1000 V DC (±1% + 4 digits)
AC Voltage Measurement Range	5 V to 600 V AC (±1% + 4 digits)
Short-Circuit Current	IR: <1.5 mA \| PV IR: <1.2 mA
Energized Device Testing (PV IR)	Up to DC 1000 V
Energized Limit for Standard IR	Do not test if device voltage exceeds 25 V
Safety Ratings & Norms	CAT II 1000V, CAT III 600V, CE Conformity
Ingress Protection Rating	IP54 (with protective cover closed)
Data Storage Capacity	1,000 test datasets
Data Transmission Interfaces	Bluetooth App connection, USB cable interface
Power Supply	6x AA (Mignon) batteries
Dimensions & Weight	161 x 117.3 x 63 mm \| Approx. 0.5 kg (with batteries)

Frequently Asked Questions

Can the UNI-T UT503PV test solar panels during daylight while energized?

Yes. The UT503PV features dedicated PV insulation measurement circuitry engineered to test energized solar arrays and strings up to 1000V DC without requiring panel short-circuiting or nighttime testing.

Is this instrument safe and certified for use within the European Union?

Absolutely. The UT503PV meets all essential European health, safety, and environmental protection requirements (CE conformity) and holds overvoltage safety categories CAT II 1000V and CAT III 600V.

How does the auto-discharge feature protect the operator?

Once an insulation resistance test finishes, the instrument automatically cuts the generated high voltage and rapidly bleeds off any stored capacitive energy in the cable or module string before displaying the final reading, protecting users against electrical shocks.

How do I extract stored measurement data for test certificates?

The tester holds up to 1,000 logs in internal memory. You can transmit these logs wirelessly to a smartphone or tablet via the Bluetooth companion app, or download them to a PC via standard USB cable.

Technical data

Product number:	202680

Downloads

Flyer:	UT503PV Datasheet_compressed.pdf
Manual:	UT503PV Anleitung Deutsch.pdf
Other documents:	UT503PV Manual-English.pdf?ts=1790258525

Manufacturer

Company Name
Uni-Trend Technology (China) Co., Ltd.

Address
No.6, Gong Ye Bei 1st Road, Songshan Lake National High-Tech Industrial Development Zone,
Dongguan City, Guangdong Province, 523 808, CN

Phone
(+86-769)85723888

EU Responsible Person

Company Name
P+C Schwick GmbH

Address
Bergisch Born 87A, 42897 Remscheid, NRW, Germany

E-Mail
info@schwick.de

Phone
+492191598280
