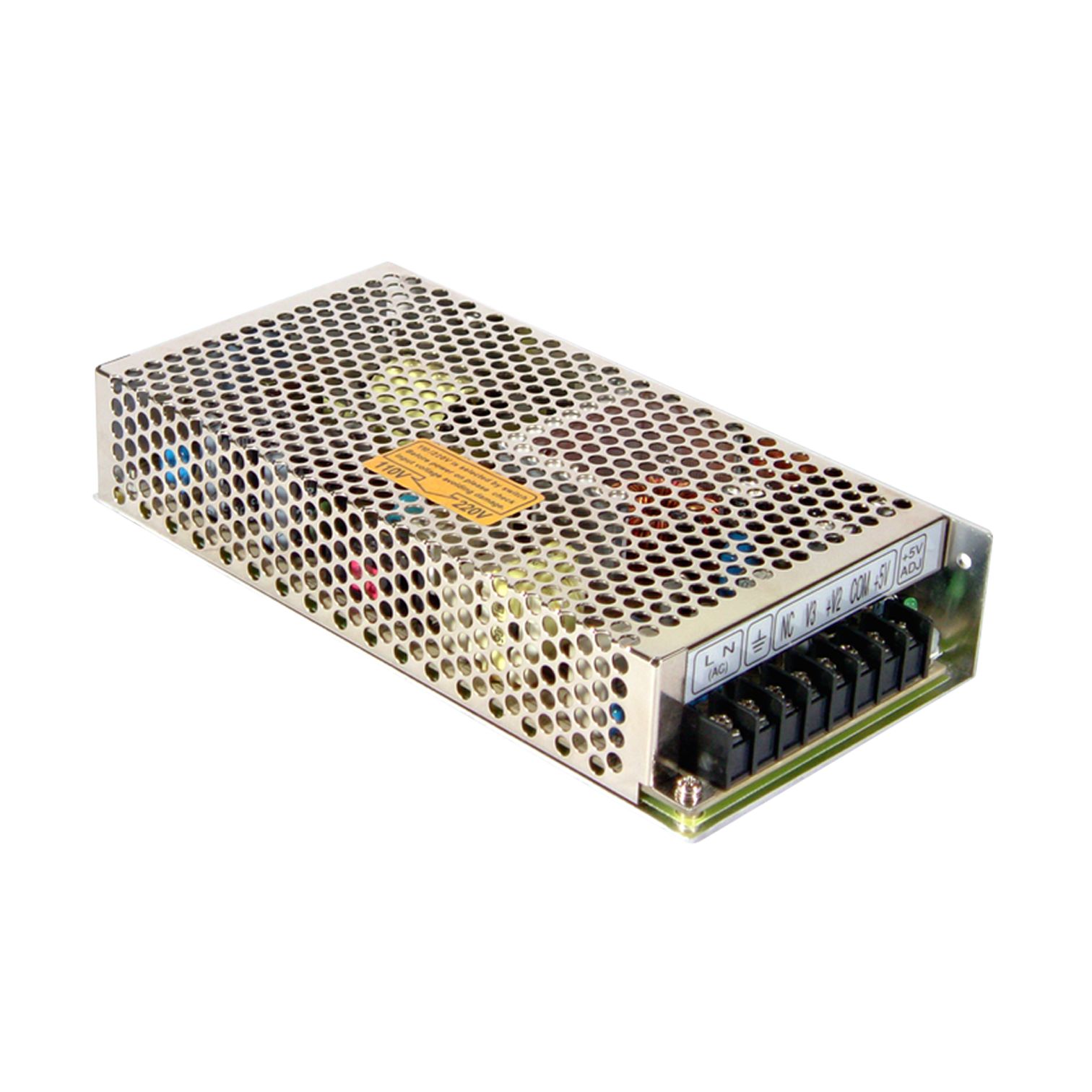

RT-125A Switching power supply, closed, 131W, 5/12/-5V, MEAN WELL
| Quantity | Unit price |
|---|---|
| To 49 |
€35.10*
|
| To 99 |
€34.52*
|
| From 100 |
€33.36*
|
Available, delivery time: 1-3 days
| Product number: | 100182 |
|---|---|
| Manufacturer number: | RT-125A |
Are you a reseller, need a large quantity or have a price target?
Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280
MEAN WELL RT-125 Switching Power Supply Series Features:
- closed design (case), screw terminals
- universal input
- overload protection by shutdown (hiccup), auto recovery
- protected against short circuit, overload, overvoltage
- long life 105°C electrolytic capacitors
- Safety standards: UL62368-1, EN62368-1
- EMC standards: EN55032 Class B, EN61000-3-2
- 3 years manufacturer warranty
Notice:
This product is intended for installation in terminal equipment.
For detailed technical data, please refer to the data sheet in the "Downloads" section.
Technical data
| Product number: | 100182 |
|---|---|
| Size: | 199mm x 98mm x 38mm |
| Protection: | Short circuit protection SCP, overcharge OPP, overvoltage OVP |
| Weight: | 0.7kg |
| Electrical Connection Type: | Terminal strip |
| Installation: | Mounting |
| Number of Outputs: | 3 |
| Efficiency: | 79% |
| Case type: | 902-RT |
| Output Current: | 12 (2...15)A |
| Output Voltage: | 5V DC |
| Power: | 131W |
| Power Supply Characteristics: | Module |
| Series: | RT-125 |
| Note: | Dieses Produkt ist für den Einbau in Endgeräten bestimmt. |
| Size: | 199mm x 98mm x 38mm |
| Weight: | 0.7kg |
Downloads
| Data Sheet: | meanwell-rt-125-spec-data-sheet.pdf |
|---|
