UT161B Digital Multimeter, 1000V, True RMS, CAT III 1000V, CAT IV 600V

Quantity	Unit price
To 4	€57.00*
To 9	€54.15*
To 24	€52.44*
To 49	€49.88*
From 50	€45.60*

Prices excl. VAT plus shipping costs

Currently not available (delivery time on request)

Product number:	202581
Manufacturer number:	UT161B
EAN	6935750516157

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

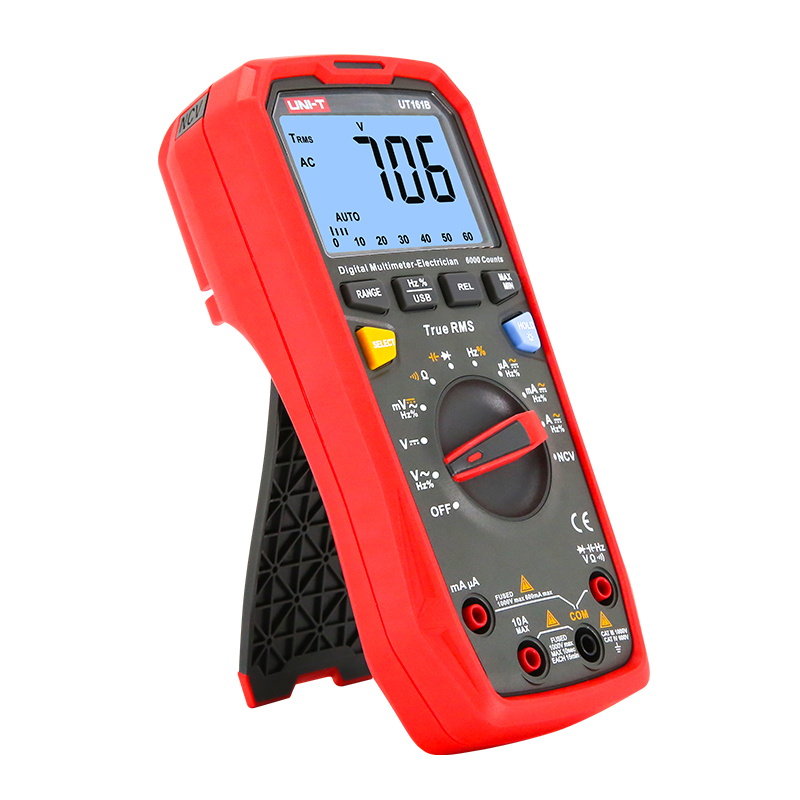

UT161B 1000V Digital Multimeter True RMS Description

The UT161B True RMS Digital Multimeter is a versatile and easy-to-use Multimeter from the new professional UT161 series from UNI-TREND. It can measure AC/DC voltage, AC/DC current, resistance, capacity, temperature, and duty cycle. The multimeter is equipped with a 6000 Count display with a backlight and an analog bargraph function, which ensures precise measurement read-outs, even in dark environments. Additionally, the UT161B can perform diode and continuity tests, and voltage detection without direct contact (NCV). It is also equipped with audible and visible alarm, which can provide warning when measuring high voltage, current or temperature. Other features include a data hold function with Max/Min/Relative modes and input protection. For further analysis of the measurement data, the UT161B is equipped with an USB communication port (USB cable is included), which can transfer the data onto your computer. Through the included software, the user can remote control the multimeter, archive and .XLS export the measured values with ease.

Consequently, the UT161B is an optimal choice for electronics laboratories, universities, ambitious hobbyists, or professional users.

The UT161B complies with all EU safety standards and has a CAT III 1000V, CAT IV 600V rating.

UT161B 1000V Digital Multimeter True RMS Features

6000 Counts
Auto Range with the option of manual range selection
True RMS
Data hold function with Max/Min/Relative mode
Measures AC/DC voltage, AC/DC current, resistance, capacity, temperature, and duty cycle
Display with Backlight
USB communication port (cable and software included)
Input protection
Diode and continuity test
NCV (non-contact voltage detection) function with audible/visual alarm
Gold-plated measurement leads
Scope of delivery: Gold plated test leads, USB cable, Manual
